Window balancer

Quick Learner from Santa Clara, CA

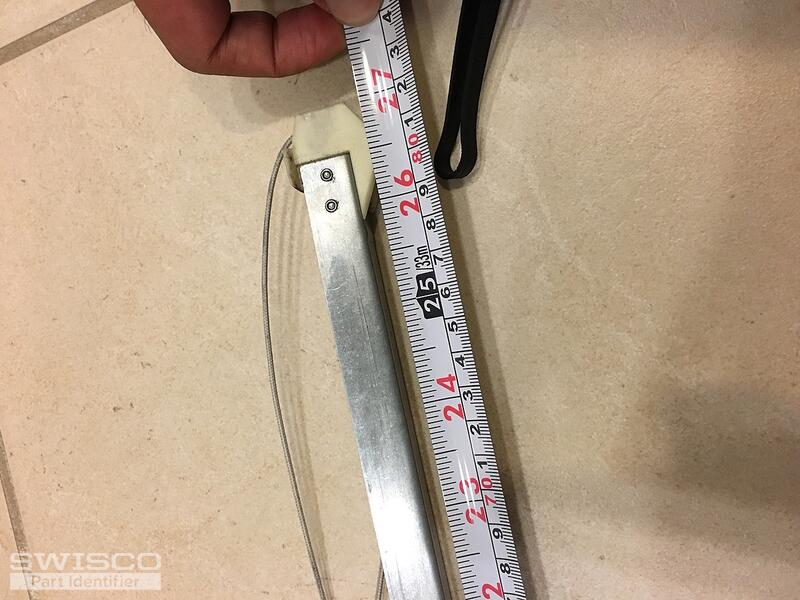

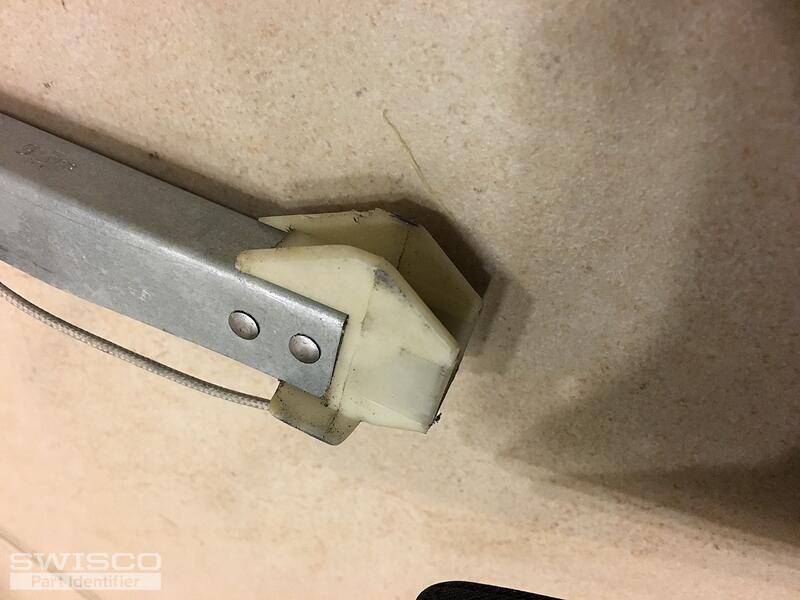

My balancer looks like an S380 but dimensions seem off. Also, the metallic part measures 26.5" but the shoe dimensions look different from the part on your site. Should I go for a 28" one?

This is for a Milgard window ordered in 2005.

5 user uploaded images
12 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We can replace this balance, but it will have to be specially made. No standard balance can replace this, I'm afraid. Before we start, can you show me a picture of the metal hook at the end of the cord? Can you also tell me what the stamp on the metal channel reads? Finally, how many did you need?

Quick Learner from Santa Clara, CA
Tom

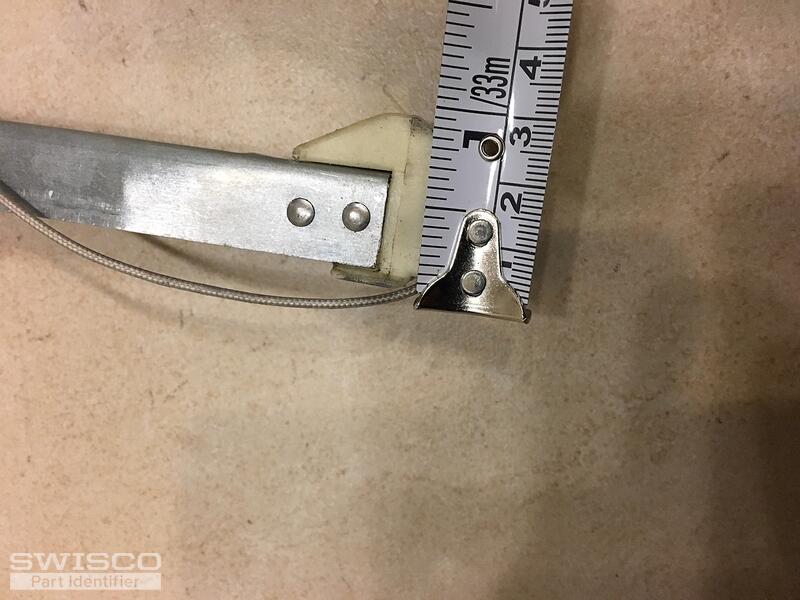

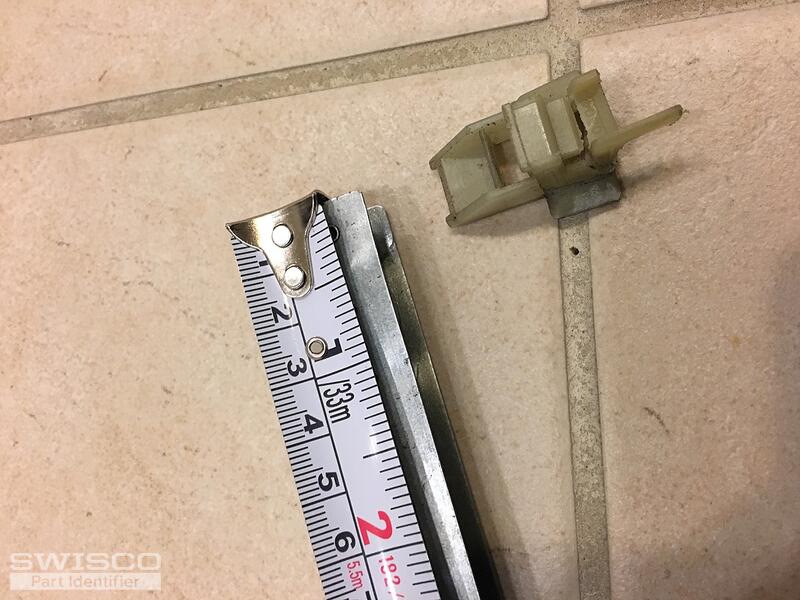

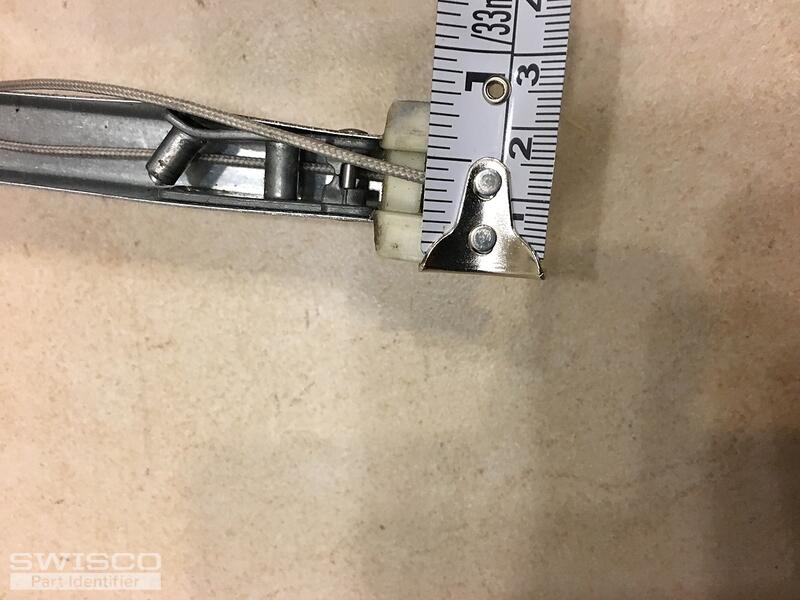

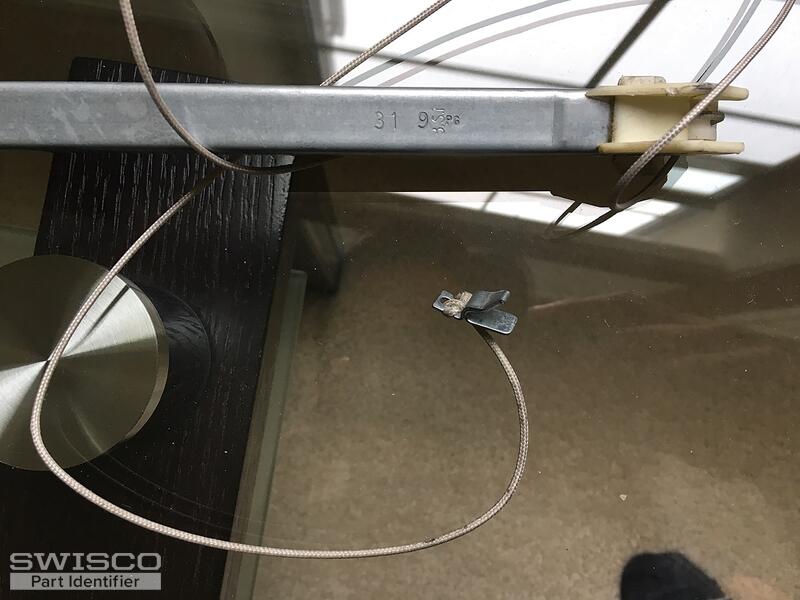

Picture attached for the hook and number.

I need 14 in total for 7 windows.
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for contacting us. Can you just confirm the length of the metal channel? These are typically 31-5/8" long, not 31-1/2".

Assuming it is 31-5/8", I just emailed you an order link for 14. Let me know if you have any questions.

Quick Learner from Santa Clara, CA

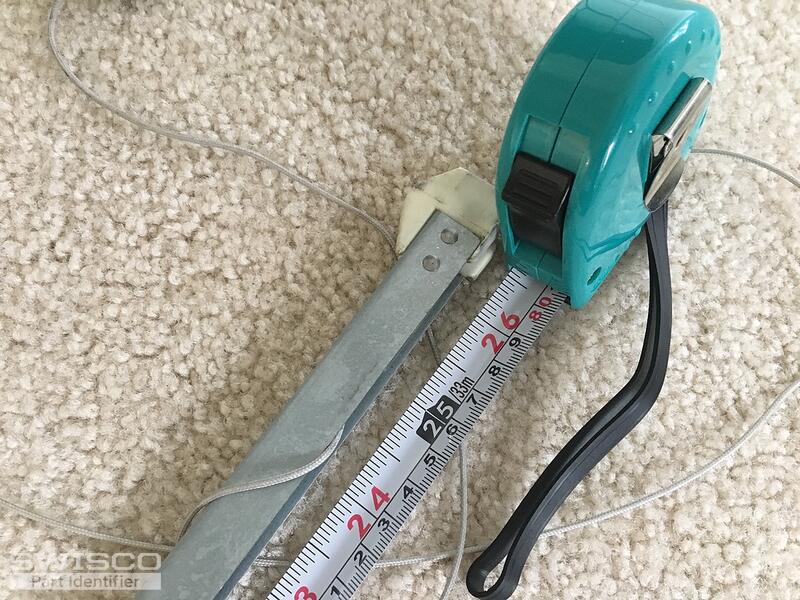

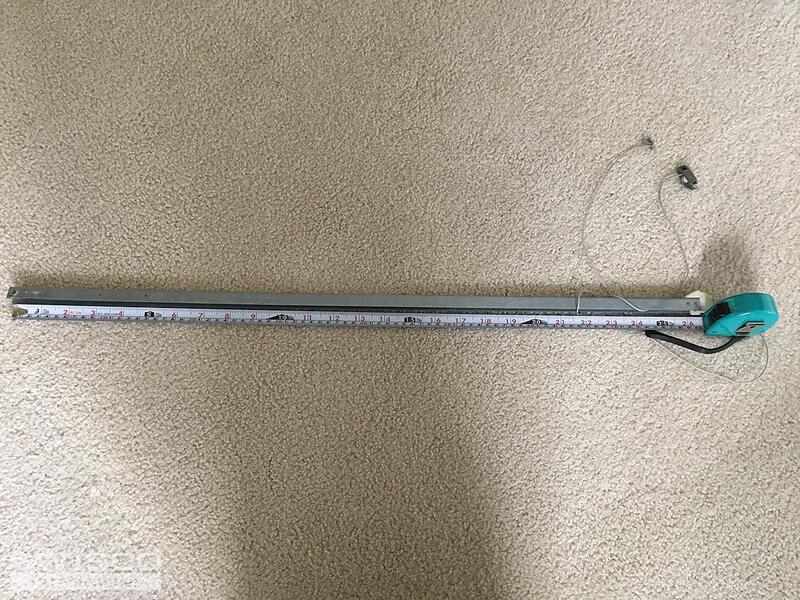

It's 26.5 not 31 inches. Please advise whether you've sent the link for the right part.

2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Huh, that's weird. Someone must have cut down a 31-5/8" long balance to fit this in your window.

We can provide you with a 26-5/8" balance. but you will need to tell me the exact weight of the sash. We can't go by your old stamp since that spring was calibrated for a longer balance.

Quick Learner from Santa Clara, CA
How do I weigh the sash?
Tom
Tom from SWISCO
SWISCO
Expert

You would need to remove it from the window and place it on a bathroom scale.

Quick Learner from Santa Clara, CA
It?s 35 lbs. do you need any other measurements or pictures?
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! Please give us a little time to look into this. That's pretty heavy for a 26-5/8" long balance, so we need to see if it's available.

Tom
Tom from SWISCO
SWISCO
Expert

Okay! We got everything ready to get started. I'll email you an order link and price quote for 14 of these right now. Let me know if you need anything else!

Quick Learner from Santa Clara, CA
Thanks! Just placed the order.
