Window balancer

Contractor from Bedroom

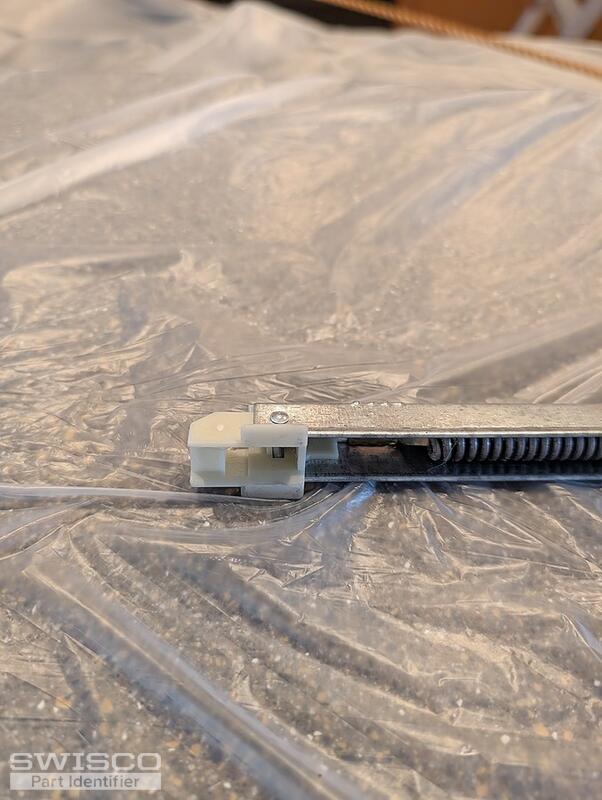

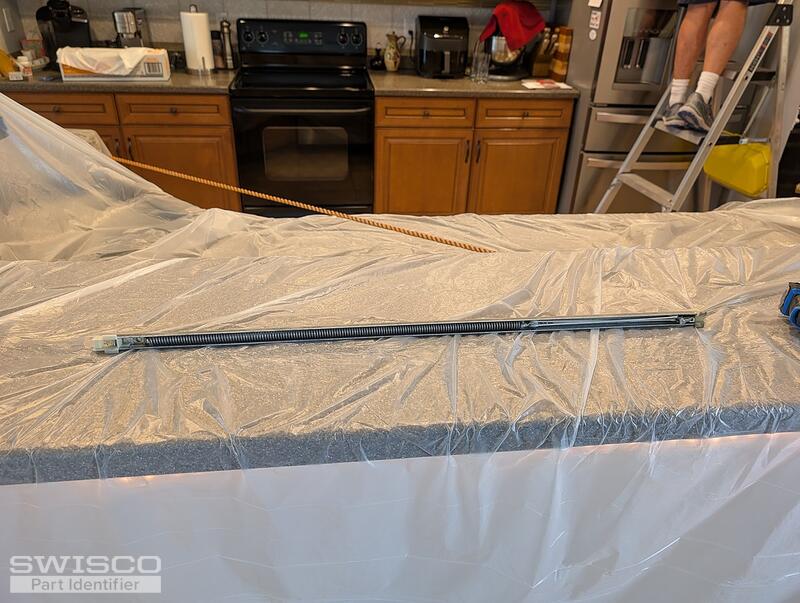

Please review photos at your earliest convenience. I am trying to confirm my window balancer series. Thank you in advance for your help. Much appreciated.
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either the S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to locate the stamp code on the metal channel to choose the corresponding spring strength option for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
