Window balancer

Question

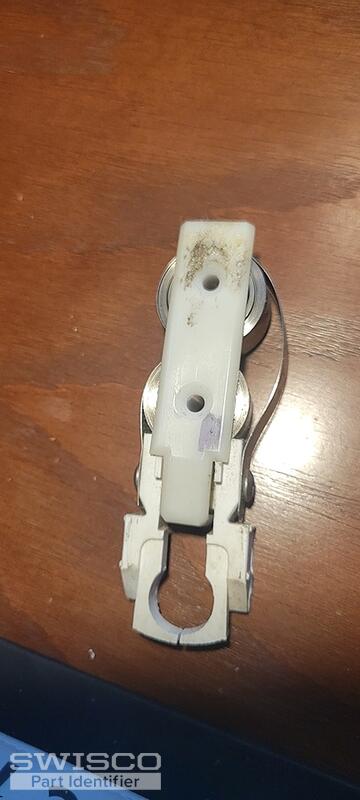

Trying to find something similar to this one. If you look close it has a 4 on one side and a 5 on the other.. We would definitely buy 2 if we figure out the correct one.

Jasmine · Accepted Answer

Your balances are assembled using the 15-180 Coil Balance Shoe and the Series 190 Coil Balances (secured to the shoe using the 33-073 screw). Since the springs are marked with a 4 and a 5, you'll need the S190-440 and S190-540.

You'll need the 15-181 Double Support Detent Clip and the 15-182 Balance Bushing to replace the coil balance support.

Be sure to double check and compare the specifications for the shoe.

Alternate image for 15-180
