Window balancer for Traco

Hello, thank you for posting,

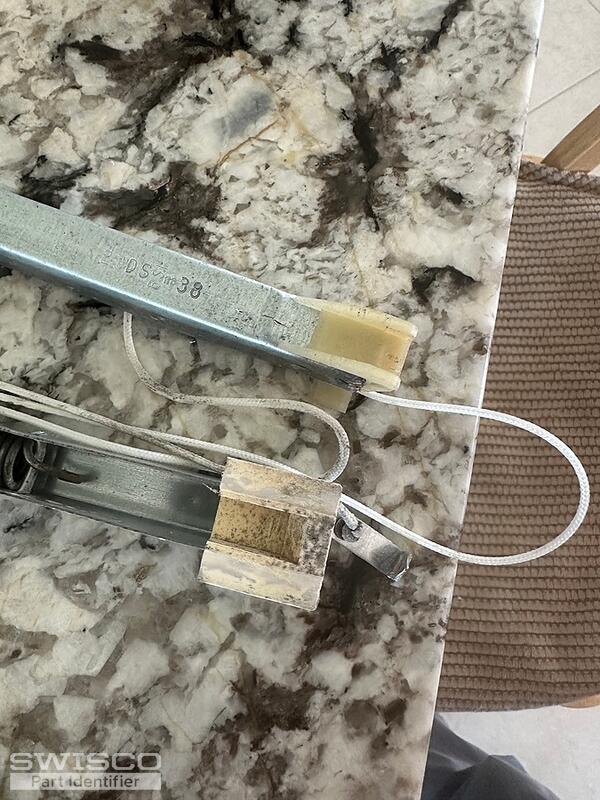

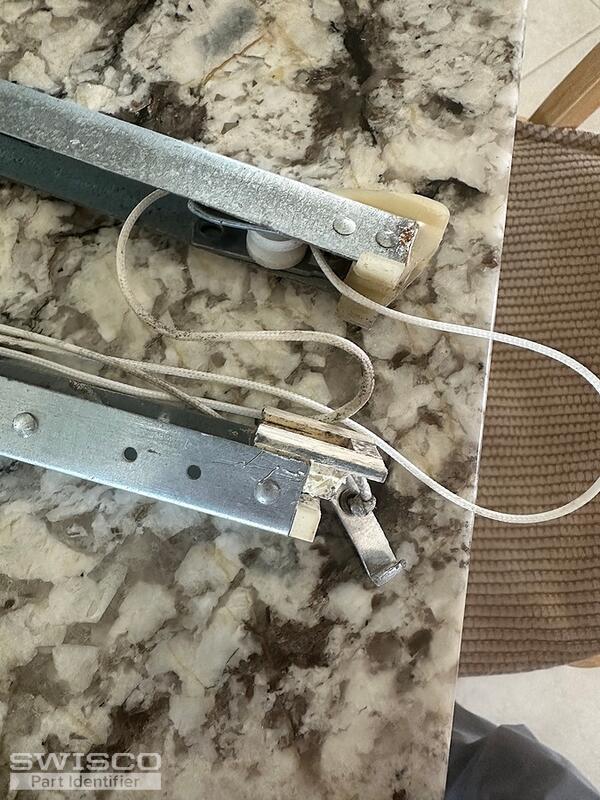

Your balance uses the 19-041 top attachment and a winged out bottom shoe. We can supply these balances, but it will require a custom order to assemble for you.

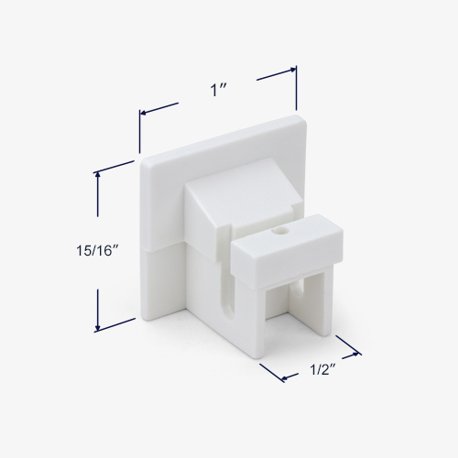

Dimensions for 19-041

We will need a few more details confirmed to move forward.

Can you confirm if the bottom shoe measures 1" or 1-3/32" deep?

Comparison of 15-004 and 15-005

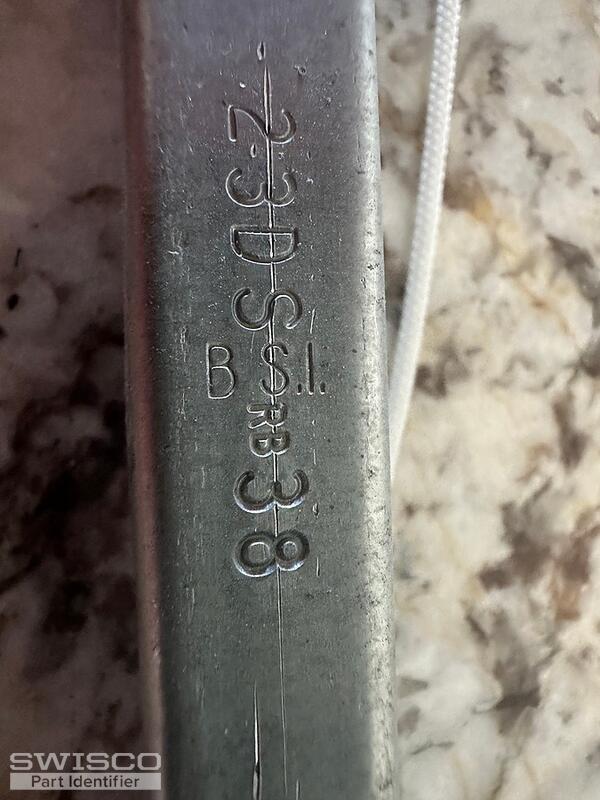

For the balance stamped with 23 DS 38, the 38 should indicate a 38 pound window sash. Are you able to confirm this? The sash will need to be removed and placed on a bathroom scale.

Can you also provide an image of the clip being referred to?

These balances will be custom and nonrefundable so we need to make sure all details are in order to determine a good fit. Thank you!
