Window balancer replacement part inquiry

A home owner from Aliso Viejo, CA 92656 says:
There is a marking of 730 DG

Overall length is 29 inch includes both end of plastic part

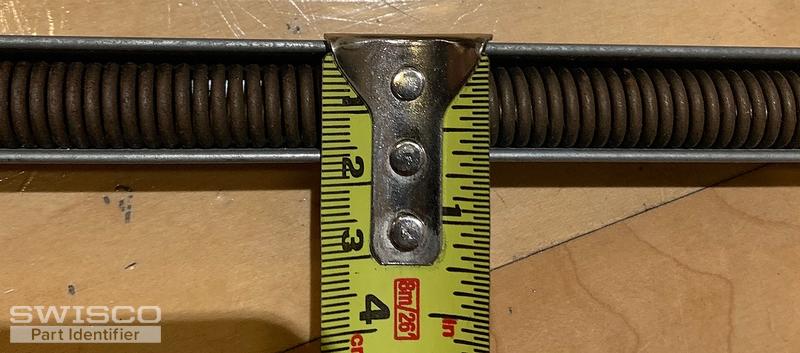

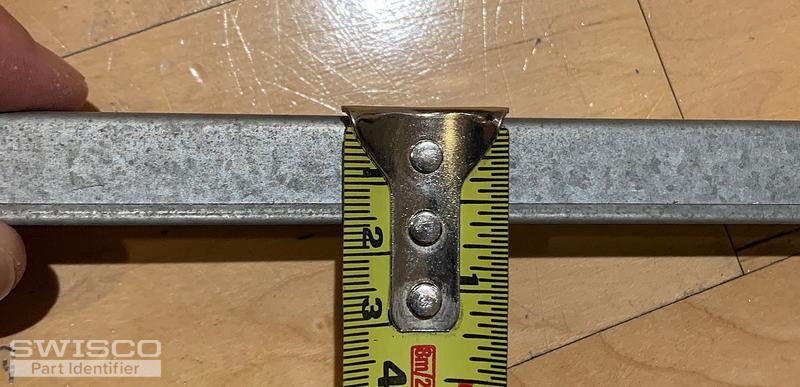

Thumbnail of the uploaded file named 0B9A1363-D1DB-4E6F-997A-73B399782506.jpeg
Thumbnail of the uploaded file named 58828BC6-8DCC-4F88-B0AE-66F1CD3F91A0.jpeg
Thumbnail of the uploaded file named 9BDB7588-709C-4C2A-AB4D-899D9B8288BA.jpeg
Thumbnail of the uploaded file named 6D92E779-2652-439A-A42F-5C9543D19D99.jpeg
Thumbnail of the uploaded file named 43F24BE4-638C-482D-B5E2-4A35D0ED5C85.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351-28, with a 15-002 bottom attachment, or S390-28, with a 15-001 bottom attachment. When we measure the length of channel balances, we measure the metal channel, not including the end attachments.

Take a look at the image below to determine which balance you'll need. You'll also need a 2730 spring strength option for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
