Window balancers

Quick Learner from Lancaster Pennsylvania

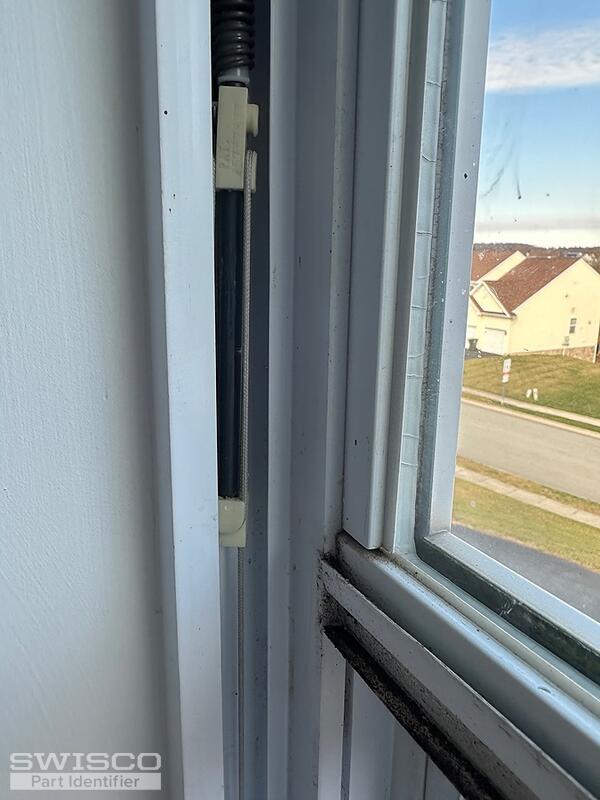

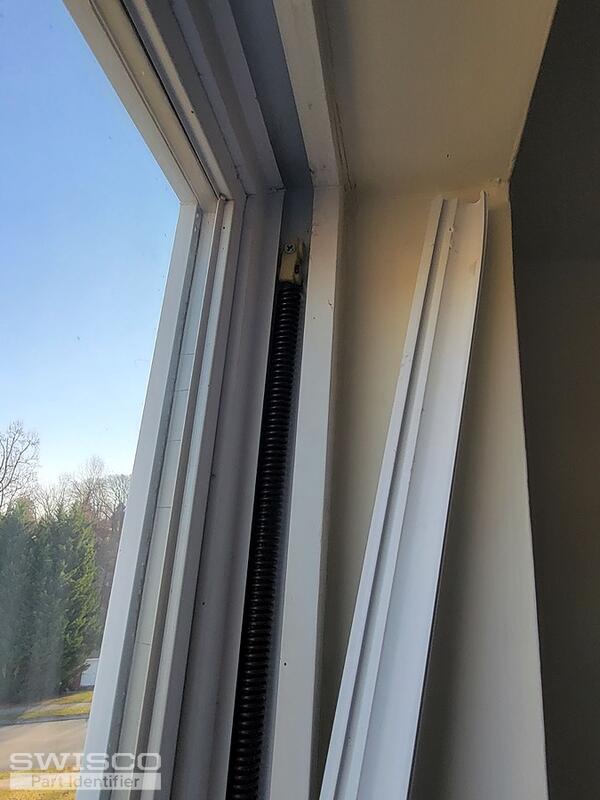

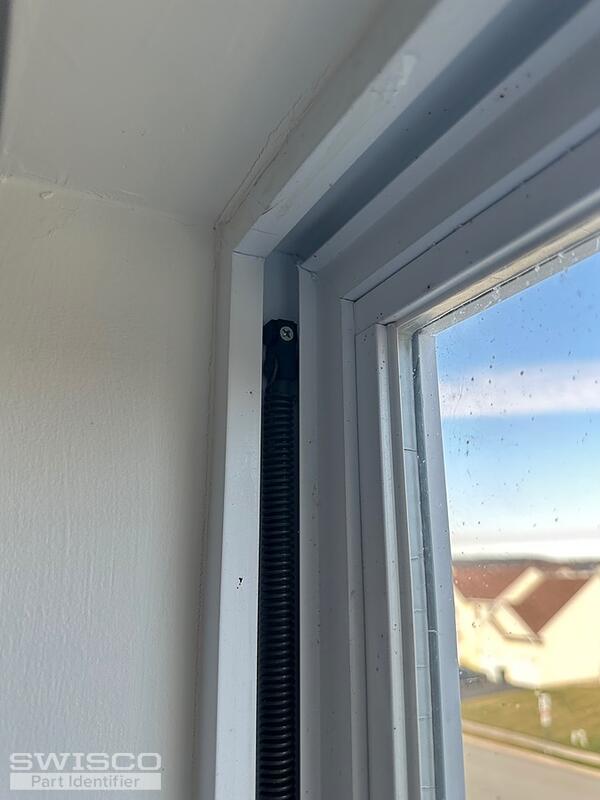

No known markings just not sure where to start looking. I have never seen a balancer like this.
4 user uploaded images
15 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

You have an old-style rod balance that is no longer available. We should be able to supply modern replacements but we would need to see the fitting attached to the end of the pulley cord of an undamaged balance to confirm. Thank you!

Quick Learner from Lancaster Pennsylvania

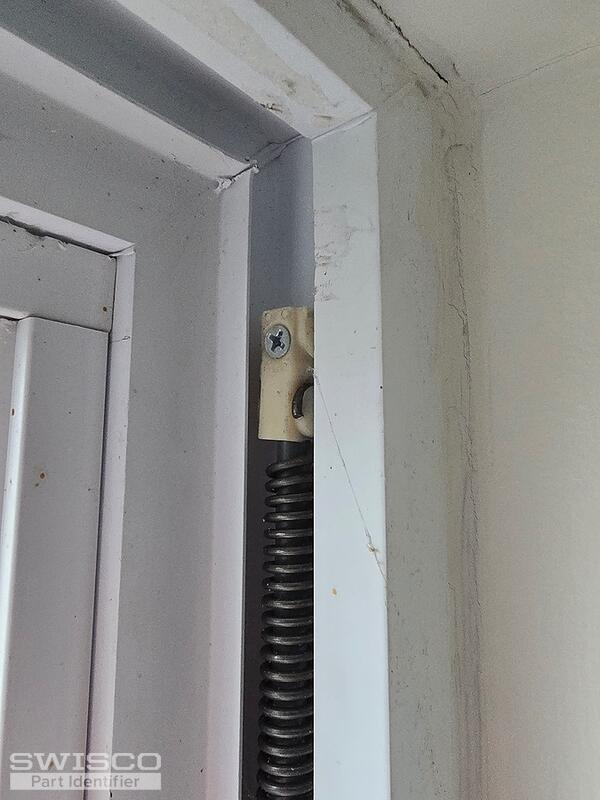

Here are a few more photos of the balancers to see if we can get replacements.
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. Unfortunately, your new photos did not come through. If you could resend them, we'd be happy to look into this for you.

Quick Learner from Lancaster Pennsylvania
How about this time?
Casey
Casey from SWISCO
SWISCO
Expert

Unforutnately, there seems to be an error with our system preventing your photos from coming through. We're working on it but, in the meantime, we'd appreciate it if you could send your photos to help@swisco.com with reference number D347741.

Quick Learner from Lancaster Pennsylvania

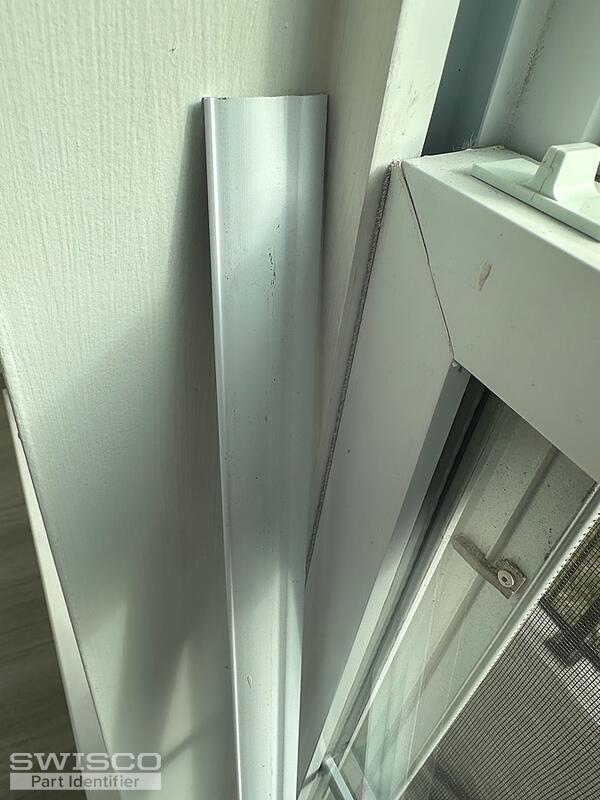

I took some more photos. Just wondering if I still follow the same directions as the photo since some of the parts and the may they attach are different? Also do you have the vinyl cover pieces like the one in the photo?
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Great! These photos help but we'll still need to see the attachment at the end of the pulley cord to confirm the correct replacement. Unforutnately, we do not carry replacement balance covers but a local hardware store may be able to supply them.

Quick Learner from Lancaster Pennsylvania

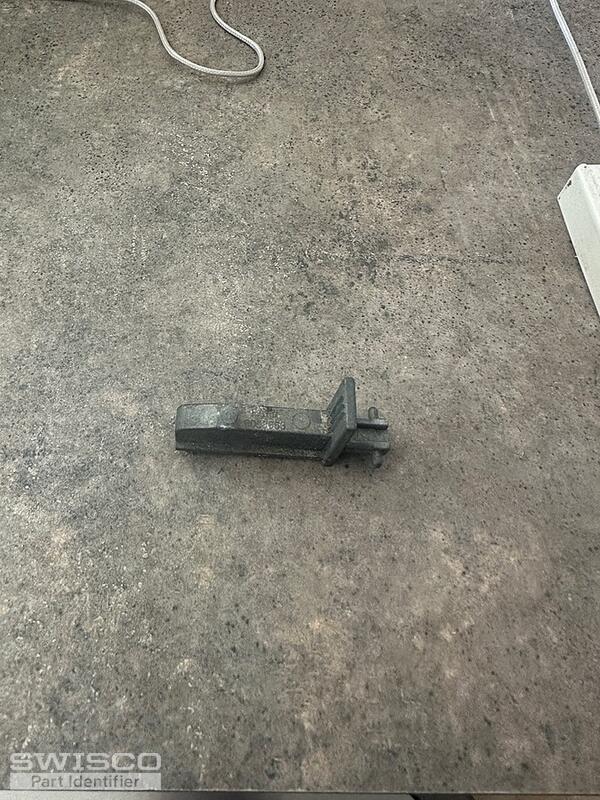

This is the pivot block and pivot pin.
Casey
Casey from SWISCO
SWISCO
Expert

Unforutnately, your photos did not come through again but you can send them over to help@swisco.com with your reference number. We apologize for the inconvenience.

Quick Learner from Lancaster Pennsylvania

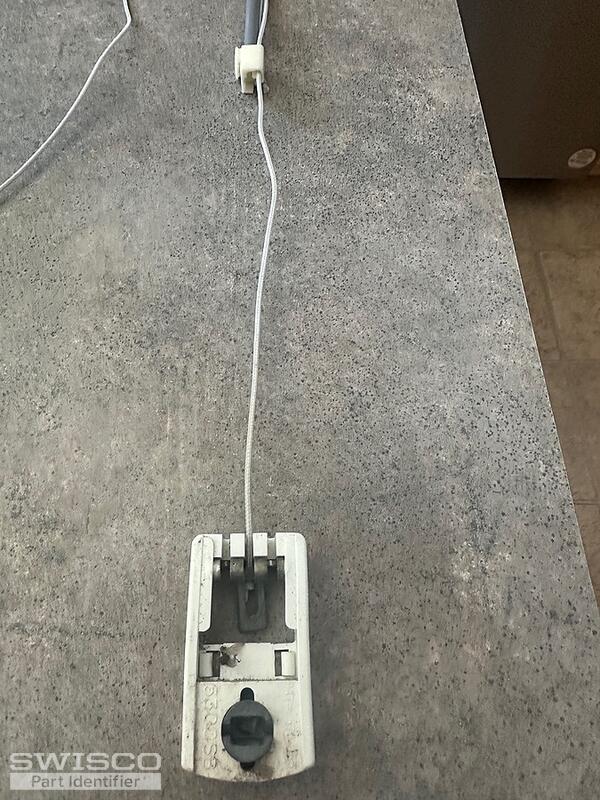

Pivot block and pivot pins
Quick Learner from Lancaster Pennsylvania
Pivot block and attachment
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Perfect! Your balances would be replaced by the S770 channel balances. You'll need to measure the length of an intact balance and weigh the window sash they support to choose the correct specifications for your replacements.

Close up view of the Series 770 balance top.
Close up view of the Series 770 balance top.

Close up view of the Series 770 balance bottom.
Close up view of the Series 770 balance bottom.

We did carry a replacement for your pivot shoes at one time but, unfortunately, it was discontinued and is no longer available. If you need new pivot bars, see the 26-271 below.

Alternate image for 26-271
Alternate image for 26-271

Quick Learner from Lancaster Pennsylvania
So as long as my pivot blocks and pivot pins are good they will work with the s770 channel balancers?
Casey
Casey from SWISCO
SWISCO
Expert

Yes, the balances should work with your original pivot shoes since the new balances use a similar terminal clip to the old-style rod balances. You'll just need to determine the length and spring calibration. The pivot bars will also work as long as the dimensions match your original part.
