Handy Person from Reading, PA

Jun 14, 2023 6:12 pm

I need to replace the pair of balancers on the vinyl window pictured. The lower window sash window is a double pane 38" high by 29" wide. The balancer is 1 1/4" wide and the travel distance is about 34". Do have anything to replace the right and left side? It is a double coil balancer on each side.

2 user uploaded images

5 Replies

Casey from SWISCO

Jun 15, 2023 11:41 am

Hello,

We'd be happy to help but we would need to see photos of your coil balance assembly removed from the window, including the pivot shoe that the coils anchor to, to compare to our inventory. See the videos below to help you through the process. Thank you!

Handy Person from Reading, PA

Jun 15, 2023 3:09 pm

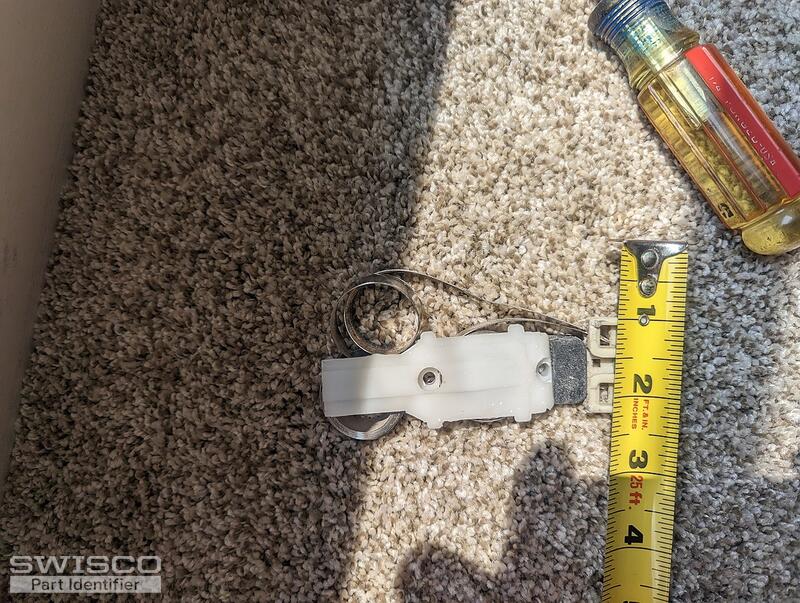

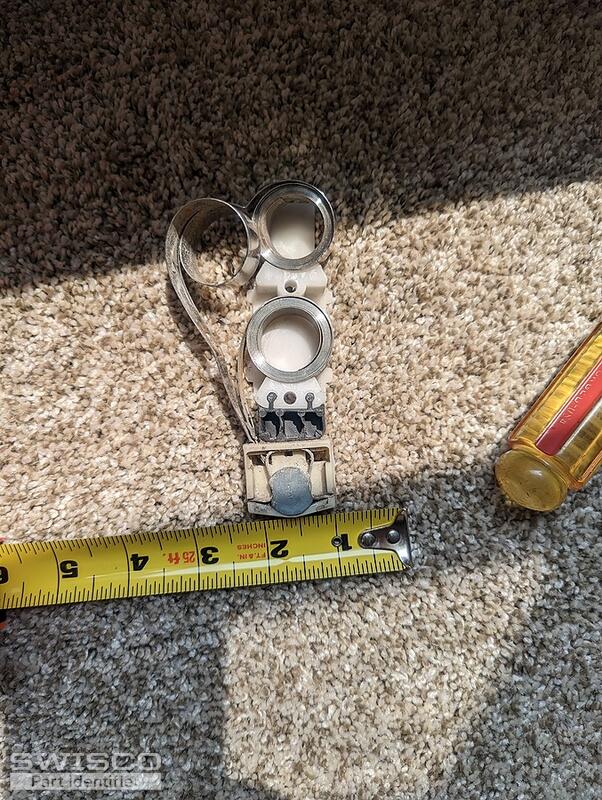

I will be sending an additional e mail with more pictures. I found numbers on the coil springs.

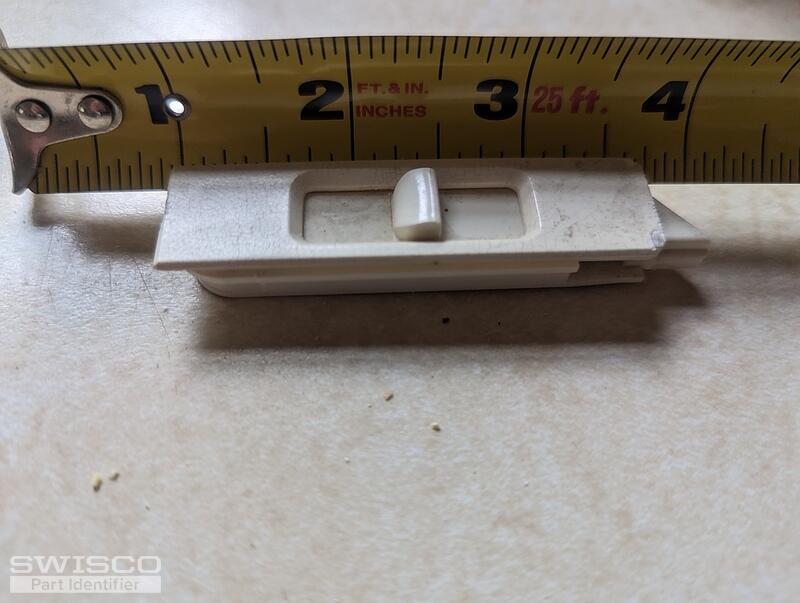

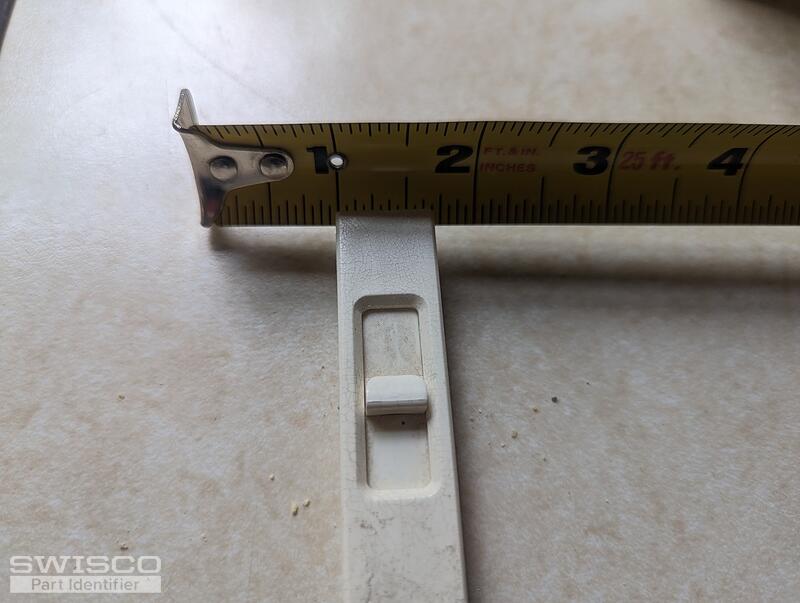

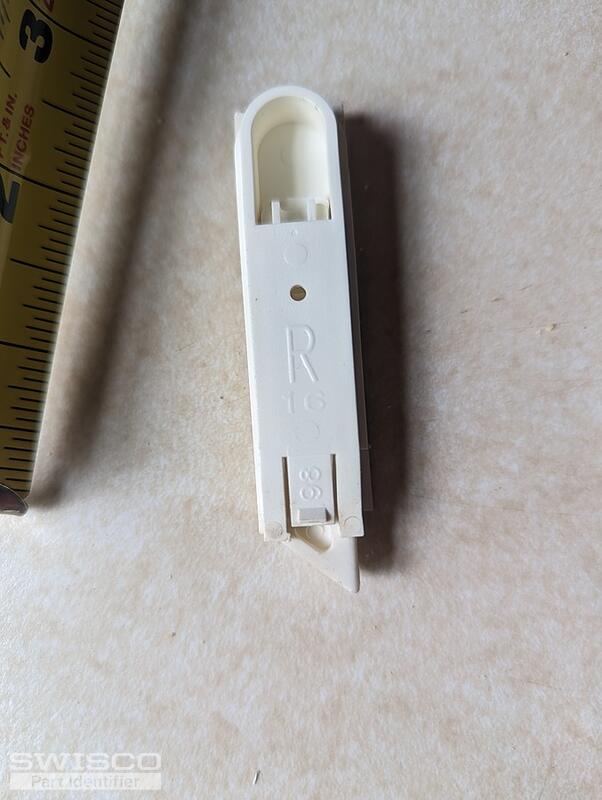

The top coil was Omega 6.5# 33.5 and the bottom coil had a 5 on it. I need a right and left side along with the shoes. I also need a right and left window latch as shown. The homeowner tried to tilt the windows for cleaning and had no idea what to do. Broke several items.

Thank you,

Todd

5 user uploaded images

Handy Person from Reading, PA

Jun 15, 2023 3:11 pm

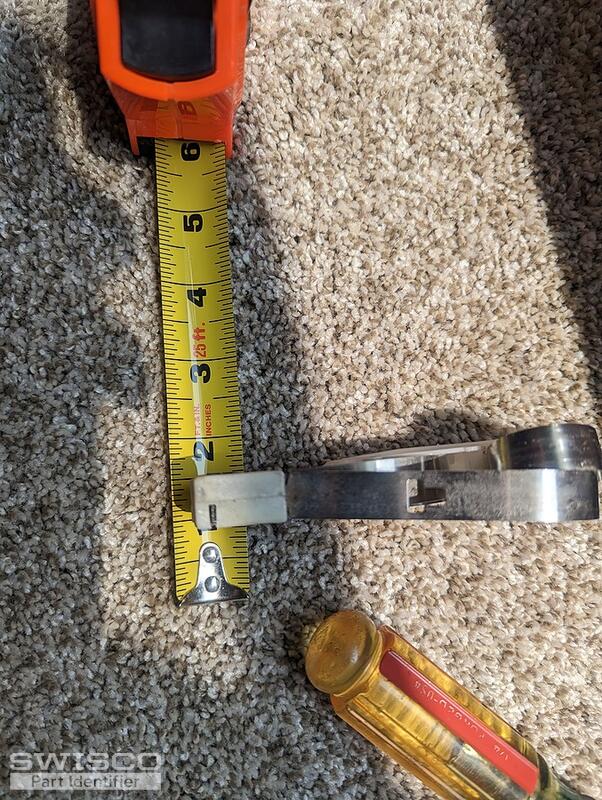

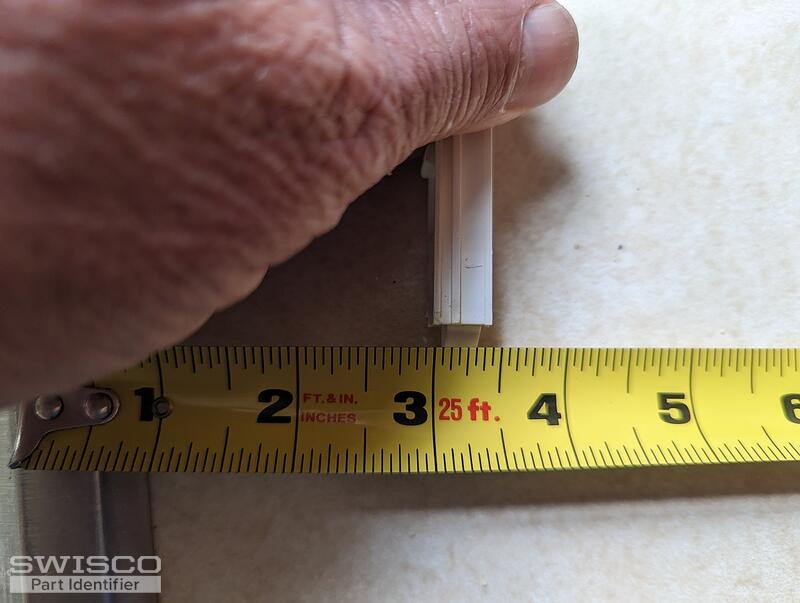

Additional pictures and I would need rights and lefts for each item

3 user uploaded images

Casey from SWISCO

Jun 16, 2023 9:31 am

Hello,

I would recommend starting by comparing the specifications of the 26-243 and 26-244 tilt latches to yours. As for your coil balance assembly, it's hard to be sure since most of your photos show the back of the pivot shoe but what I can make our resembles our 15-111, which uses either the 1/2" thick Series 160 or 3/8" thick Series 165 coil springs. Take a look and let us know if you have any other questions.

Alternate view of 26-243

Profile view of 26-243

Alternate image for 15-111
