Pat# 5.353.548 for one of the balances.

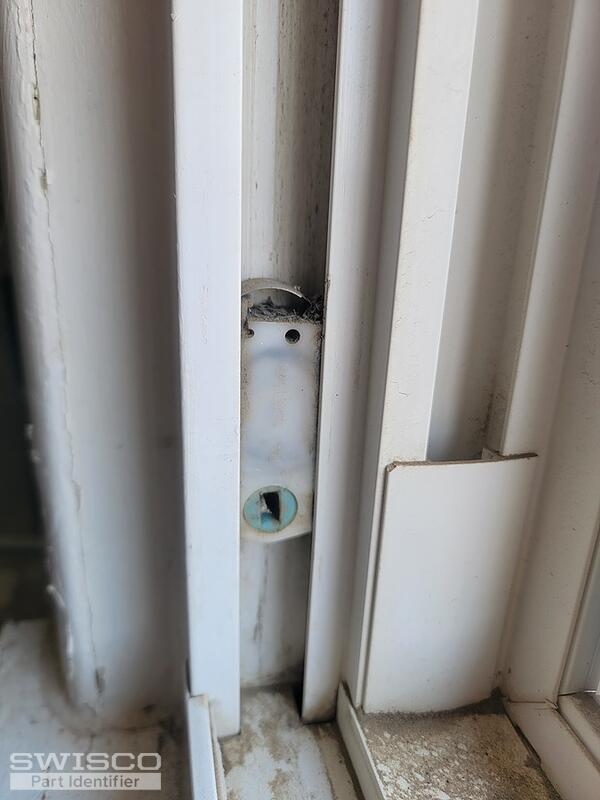

Both window balances are broken. The single metal band is snapped in half on both sides.

5 user uploaded images

6 Replies

Emily from SWISCO

Jul 19, 2024 10:29 am

Hey there!

Thanks for reaching out to us. Check out the 15-087. This pivot shoe appears to be the one you need. The Series 180 are the compatible coil springs which are sold separately. Take a look at the specifications and let us know if you have any questions.

Detail of 15-087

Home Owner from Byers colorado

Jul 19, 2024 11:11 am

Awesome! Thank you guys! I will get some ordered up! I am not sure of the weight on the coil. Should I remove both pieces, uncool them and look for a weight rating?

Emily from SWISCO

Jul 19, 2024 11:27 am

Yes! The tongue of the spring should have a stamped weight code. If not, you'll have to weigh the window sash on a scale and divide the weight by the total number of springs used in the window.

Home Owner from Byers colorado

Jul 19, 2024 12:03 pm

Sounds like a plan! I will check later after work! Thank you so much for your help! I greatly appreciate it and will keep you posted if I run into issues!

Emily from SWISCO

Jul 19, 2024 1:10 pm

No problem, I'm very happy to be of help. I'll be here if you need anything!
