Window balances

A home owner from Sam Francisco says:

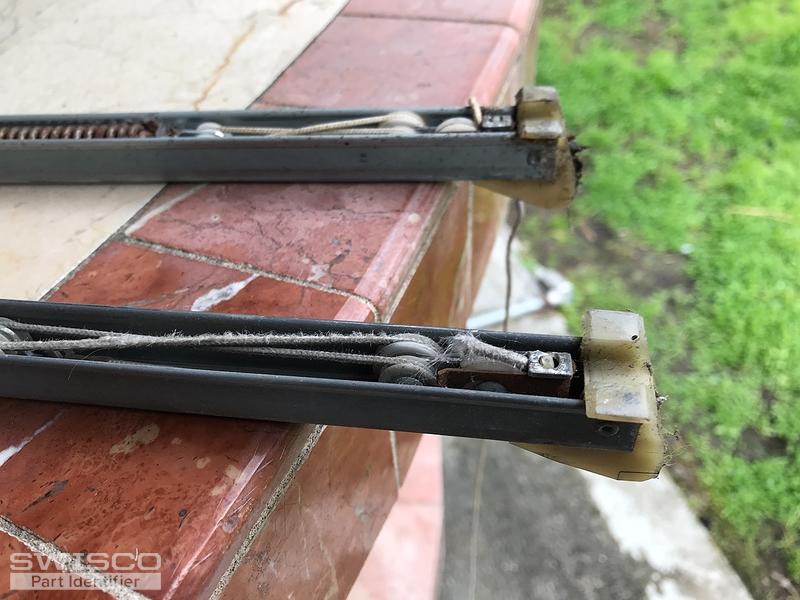

Hi. I need to purchase replacement balances for my windows. These are the parts that need to be replaced. The one marked 32 4 EN is for a window weighing 32 pounds. The other is for a window weighing 19 pounds. Can you tell me which part i need to purchase?

Pam

Thumbnail of the uploaded file named 925A3E65-8704-4457-9958-7669DF703E07.jpeg
Thumbnail of the uploaded file named DE7A6855-8D51-4C4D-94F1-98F2640663CF.jpeg
Thumbnail of the uploaded file named 590FF136-ECD7-41D6-B5D6-52EFB5B2A880.jpeg
Thumbnail of the uploaded file named A52B82CD-39F2-4CE9-A4CD-2C1F5B382277.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3240 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
