Channel Balance ID

A contractor from Charleston says:
June 29, 2021
I would need 4 of these balances. I need to go back by the house today as there are smaller windows in the bathroom that need balances as well. I will get the sizes of them as well then order them all together.

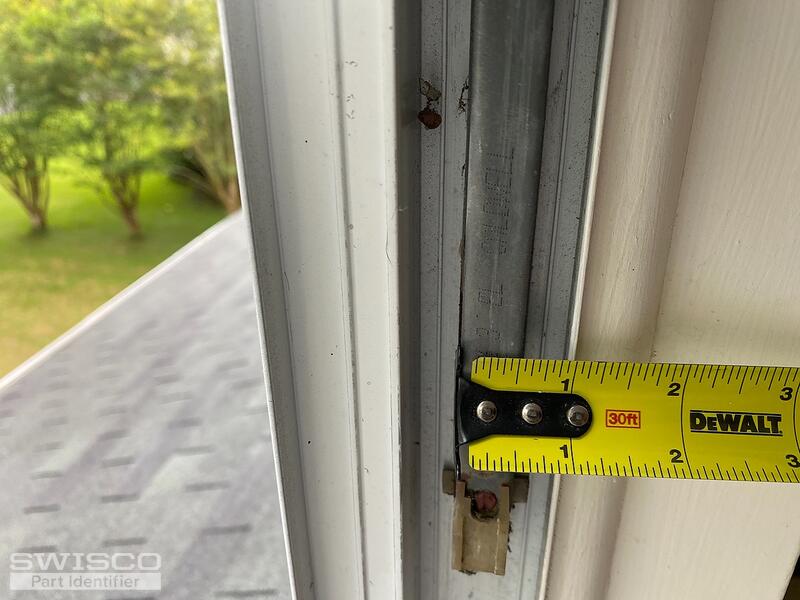

Thumbnail of the uploaded file named 179D1FC0-E726-4DBD-A309-4C014394429B.jpeg

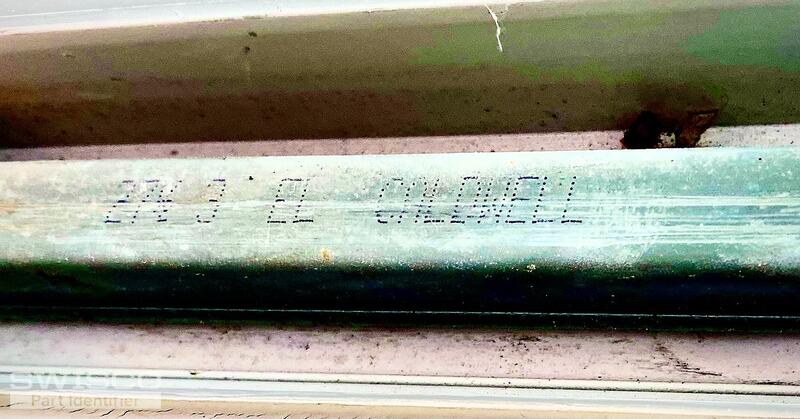

Thumbnail of the uploaded file named 34E8B499-5F08-4157-BB18-72566E7BDE71.jpeg

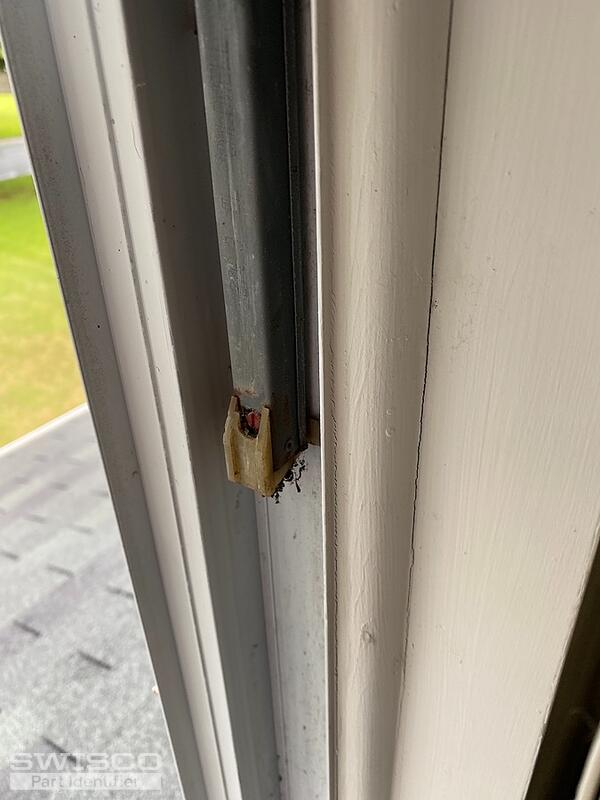

Thumbnail of the uploaded file named F91AE0E4-07D7-4D0F-A450-9A93D2644898.jpeg

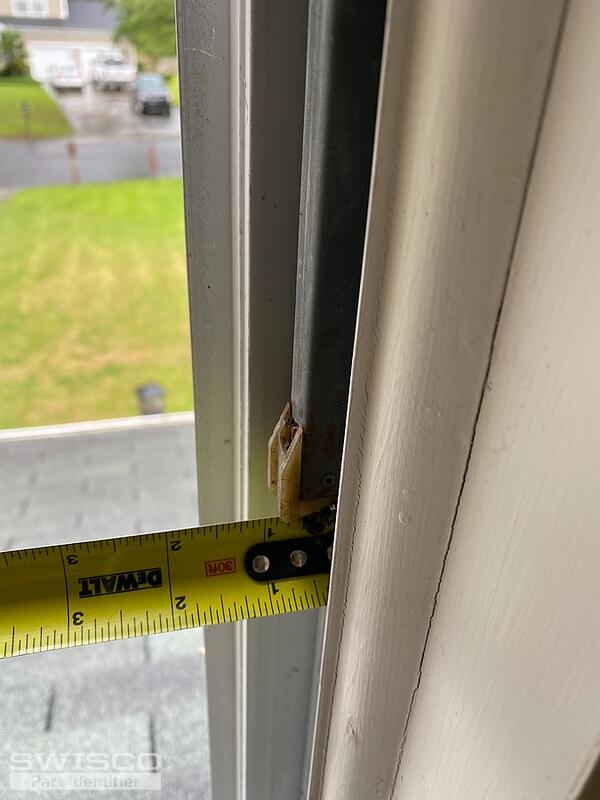

Thumbnail of the uploaded file named 5C43C182-A5C1-41BD-A858-EEEECB409C16.jpeg

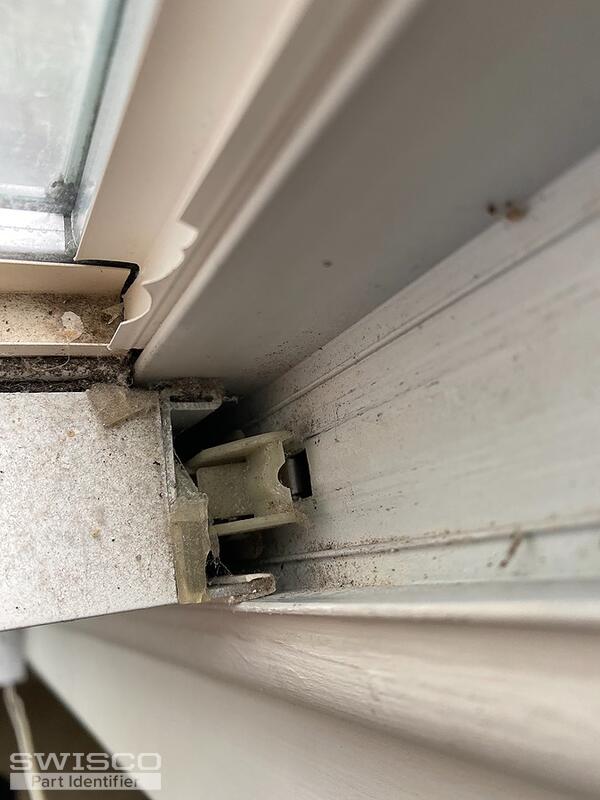

Thumbnail of the uploaded file named EB2E8887-AECE-4840-931C-CB0006C7DFCF.jpeg
Profile picture of Paul
Paul from SWISCO responded:
June 29, 2021

Perhaps I can be of some assistance. Looks like you have a Rollyson window that uses our 18-118 Top Sash Guides. We believe your metal channel balance length is 28"; please confirm. If so, see our S380-28. Choose a stamp option of 2730. Please compare the dimensions and specifications before ordering.
6' Rollyson Snap-in
6' Rollyson Snap-in
55-158-6
$9.94
Rollyson Clear Top Sash Guide Pair
Rollyson Clear Top Sash Guide Pair
18-118
$3.97
28" Series 380 Channel Balance
28" Series 380 Channel Balance
S380-28
$10.97
