Window balances pics

Quick Learner
Stamp 28 3
Metal part measures 28.5"
5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

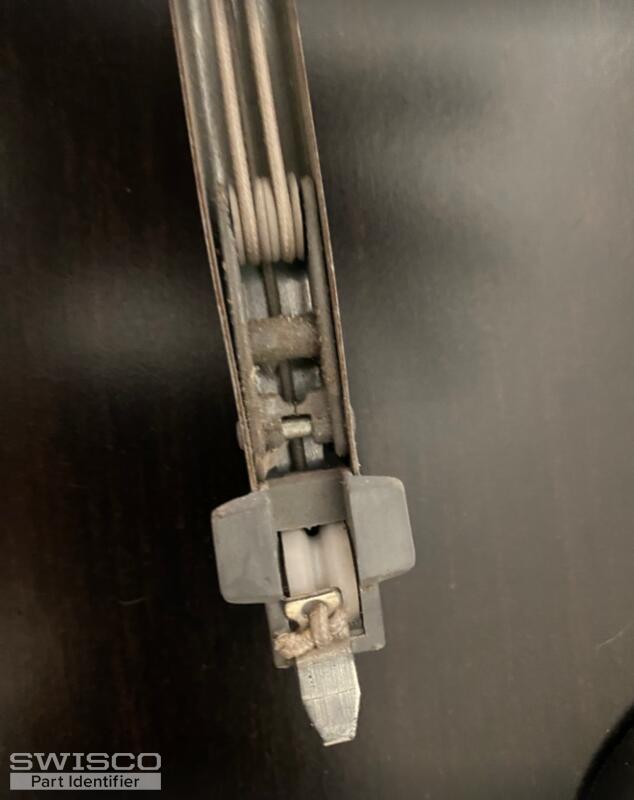

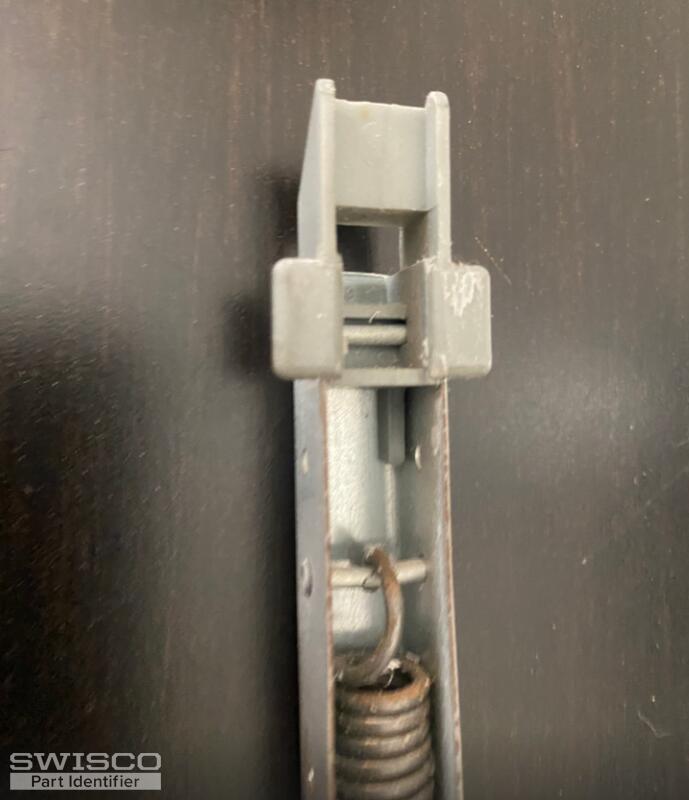

Thanks for reaching out to us! We can absolutely make this balance for you, but it will have to be a custom order due to its configuration. What you have here is a special "extended travel" channel balance, named for its unique block and tackle system with an extended cord.

Thankfully, your photos tell me just about everything we need to get started. I just needed you to clear up a few details before we get started.

First, can you verify the length of the metal channel? Based on your stamp and configuration, it ought to be 28-5/8".

Can you also tell me how many you needed altogether?

Once I have those two points of information, I'll email you a purchase link and price quote that you can use to place an order on our site.

Quick Learner from San Diego CA
The metal lenght is 28 on the nose. please quote me on custom i suppose and time to make/deliver. STAMP IS 28 3

milguard gave me a part # of BA0792BT - not sure if that is correct tho. SEE PHOTOS.
Tom
Tom from SWISCO
SWISCO
Expert

I'm sorry to say that this balance type isn't available in 28" lengths. The metal channel is always made in 5/8" length increments as a rule. I highly recommend triple checking that measurement just to be 100% sure.

If you are positive that your metal channel is only 28" long, then that's not size that we can supply.
