Window ballance

A handy person from 91326 says:

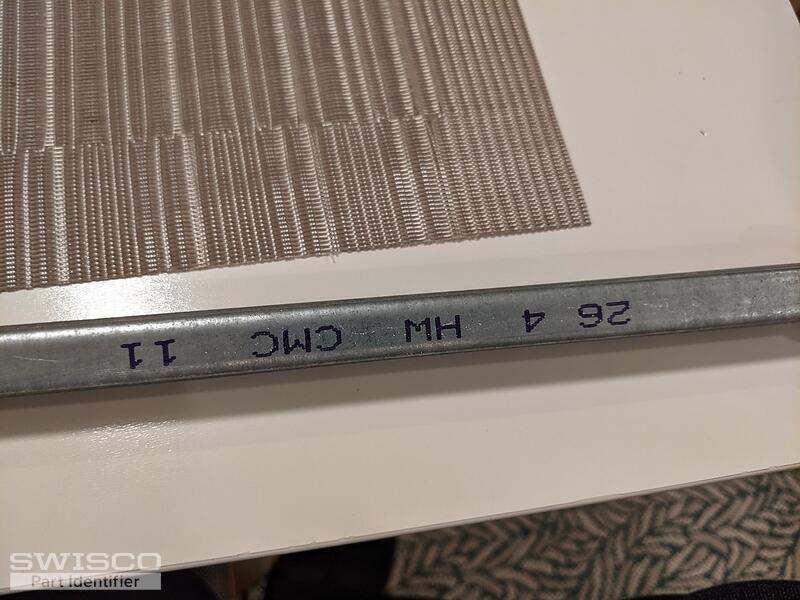

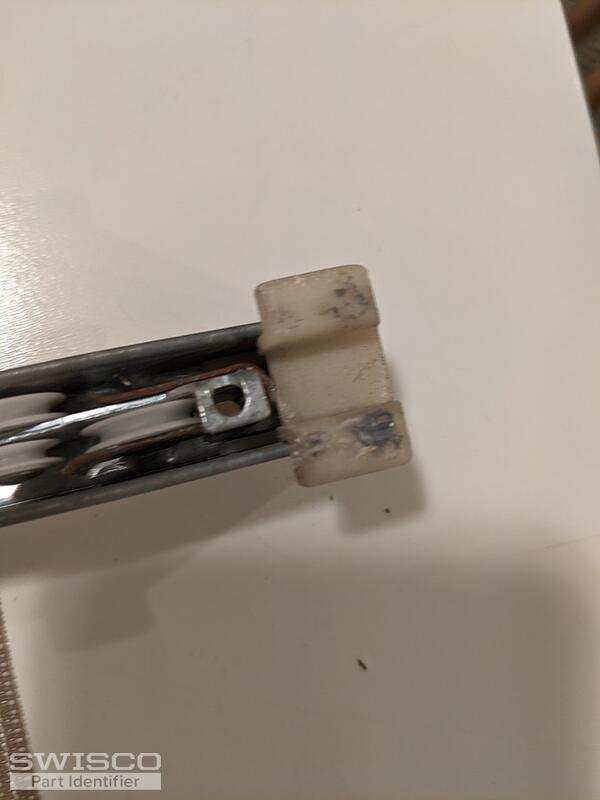

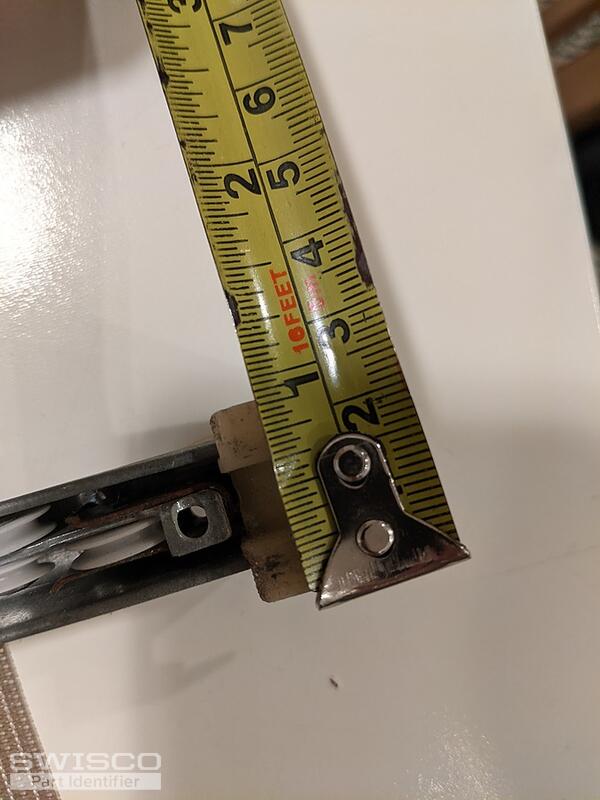

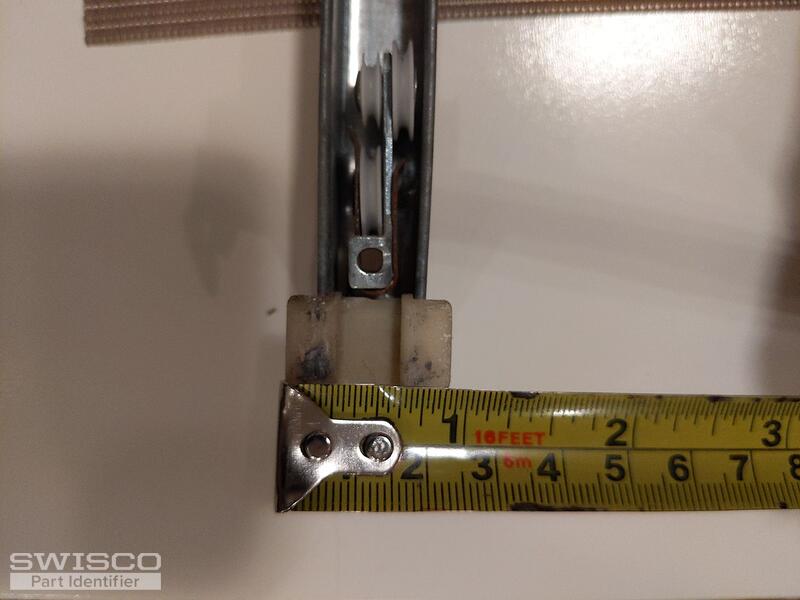

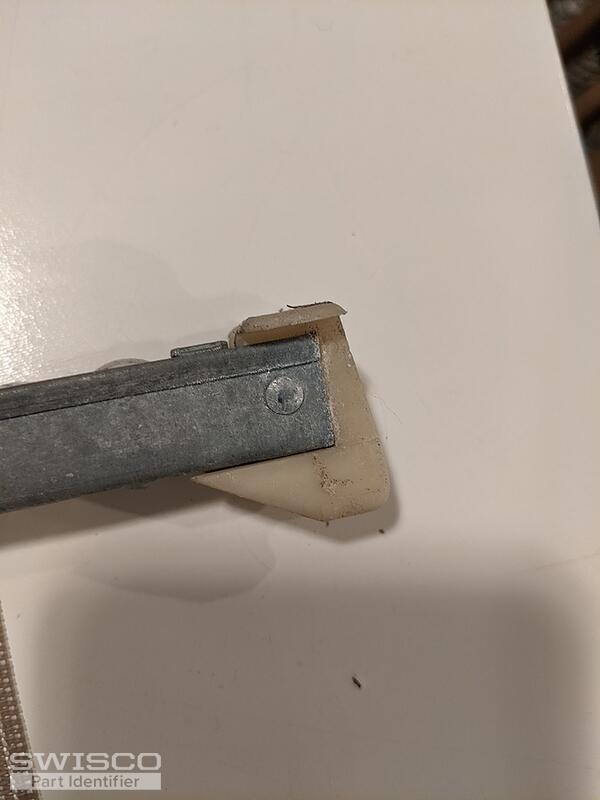

Need to know the right replacement for this. For a Milgard window. 26. Inch long
Thumbnail of the uploaded file named 16359022431786045264947926648166.jpg
Thumbnail of the uploaded file named PXL_20211103_011905177.jpg
Thumbnail of the uploaded file named PXL_20211103_011857366.jpg
Thumbnail of the uploaded file named PXL_20211103_011855331.jpg
Thumbnail of the uploaded file named PXL_20211103_011851903.jpg
Profile picture of Bob
Bob from SWISCO responded:

I am confident we can replace this channel balance, but I also need to see the top fitting on the other end of the balance. If you can show us the top fitting I'll be able to narrow this down.

A handy person from 91326 says:

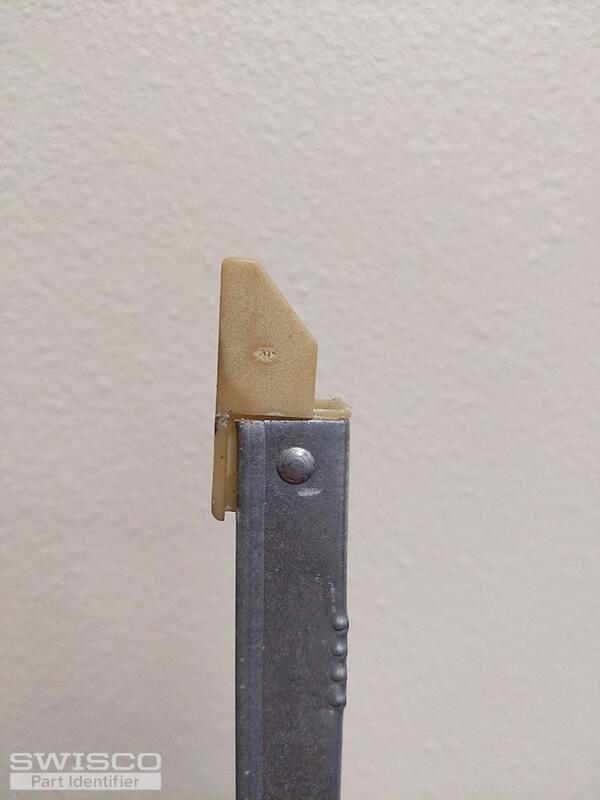

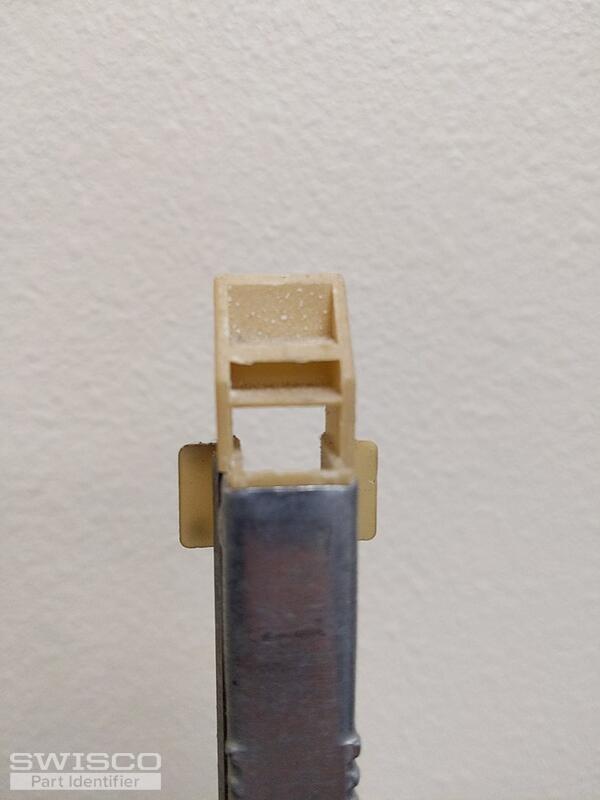

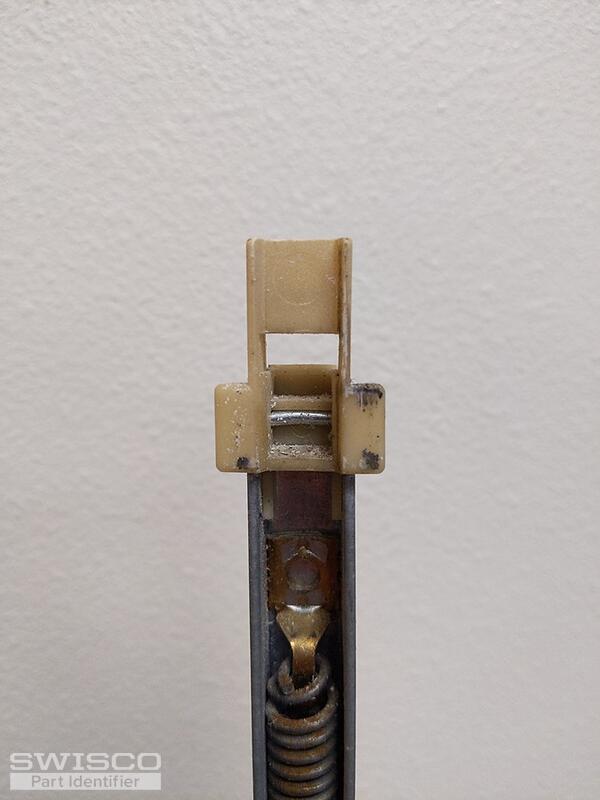

Here are the top fitting photos. Thank you!
Thumbnail of the uploaded file named 16361302574595399154310894753112.jpg
Thumbnail of the uploaded file named 16361302786653286612975459629970.jpg
Thumbnail of the uploaded file named 1636130300863644701829775795737.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for responding. Please double-check the metal channel length, not including the fittings on each end. I suspect it might be 27" long. If so, see our S380-27 or S385-27 . The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. For a new stamp option choose 2640.
