Window carrier sash spring

A handy person from Ohio says:
May 3, 2021

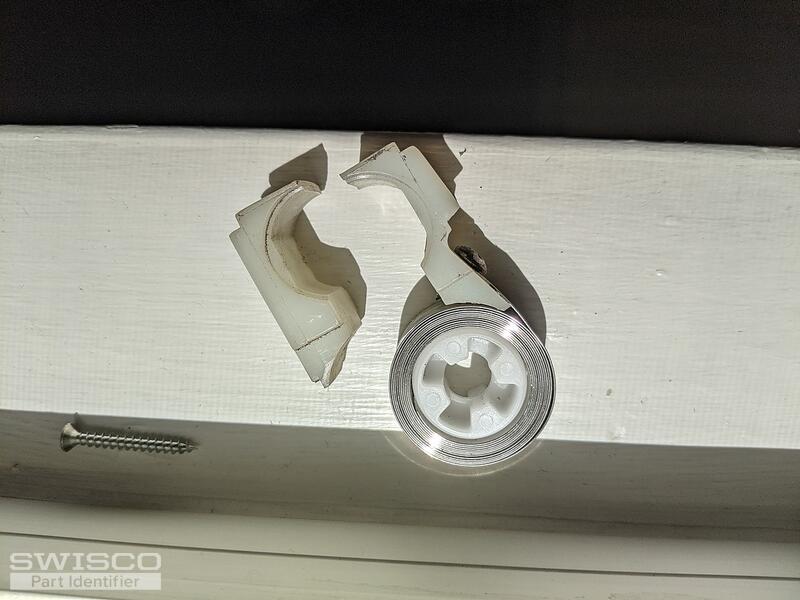

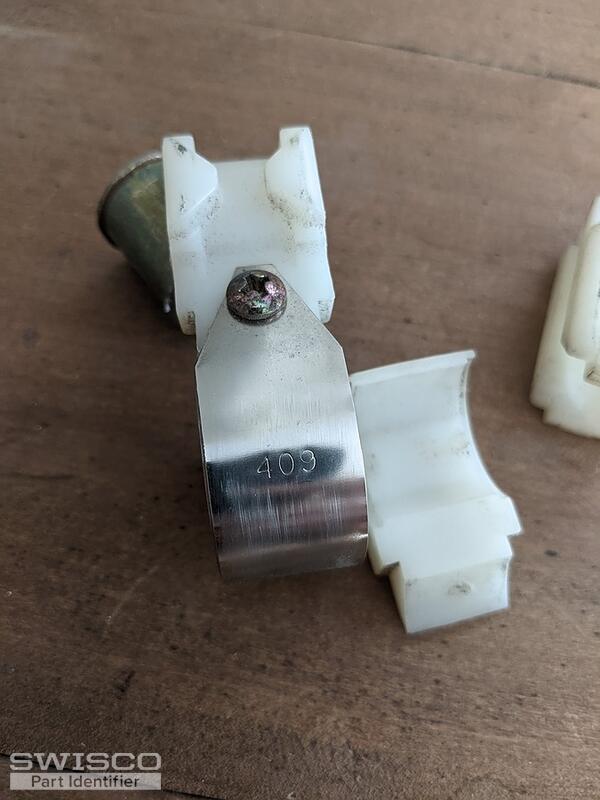

Hi. I am in need of some parts for my simonson windows. The part in question is the nylon piece which attaches to the spring that holds the window. The only identifier on the part is the number 409. I have included pictures. Is this a part you carry?
Thanks,
Brett
Thumbnail of the uploaded file named PXL_20210502_174120668.jpg
Thumbnail of the uploaded file named PXL_20210502_174932556.jpg
Profile picture of Casey
Casey from SWISCO responded:
May 4, 2021

This looks like our 15-192 Pivot Shoe. Note that some Simonton version of this shoe has a slightly different metal cam design. We recommend swapping out the old cam with the one in the new shoe to ensure the replacement shoe is compatible with your window's pivot bars.

If you need to replace the coils as well, see the S170 and S171 coil springs. Thank you!
409 Series 170 Coiled Balance Spring
409 Series 170 Coiled Balance Spring
S170-409
$6.57
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
SWISCO S170 and S171 Coil Balance Assembly
SWISCO S170 and S171 Coil Balance Assembly
