Window channel

A quick learner from Indiana says:

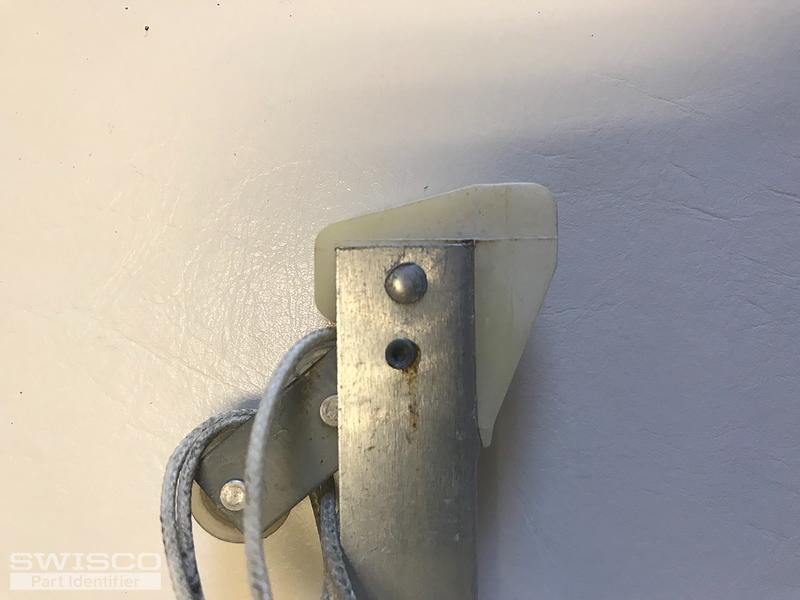

10". Metal. Stamped 910. Looks like S351. 1/2 ". Non tilt. Do you carry these?
Thumbnail of the uploaded file named 489BA6AF-8518-4016-8F08-81E6EAF810E6.jpeg
Thumbnail of the uploaded file named 97D2659E-3286-41A2-8738-93507C0DF4DD.jpeg
Thumbnail of the uploaded file named CB1FCB8A-9257-46C4-A5B4-4F7EFC0576BE.jpeg
Thumbnail of the uploaded file named 82695B14-BBAF-40AD-8DA6-1058501CC40F.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. I agree this looks like a Series 351, which comes with the 19-002 and 15-002 nylon attachments. The only other possibility is the Series 390, which has a nylon shoe with a greater depth. To my eye this looks like a Series 351, but double-check to be certain.

We can replace this for you, but it will have to be a custom order due to its unique length. I'm sending you an email to order two of these balances. If you need a different amount, or have any questions, just let me know here in the discussion. Many thanks.

A quick learner from Indiana says:

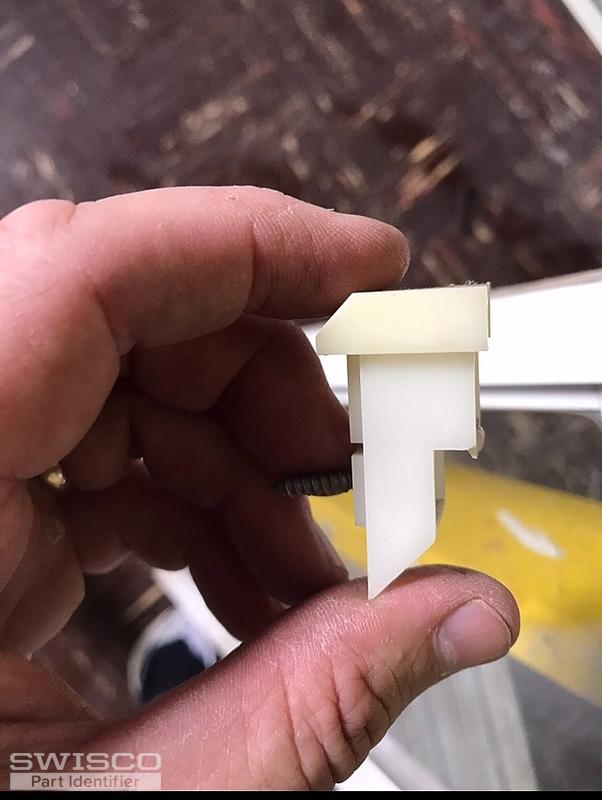

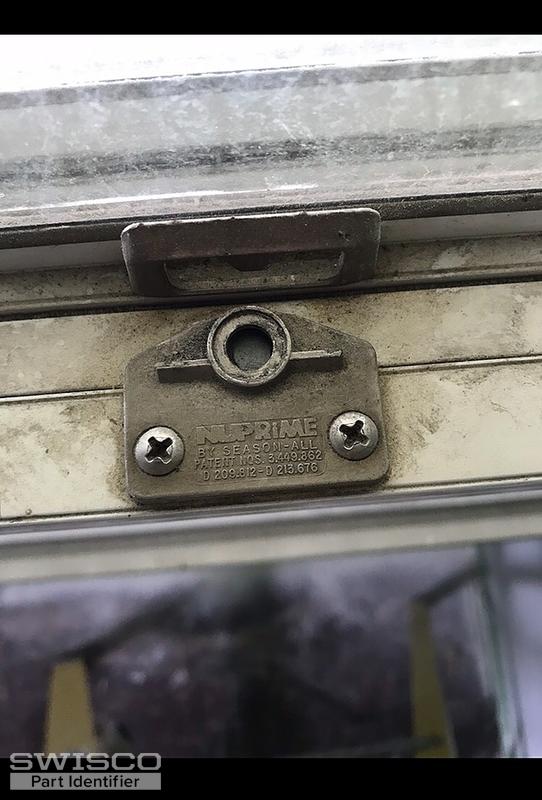

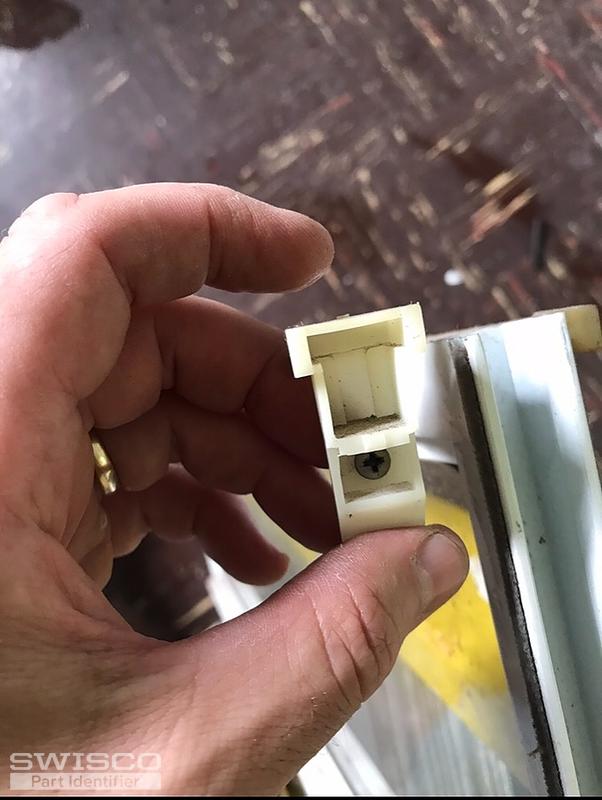

Nuprime by season all. Top sash guide. Not sure the model #. Thanks again for all your help. Todd
Thumbnail of the uploaded file named 3AF2D3D2-52AA-43B3-8848-8106C508E80D.jpeg
Thumbnail of the uploaded file named 8FC821D8-D902-42F0-819F-B5CB2B467D5A.jpeg
Thumbnail of the uploaded file named 27166F0C-5A7F-4203-938F-C8270F467E05.jpeg
A quick learner from Indiana says:

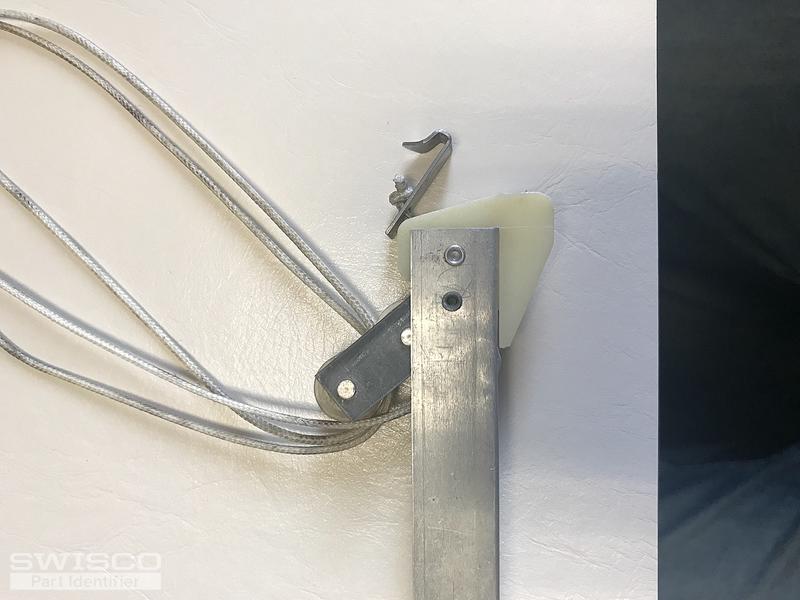

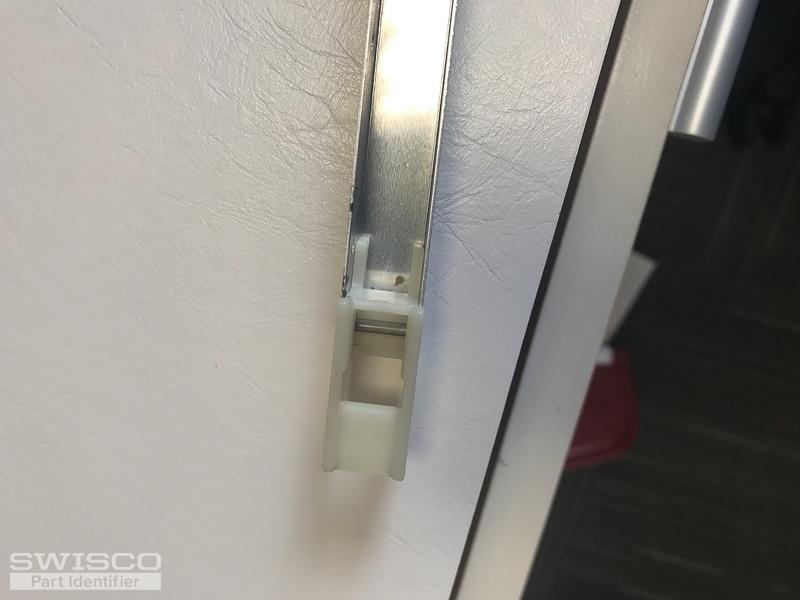

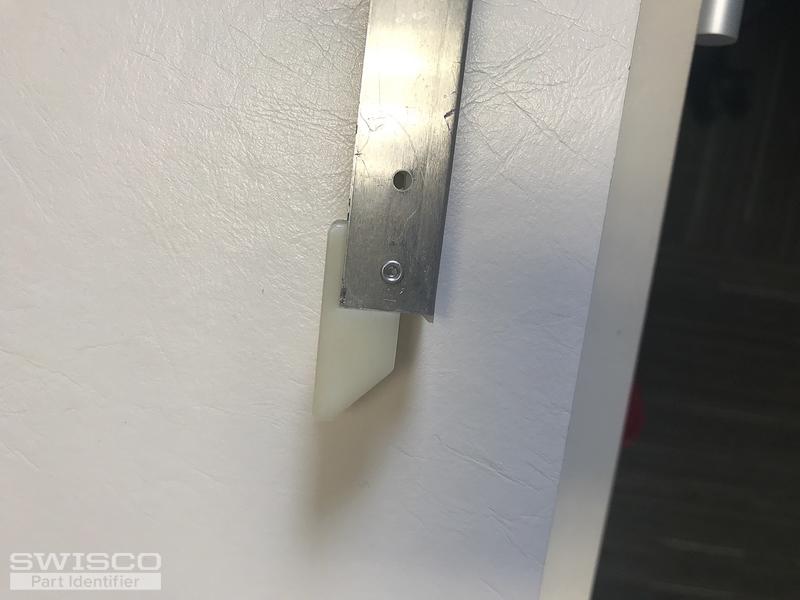

I will need 12 of the 10" Also 6 of the 16.5 And. 15 of the 23" stamped 2220 As well as 2 locks (see pic). And 9 sash guides. (See pic previous). 23" pics attached please confirm.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for getting back to us. I'm afraid these new pictures don't tell us if you have the Series 390 or Series 351. That's not something we can eyeball. You'll have to measure the depth of your shoe as carefully as you can and tell me which of the two Series is closer.

You also mention several other balances. Do these all have the same nylon fittings? For the 16.5" balance, can you confirm that you're only measuring the metal channel? Can you also tell me the stamp for this one?

Please triple check to make sure the nylon ends on the 16.5" balance are identical to the others. If they differ in any way, we have to see them. Balances aren't designed to have lengths that end on a 1/2". We can make it in this size, but it's very custom, even among other custom orders. Make sure your length measurement is as precise as physically possible.

As for the top sash guide and lock, see our 18-033 and 90-042, respectively.

A quick learner from Indiana says:
Can you send the link for 12 ea of the 10" The link i had was for 2 ea. What is the lead time since it is custom? Thx todd
Profile picture of Tom
Tom from SWISCO responded:

Sure, I can update that link for you. I'll email it over now.
