Window channel : SWISCO.com

Quick Learner from Spangle WA

Oct 28, 2023 11:01 pm

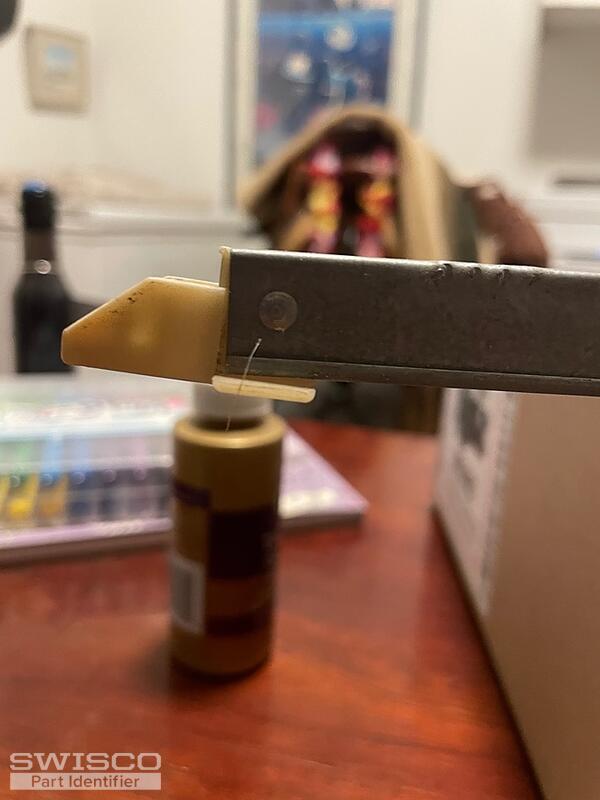

Metal is 27" long; one of them has 26 4 JR Caldwell marked on it. I already put in an order for 385 series 2ea 2640 and 2ea 2630 because I have 2 different size windows. Didn't see this expert help until I placed order.

4 user uploaded images

6 Replies

Bob from SWISCO

Oct 29, 2023 10:28 pm

Thanks for posting. This certainly looks like an S385-27. The only other possibility would be the S380-27, which has a shoe depth of 1", while the Series 385 has a 1-3/32" shoe. See the diagram below for reference. Let me know if you have any other issues or questions.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Spangle WA

Oct 30, 2023 12:13 am

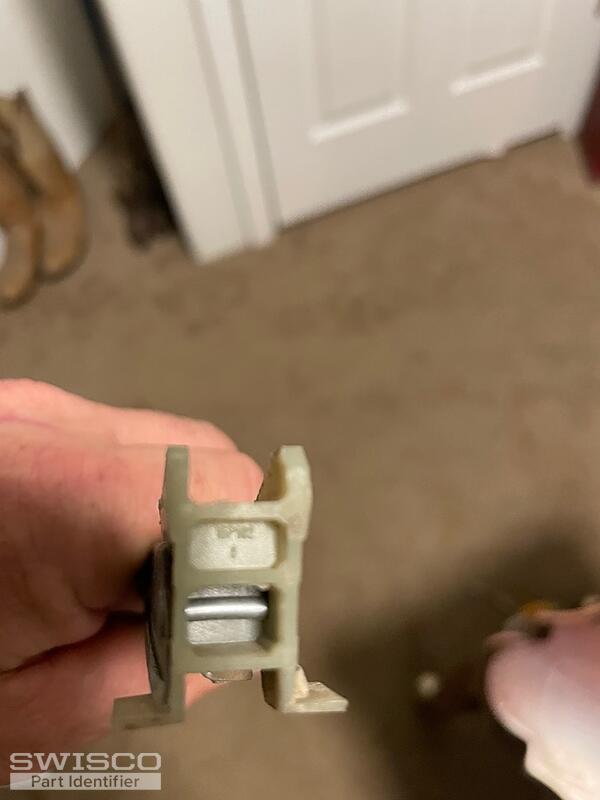

Well it measures closer to 1 3/32 to me but I did find a number stamped on the shoe. 15P102 then a 6 under it. I didn't even think to look!
Not the best picture but wanted to confirm the number positioning.
Thanks for your time!

1 user uploaded image

Bob from SWISCO

Oct 30, 2023 10:32 am

I'm afraid that code doesn't verify the better shoe, but size definitely does. If it's 1-3/32" deep then the Series 385 is definitely my top recommendation.

Quick Learner from Spangle WA

Oct 30, 2023 1:02 pm

Copy that thanks for your assistance. Have a happy Halloween

Bob from SWISCO

Oct 30, 2023 4:01 pm

Thank you, and to you as well! Please feel free to reach out if you had any other questions.
