Window channel

Home Owner from Illinois
32 4 cw cmc 10. 33inches long
5 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm not sure what you have, unfortunately. We have dozens of different balances with that stamp. It's not a product code or anything, it just indicates the strength of the spring.

In order to figure out what Series this is, I need you to remove an undamaged version of this balance from the window and show me clear pictures of the top and bottom nylon fittings. I will also need to know the dimensions of these fittings.

Home Owner from Illinois

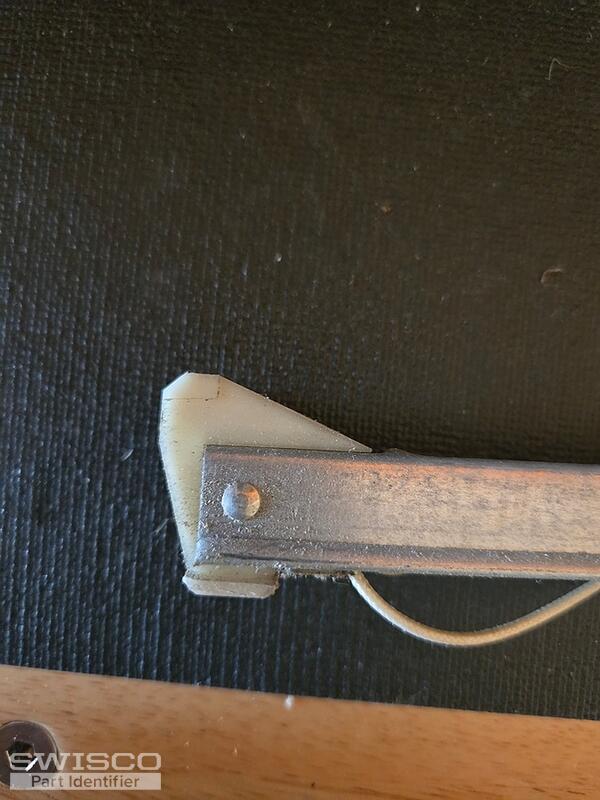

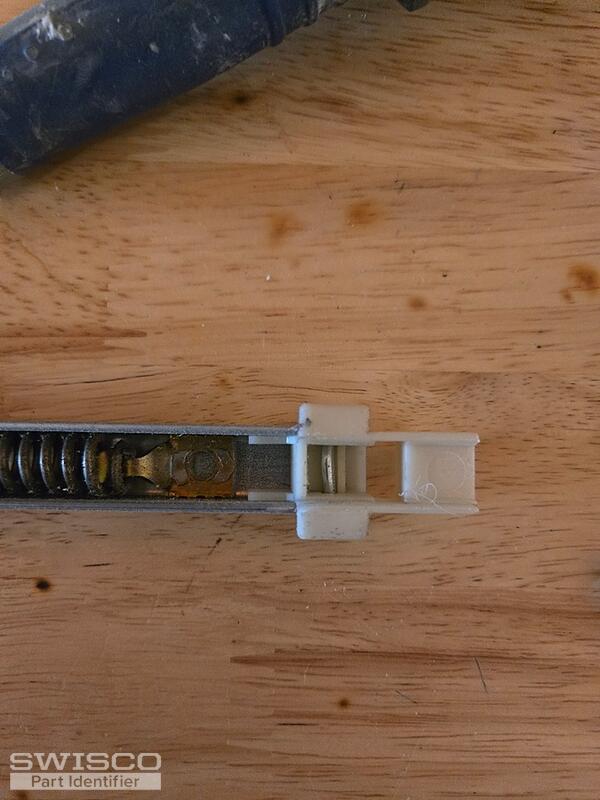

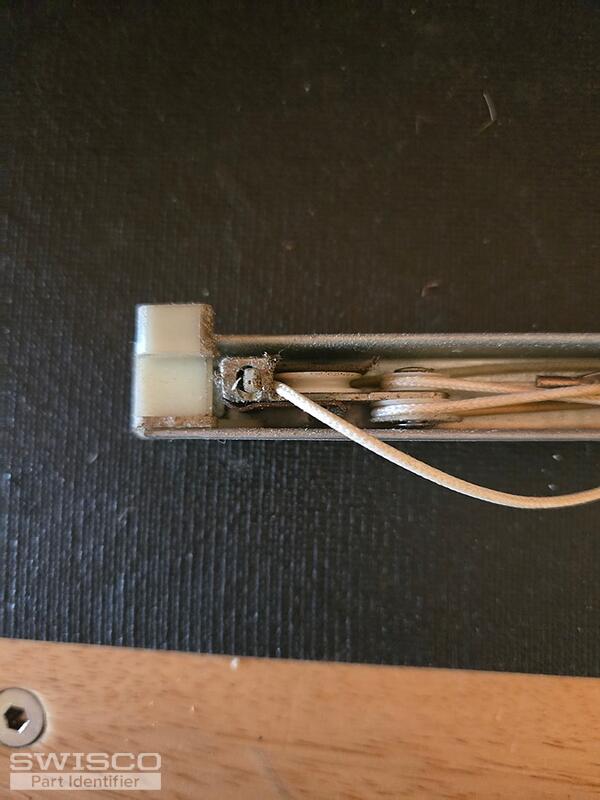

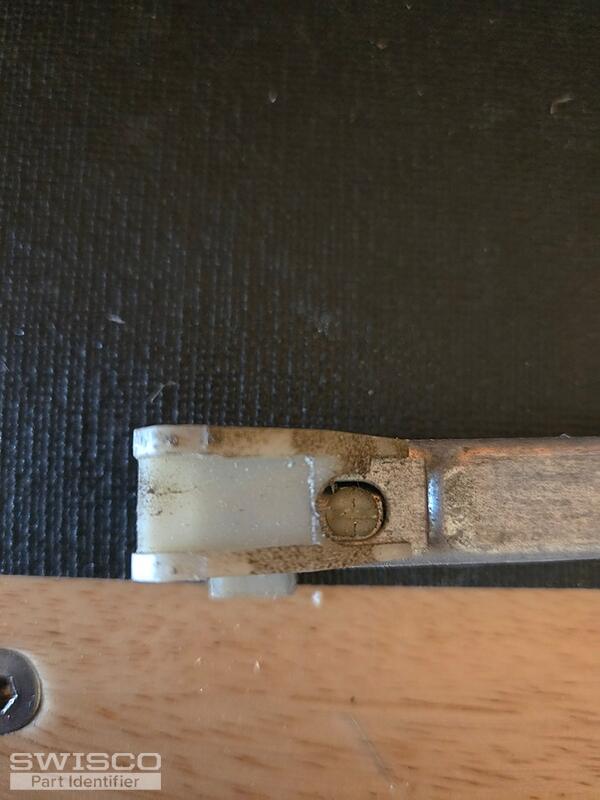

Here is the first batch of pics
5 user uploaded images
Home Owner from Illinois
Second batch of pics.
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! Based on what I see here, you have either our S380-33, S385-33, or S378-33 depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
