Window channel Balance identification

Home Owner from Dallas, Tx

Feb 18, 2015 5:50 pm

Please help me identify this balance, I'm unsure of the shoes. I believe it is either a 351 or 390. The channel length is 29'.

Thanks.
M.R.

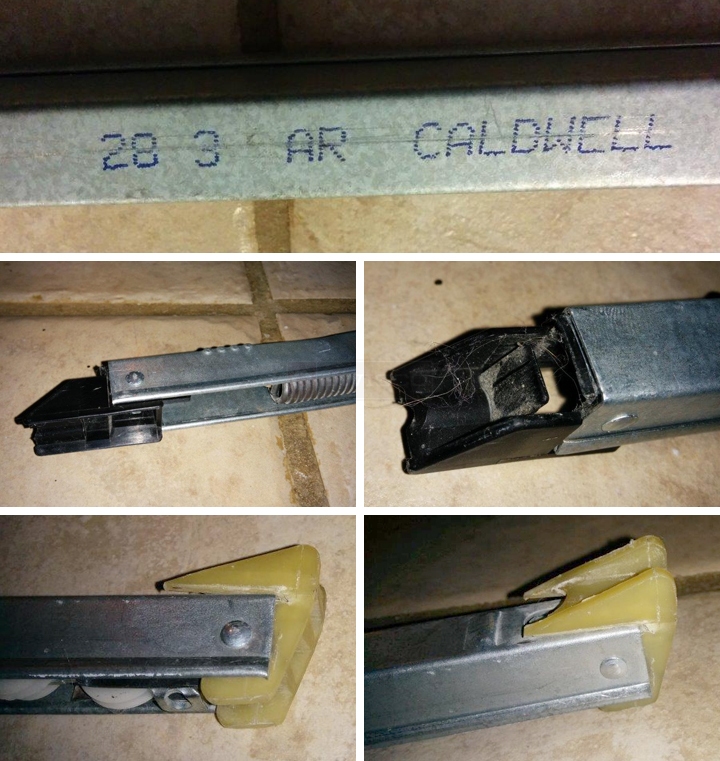

User submitted photos of a window balance.

4 Replies

Paul from SWISCO

Feb 23, 2015 11:50 am

Hello! The difference between the Series 390 and Series 351 is the size of the shoes. I recommend that you compare the dimensions of those two SWISCO balances to your own to determine which is a closer match.

Home Owner from Dallas, Tx

Feb 25, 2015 3:50 pm

Hi,
with a digital caliper I'm getting a reading of 1.066, putting me in between the two. What is the tolerance? should I go over or under?

Paul from SWISCO

Feb 26, 2015 9:38 am

Ah, I see. In that case, I think you'd be okay with the S351-29, which has the smaller shoe.
