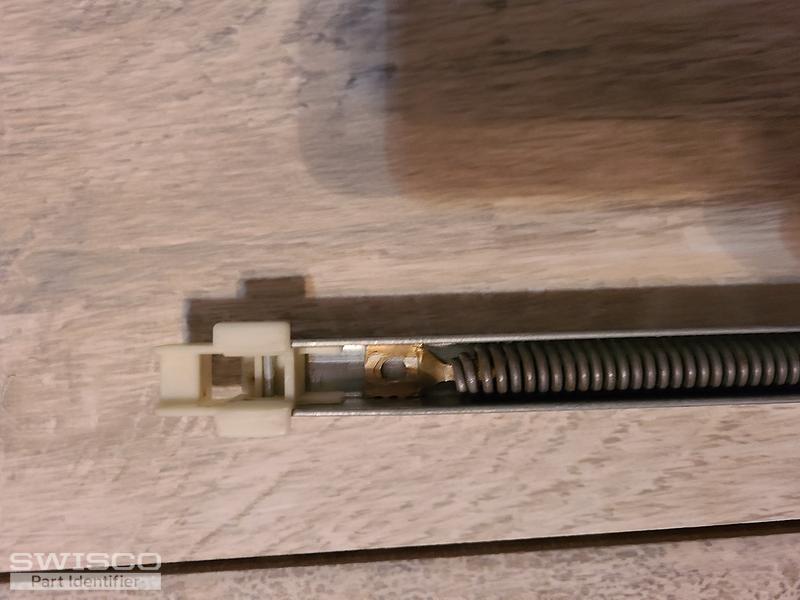

double non swing window i cannot identity a replacement. It is 30 in long. No number on anything to identify
1/2 inch wide 30 inch long
Window channel balance
Quick Learner from deland florida
Jul 28, 2020 9:06 pm
4 user uploaded images
2 Replies
Casey from SWISCO
Jul 30, 2020 2:00 pm
Hello,
With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to choose a spring strength option based on the stamp on your metal balance channel.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
