Window channel balance

Quick Learner from 92602
Hello,

What do I need to order for my window channel balance?

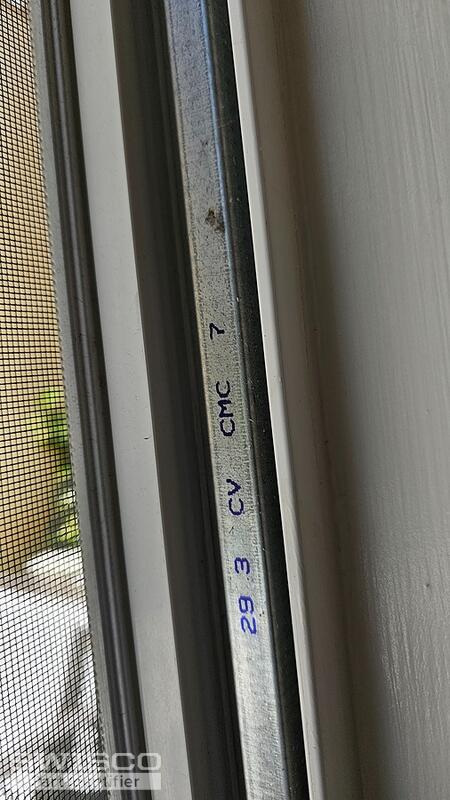

I found the stamp on it as "29 3 CV CMC 7".
And I already measured the shoe size for 1-3/32".

Please advise me.
2 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

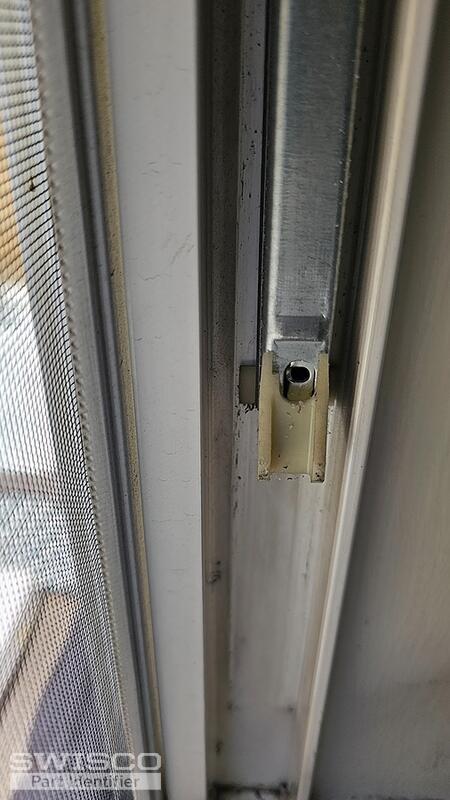

Hello there. That stamp is not an identifier; it just tells us the balance's strength. Without seeing the attachments on both ends, I am only guessing, but is the top attachment the 19-005? If so, and if you are certain the shoe depth is 1-3/32" (it must be measured as shown below, and can really only be reliably done with the balance removed from the window), then you need an S385-30 Channel Balance with a stamp option of 2930. Be sure to double-check all these points before proceeding.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
