Window channel balance

Start a new Discussion

Home Owner from Fallbrook, Ca 92028

Apr 10, 2018 12:39 pm

I forgot to send the part letters and numbers that are on my channel balance.

26 4 AX CMC 7

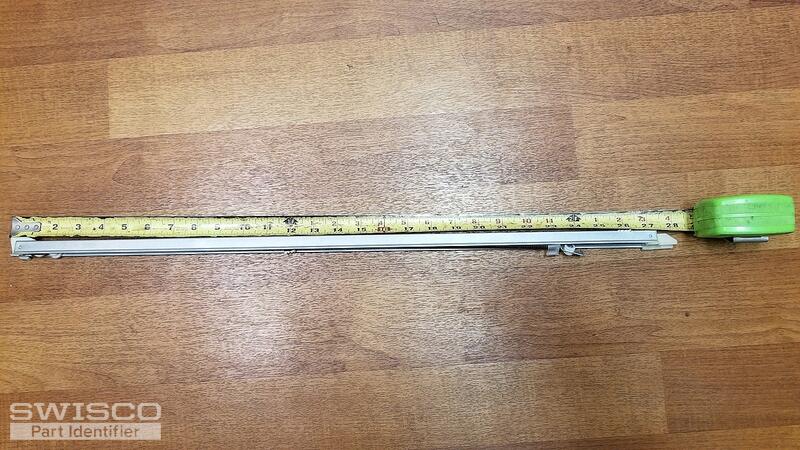

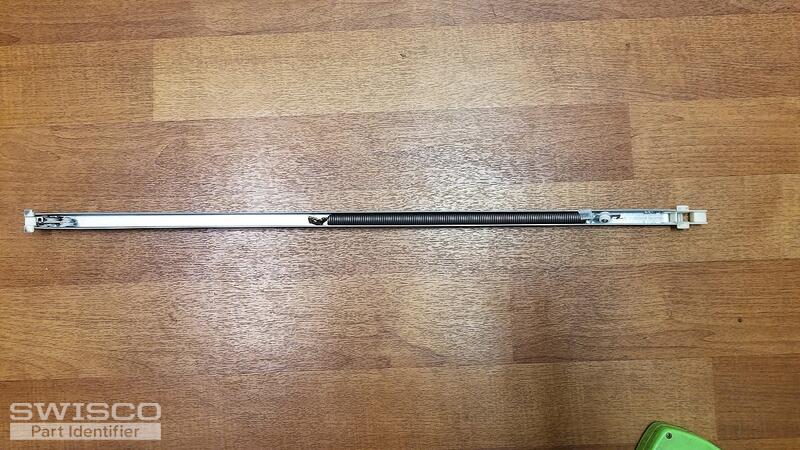

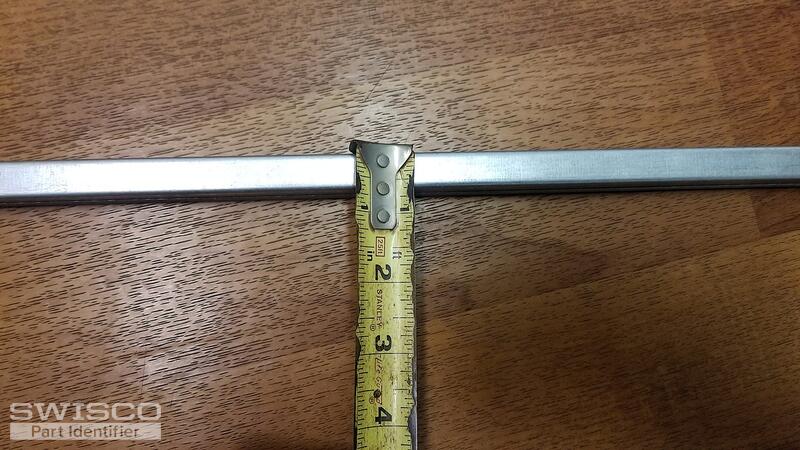

3 user uploaded images

4 Replies

Paul from SWISCO

Apr 12, 2018 3:06 pm

Greetings from Swisco! I think we can help you with your balance, but you will still need to measure the depth of the bottom nylon shoe. For your 27'' side load balance, use S380-27 , if the bottom nylon shoe measures 1". If the shoe is 1-3/32', use S385-27 . For either series, you will need the 2640 option for a sash weighing between 19-26 lbs, based on your 26-4 stamp. Hope this helps!

Home Owner from Fallbrook, Ca 92028

Apr 16, 2018 10:04 pm

Bottom shoe is 1"3/32. I want to buy 1 and if that one fits I'm going to order 5 more.

Paul from SWISCO

Apr 18, 2018 9:51 am

Great! Let us know how the Series 385 works for you.
