Window channel balance

Home Owner from California

Jun 1, 2020 12:33 am

I purchased this window channel balance from your company about 2 years ago but I can't remember the type and measurement. Can you identify the part number engraved in the part in the picture so that I can order more?

Thanks,
Marrick

1 user uploaded image

4 Replies

Casey from SWISCO

Jun 4, 2020 11:47 am

Hello,

I do not see any past orders under your email address, so we will need to start from scratch. The numbers on your balances indicate the spring strength required to support your window sash but, unfortunately, are not part numbers. If you could show us photos of the top and bottom attachments on your balances, we should be able to point you in the right direction. Thank you!

Home Owner from California

Jun 4, 2020 7:57 pm

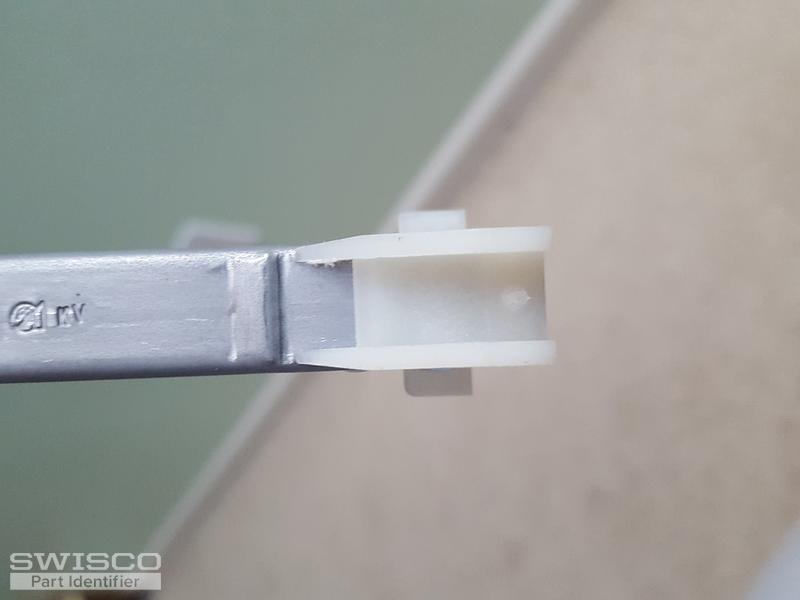

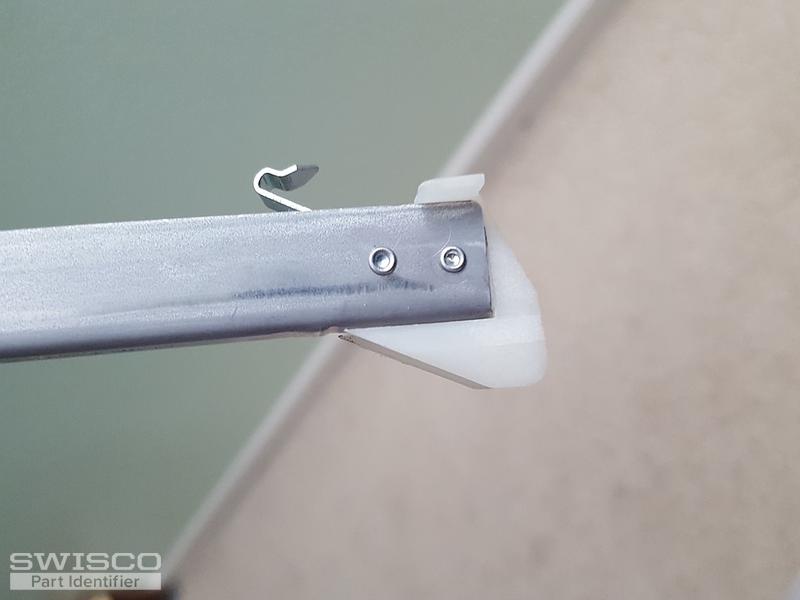

more pics

4 user uploaded images

Casey from SWISCO

Jun 5, 2020 8:23 am

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
