Window channel balance

A home owner from Holmes Beach FL says:
December 14, 2020

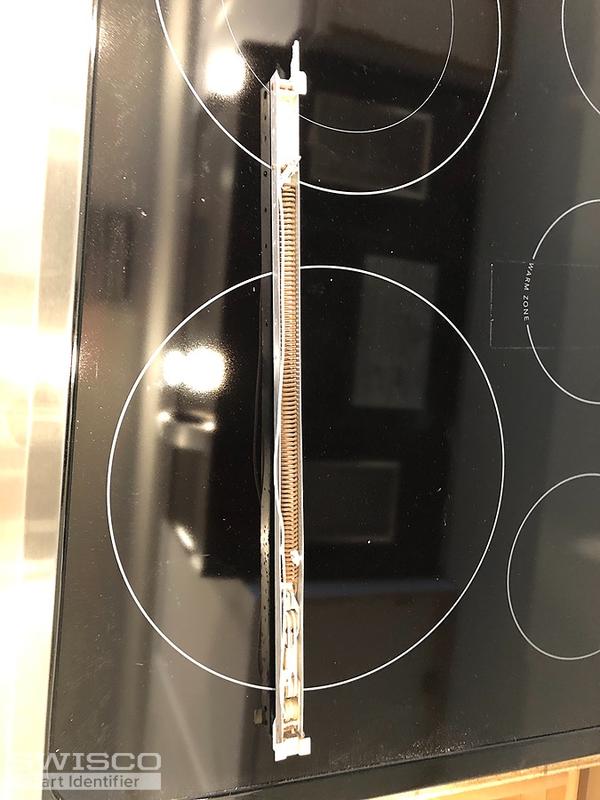

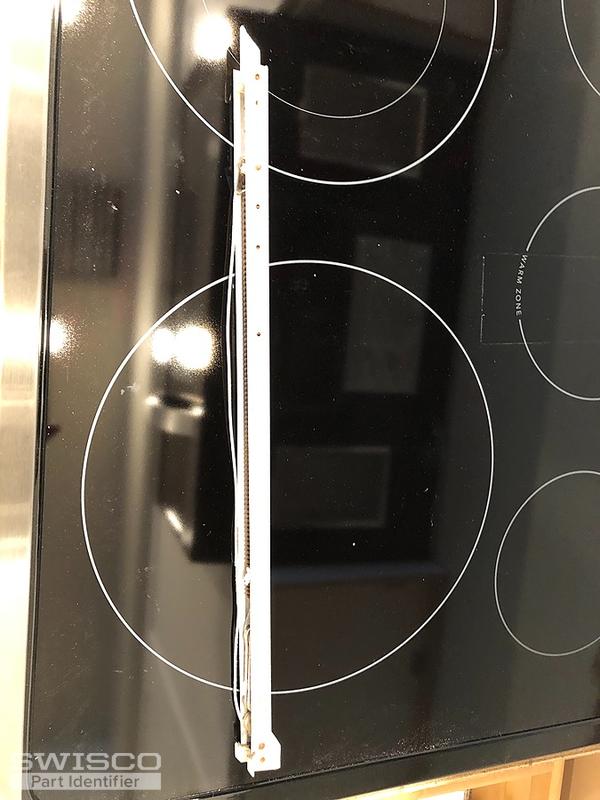

17" channel balance 1620 BST. Need 2 replacements - interior portion is broken. Thanks so much.

Bud
Thumbnail of the uploaded file named 8B301904-A314-472F-B918-DEF50F68CDA6.jpeg
Thumbnail of the uploaded file named C563C91A-1BCE-471C-B0C3-1AB69B301D5D.jpeg
Thumbnail of the uploaded file named 93FAD6B5-9C0E-4213-8954-A311E3E5A32A.jpeg
Thumbnail of the uploaded file named 00E01C56-D703-4521-A59E-B350D913507E.jpeg
Thumbnail of the uploaded file named DA0E5F00-FEE6-4F49-8A00-27A92C55772A.jpeg
Profile picture of Casey
Casey from SWISCO responded:
December 15, 2020

With this combination of attachments, you could have either an S380-17 or S385-17 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1620 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
