Window channel balance

A handy person from Coral springs Florida says:
February 6, 2021

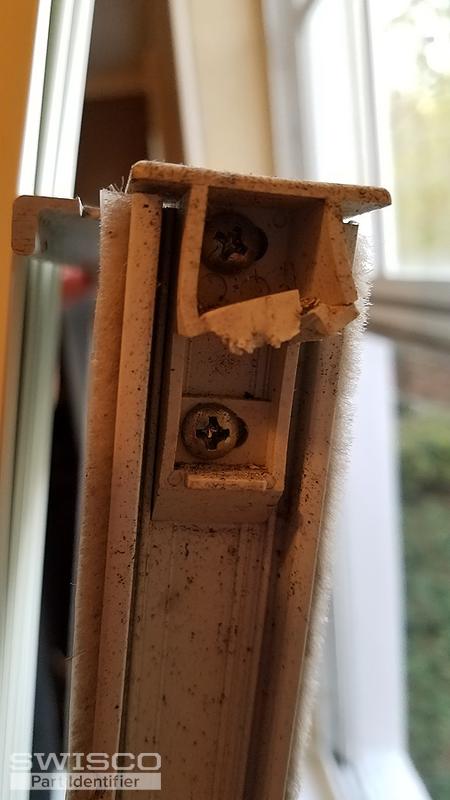

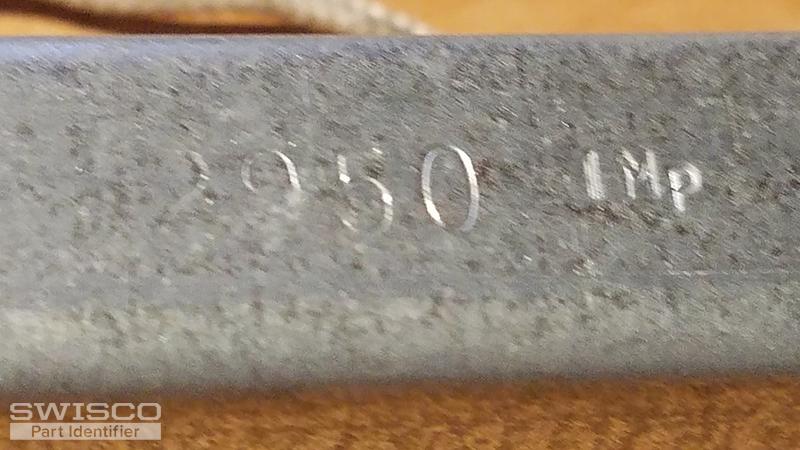

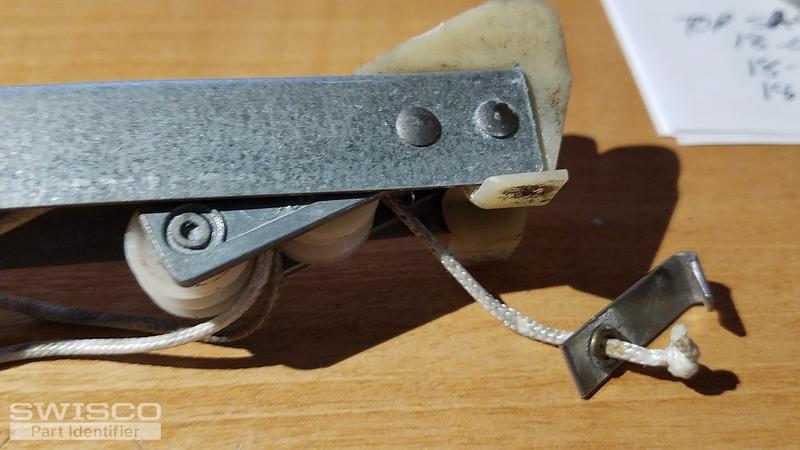

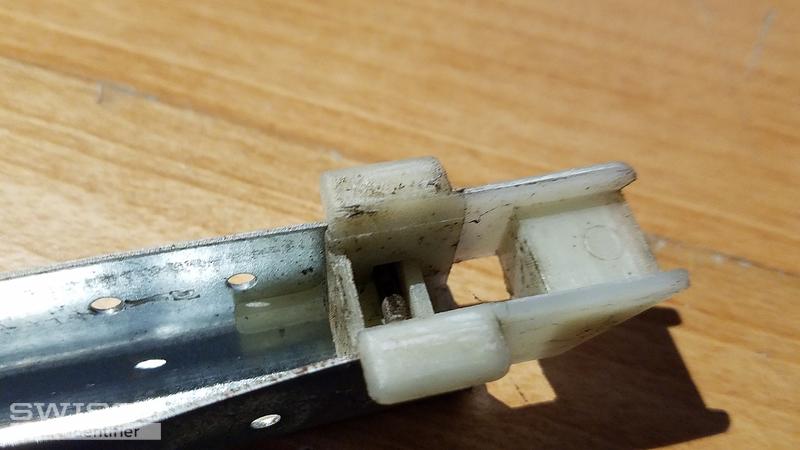

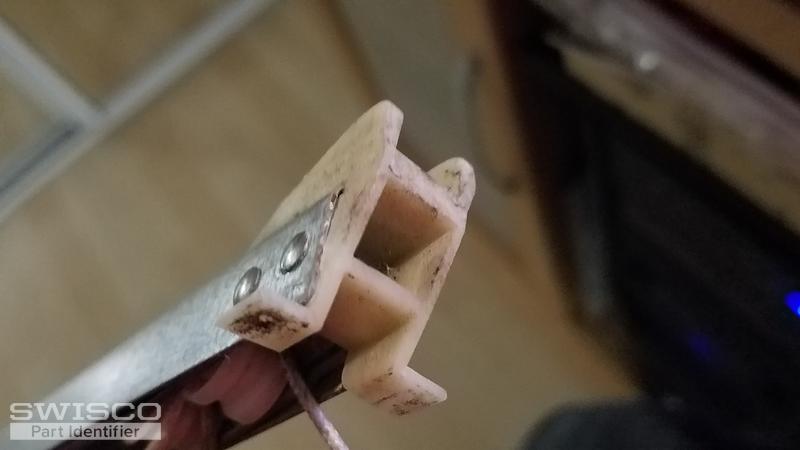

5 pics not enough. Think is your part S385-30 . Looks like 2950 inscribed on back. Also need top dash with two screw holes think might be 18-064 . Going to need 9 of both.

Thank you

Thumbnail of the uploaded file named 20210206_203943.jpg
Thumbnail of the uploaded file named 20210206_204031.jpg
Thumbnail of the uploaded file named 20210206_203852.jpg
Thumbnail of the uploaded file named 20210206_204018.jpg
Thumbnail of the uploaded file named 20210206_172904.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 10, 2021

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2950 spring strength options for your replacement balances.

As for your top sash guide, take a look and carefully compare the dimensions of our 18-192 Lawson guide to yours. Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
5/8" Top Sash Guide
5/8" Top Sash Guide
18-064
$1.12
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
Top Sash Guide, Lawson
Top Sash Guide, Lawson
18-192
$1.57
