Window channel balance

A quick learner from California says:
Please assist in identifying correct part number for channel balance replacement.

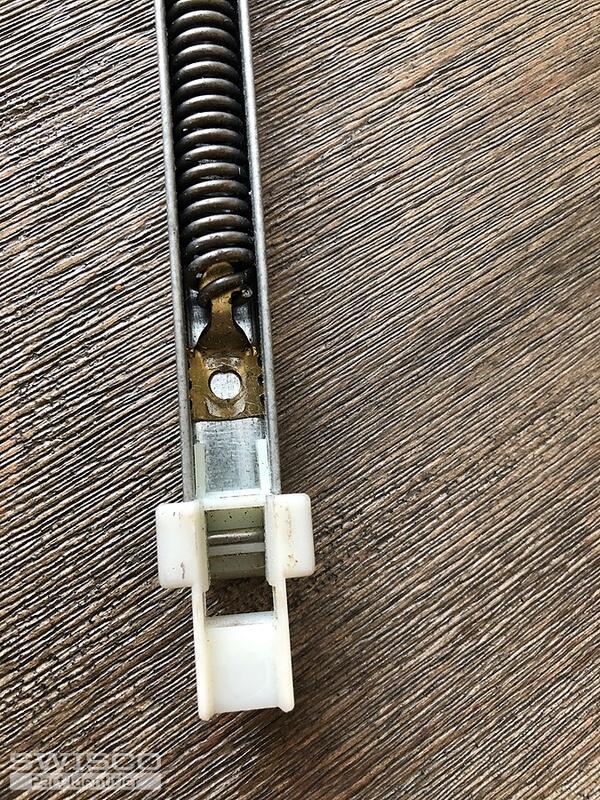

Thumbnail of the uploaded file named image.jpg

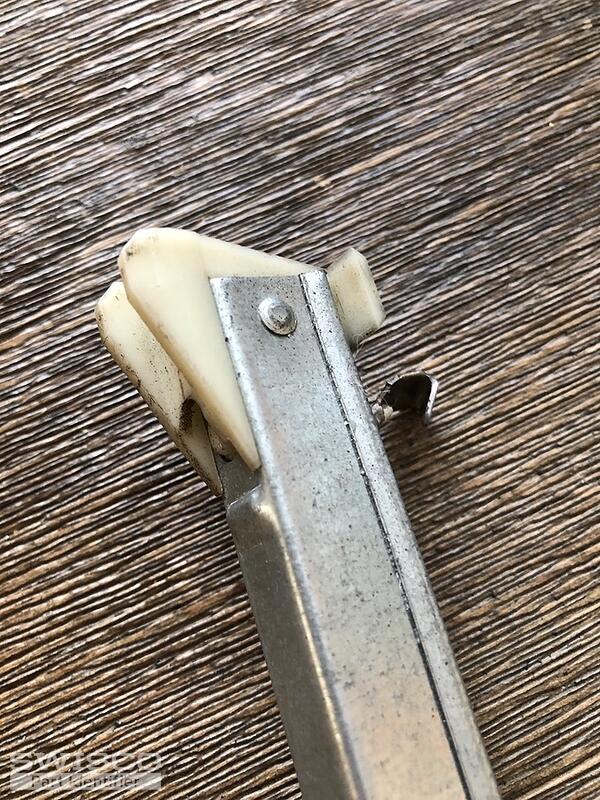

Thumbnail of the uploaded file named image.jpg

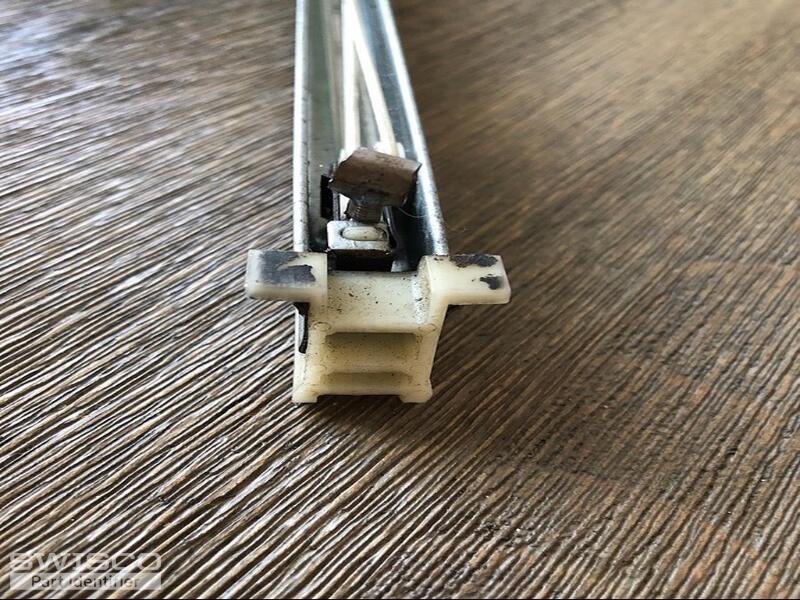

Thumbnail of the uploaded file named image.jpg

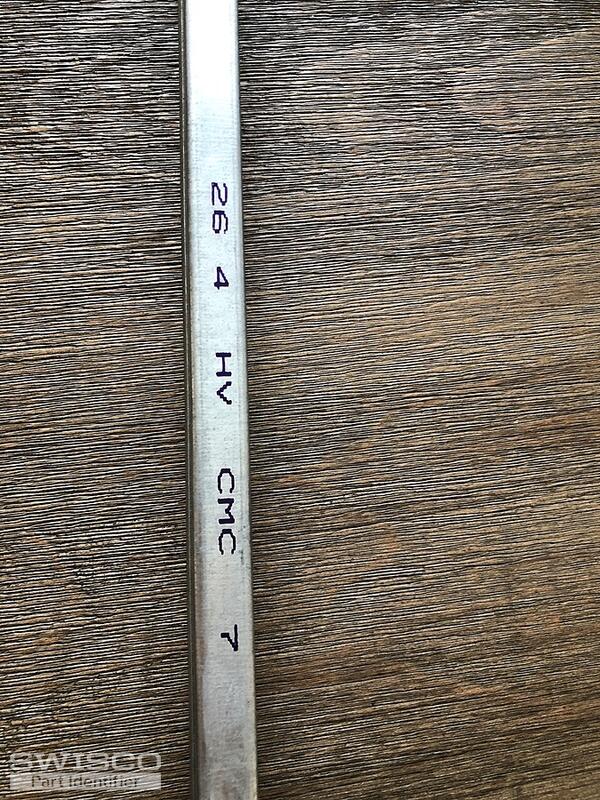

Thumbnail of the uploaded file named image.jpg

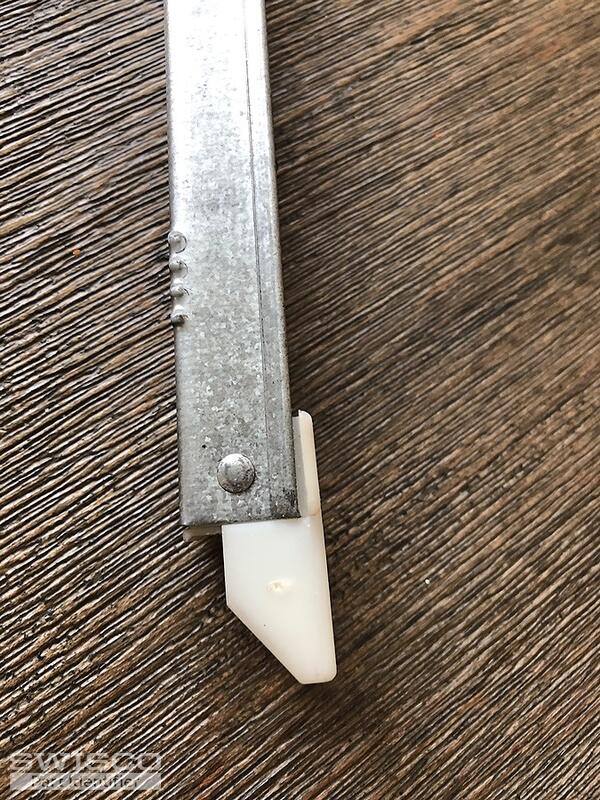

Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

With this combination of fittings, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom fitting, and the Series 385 has a 1-3/32" fitting. You'll also need a spring strength option of 2640.

If you have any further questions just let us know.
