Window channel balance

A quick learner from VA says:
Hi! Can you help me make sure I'm going to order the correct channels for my windows?

28 in length
1/2 inch wide

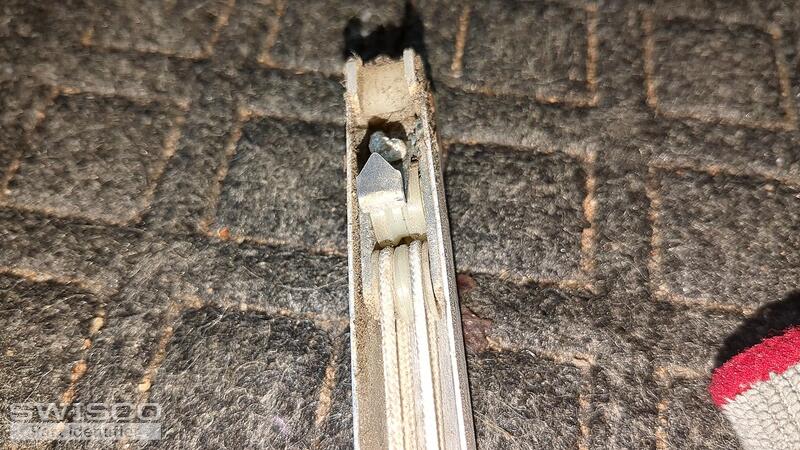

Thumbnail of the uploaded file named 16823553508802485868111281958390.jpg

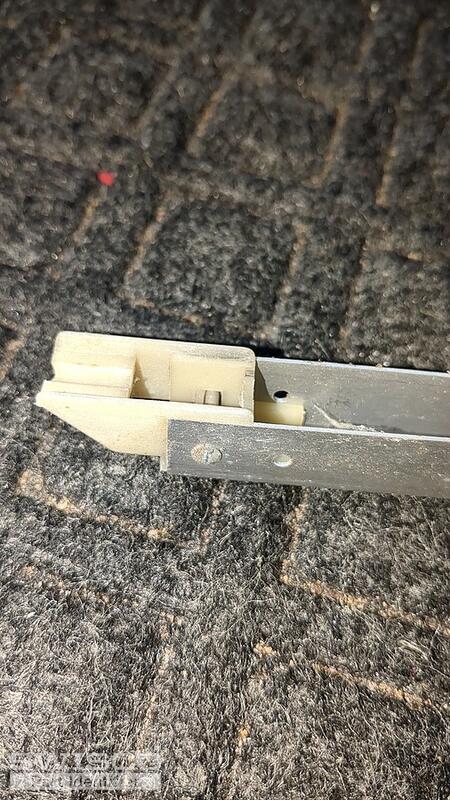

Thumbnail of the uploaded file named 16823554239507103074421324029657.jpg

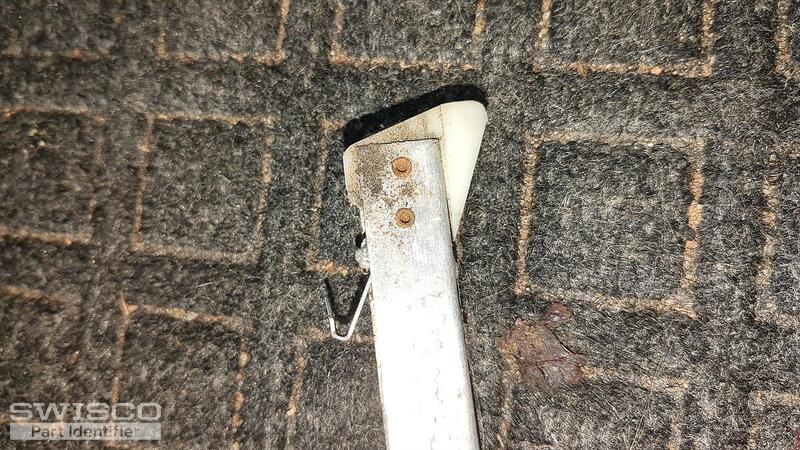

Thumbnail of the uploaded file named 16823554514491978807824413631321.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for reaching out! It appears you have either our Series 351 or our Series 390 channel balance. To determine which series you'll need for your replacement balance, you'll need to confirm the measurement for the depth of your bottom shoe. It should either be 1" or 1-1/8" as shown below.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

You'll want to be sure that the length you confirmed is of the metal channel and not the entire balance. Once you have confirmed this, you'll need to search for any stamps/markings on the metal channel that will help you identify the stamp needed for your balance.
