Window channel balance

Start a new Discussion

Quick Learner from California

Apr 28, 2023 6:32 pm

My window needs channnel balance replacement. Whst kind of channel balance is fit for my windows?
Thank you

4 user uploaded images

6 Replies

Lauren from SWISCO

May 1, 2023 9:39 am

Hello, thank you for posting,

To further review, are you able to show us a clearer picture of the top attachment? We need to determine if it is winged out or not. Thank you!

Quick Learner from California

May 2, 2023 6:24 pm

Thank you for your reply.
Last time my friend helped to take out window.
It jammed so I can't do it myself. When I get help, I will take better photo and information and send to you again.
Thank you and I appreciate your help.

Eunhee

Lauren from SWISCO

May 3, 2023 2:53 pm

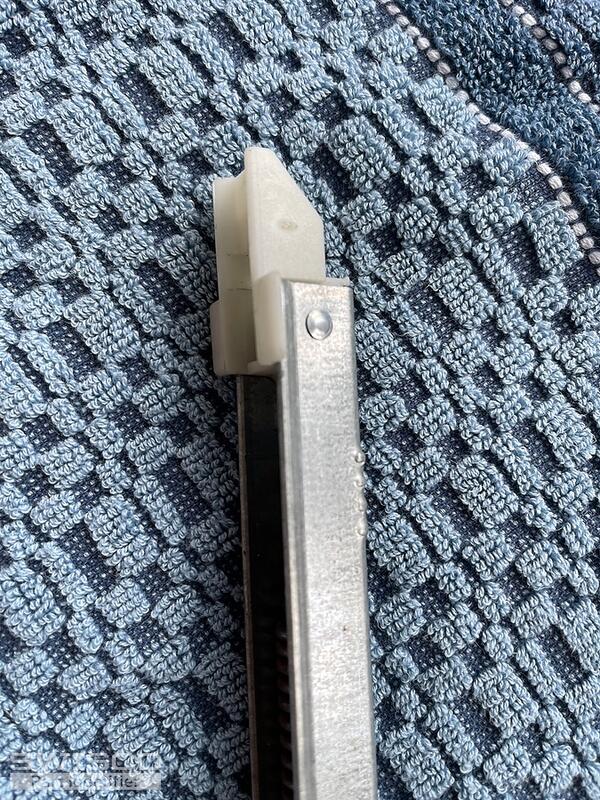

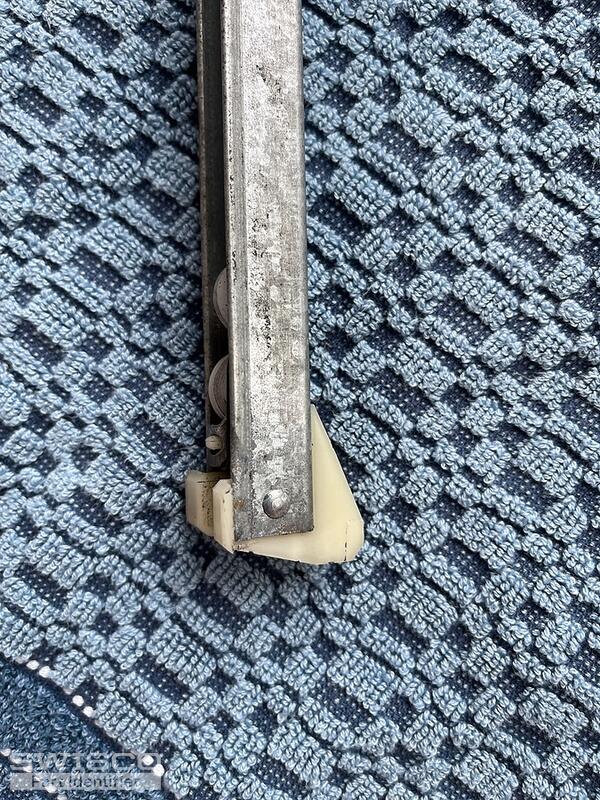

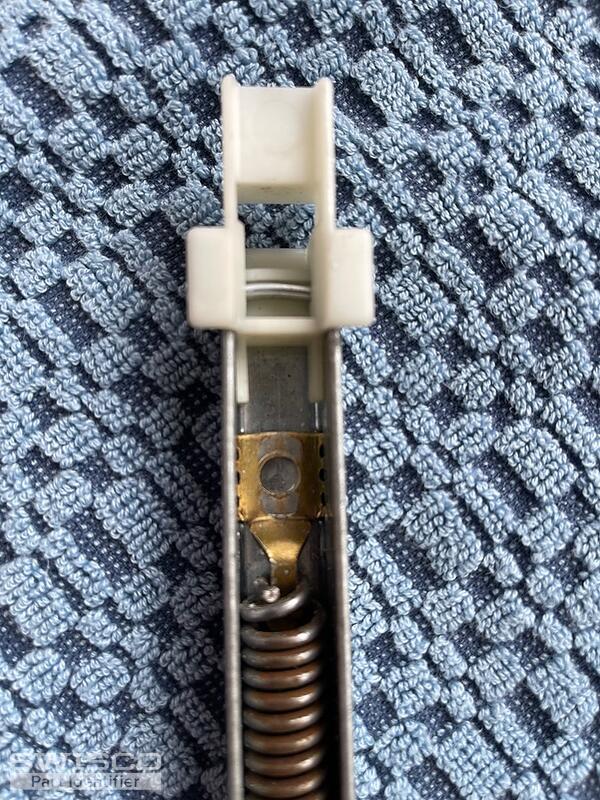

No problem! It appears that the top attachment might be "winged out" like the bottom, but it is blending into the carpet to confirm fully.

If that is the case, with this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

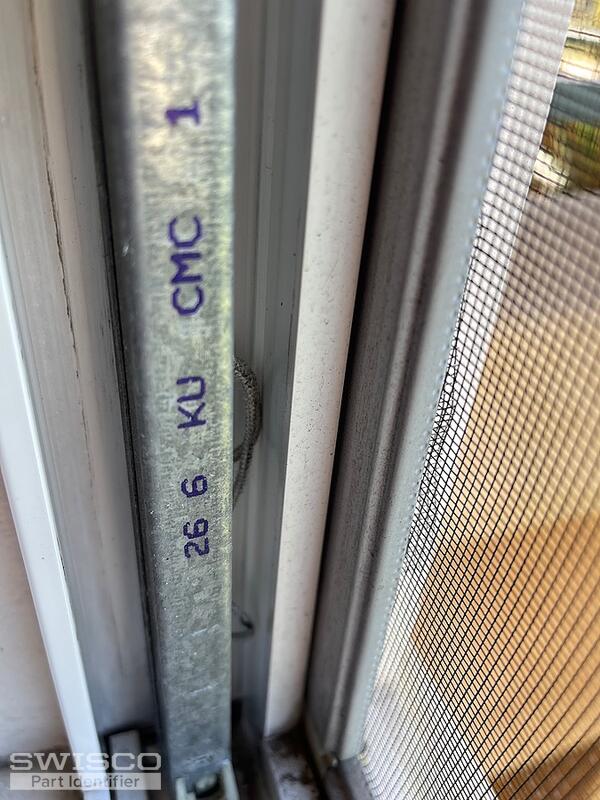

The length of the metal channel excluding the nylon attachments should measure 27" and you will need a 2660 stamp option.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from California

May 3, 2023 6:55 pm

Hi Lauren
My metal balance length is 27"
Width is 1/2"
Bottom shoe depth is 1"
Top and bottom both shoe has
wings. Exactly you said S 380
style. We put window back without
balance due to already broken.
Is it okey? I will be not touching
window. I have to get part first
and find handyman.
Thank you so much for your help!!

3 user uploaded images

Lauren from SWISCO

May 4, 2023 7:43 am

Thank you for confirming!

Based on the dimensions provided, you will need the S380-27 channel balance with a 2660 stamp option. Please review and let me know if you have any additional questions!
