Window channel balance

Question

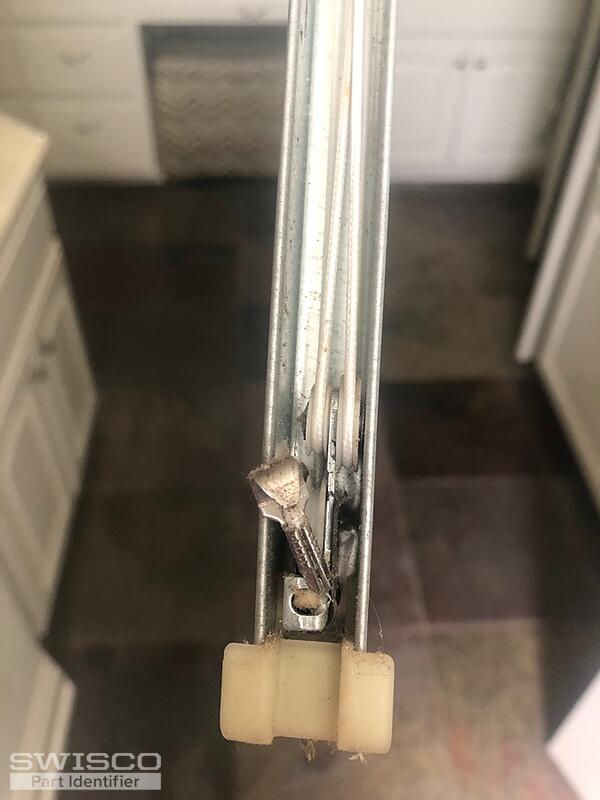

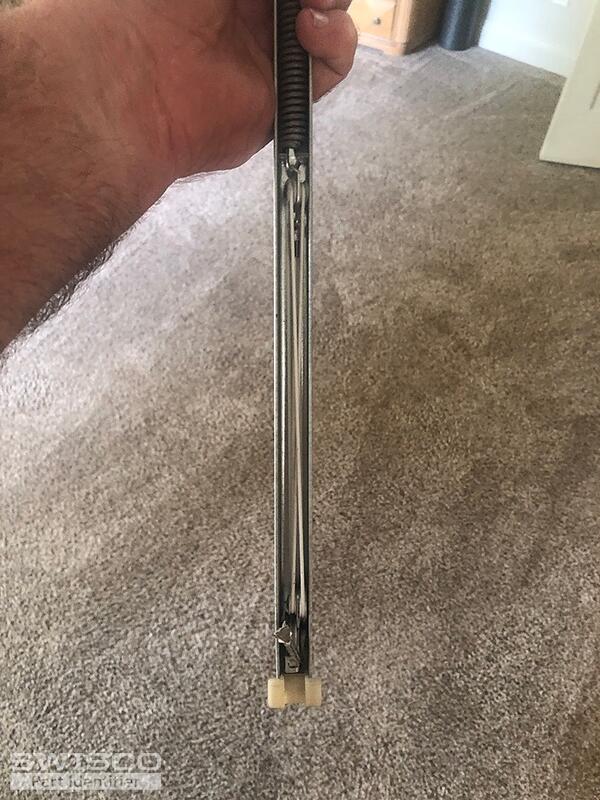

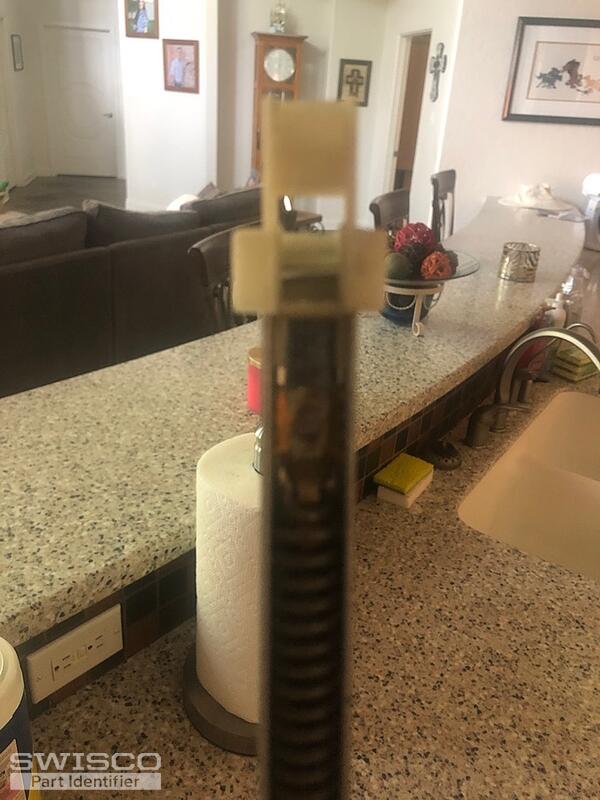

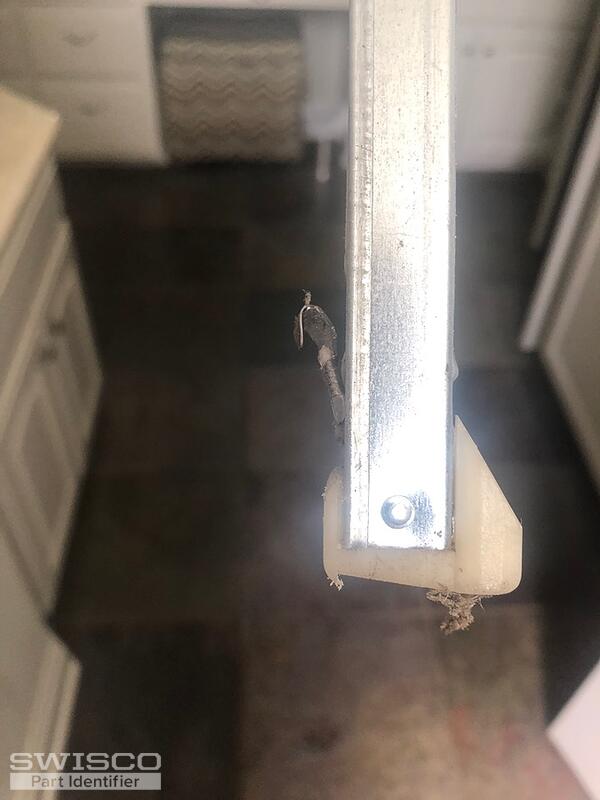

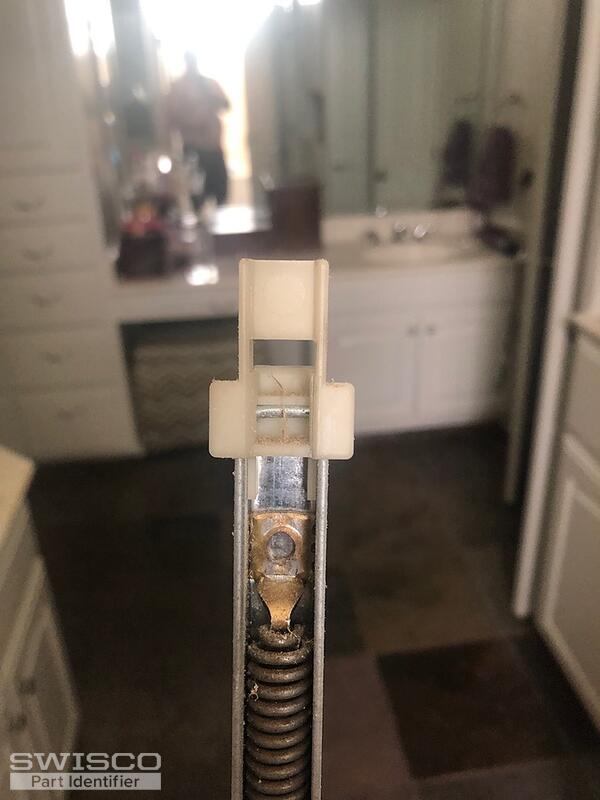

The part is 27" long and 1/2" wide
it has these numbers and lettering on it
26 6 GW CMC 11

Jasmine · Accepted Answer

Thanks for writing in. It looks like you have either the S380-27 with a 1" shoe or the S385-27 with a 1-3/32" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

Let me know if it does not match either measurement. You'll need to select the 2660 stamp for a 30 to 33lb window.

Comparison of the S378, S380 and S385 balance shoes.
