Window channel balance code 2820

A quick learner from Ormond Beach FL says:
March 27, 2022
Hi- The steel windows were installed in 1982, when the house was built.
The window channel balance is 29 inches long. The code on the side of the spring balance is 2820. We have no idea of the manufacturer of the windows. The depth of the window channel balance is 5/8 inch. I need a price on new wndow channel balance units. Thanks. Peter Gilfoil

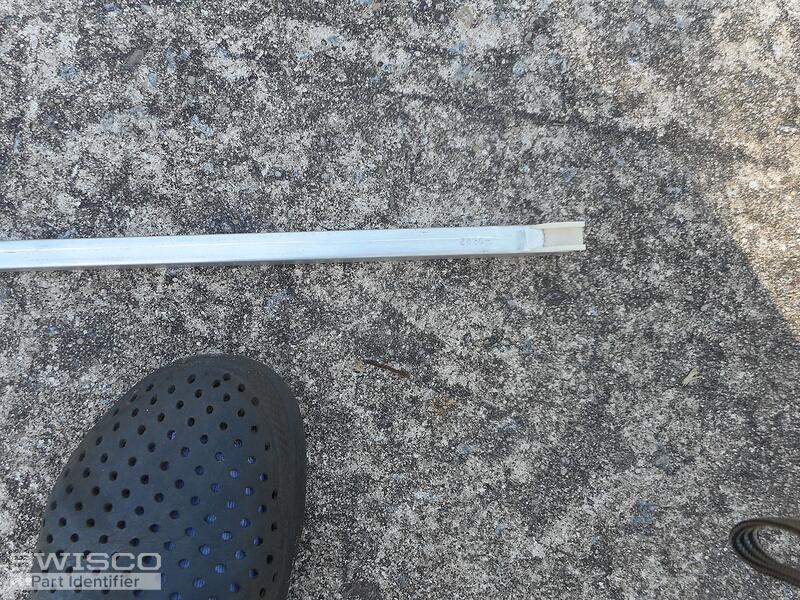

Thumbnail of the uploaded file named Window channel balance code 2820.JPG

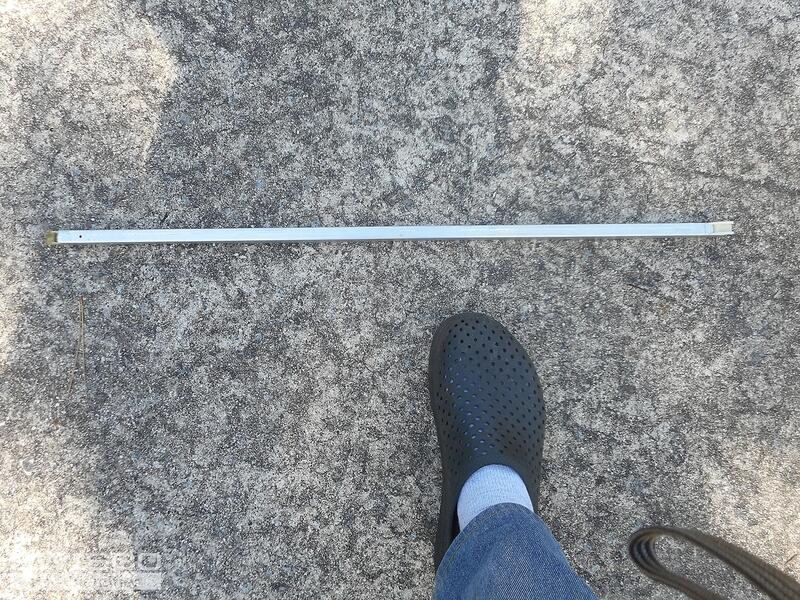

Thumbnail of the uploaded file named Window channel balance is 29 inch length.JPG

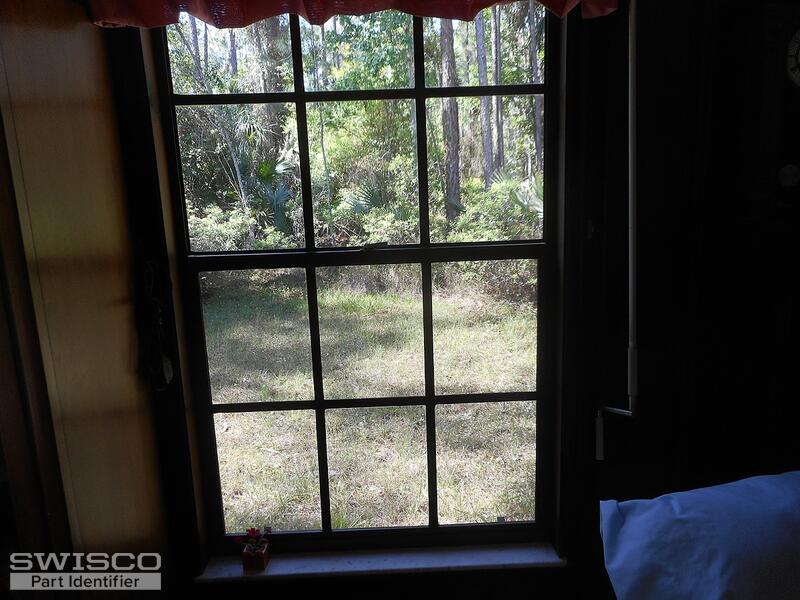

Thumbnail of the uploaded file named Windows installed when house built in 1982.JPG
Profile picture of Bob
Bob from SWISCO responded:
March 29, 2022

This appears to be either an S351-29 or S390-29. The difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. For a stamp option choose 2820.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
29" Series 351 Channel Balance
29" Series 351 Channel Balance
S351-29
$11.10
29" Series 390 Channel Balance
29" Series 390 Channel Balance
S390-29
$11.10
