Window channel balance needs replacement

Quick Learner from VICTORVILLE
1/2 width length 16" window size length 34' 1/2 by 22' 5/8 width

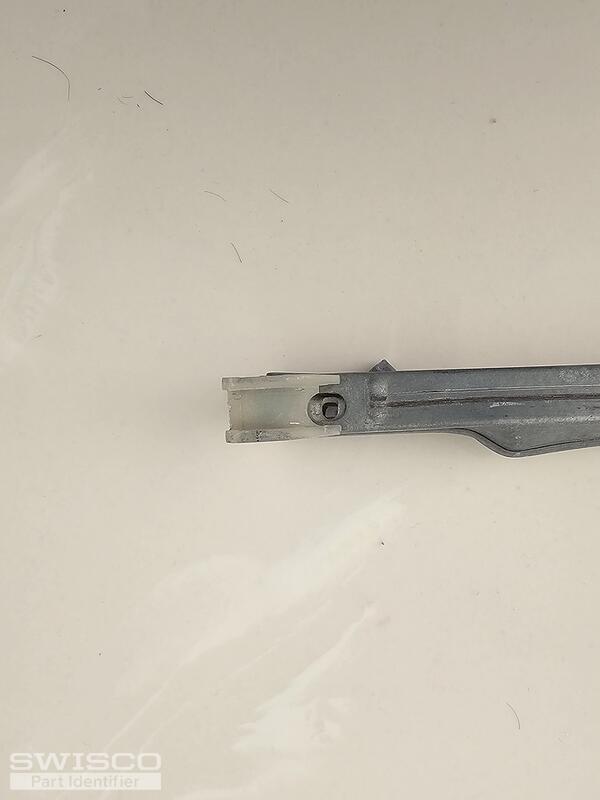

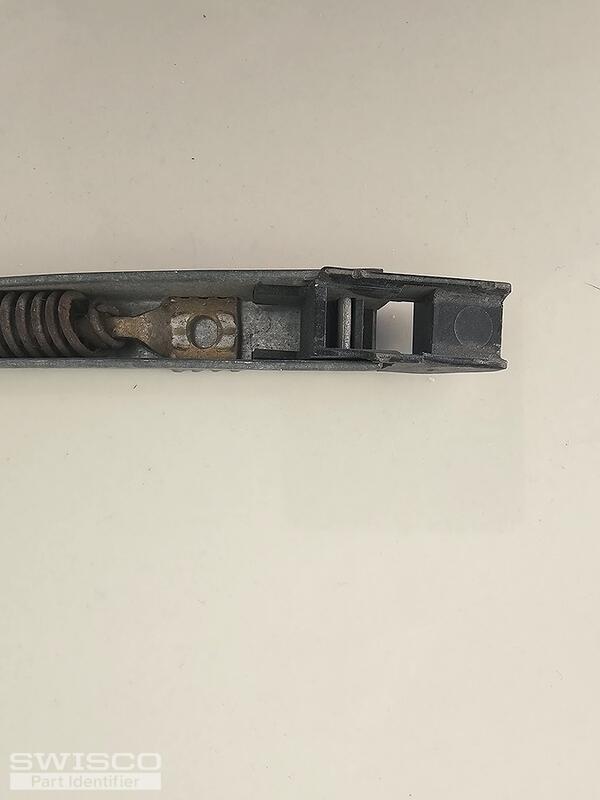

2 user uploaded images
3 Replies
Quick Learner from VICTORVILLE
Window channel replacement 16'length by 1/2 width

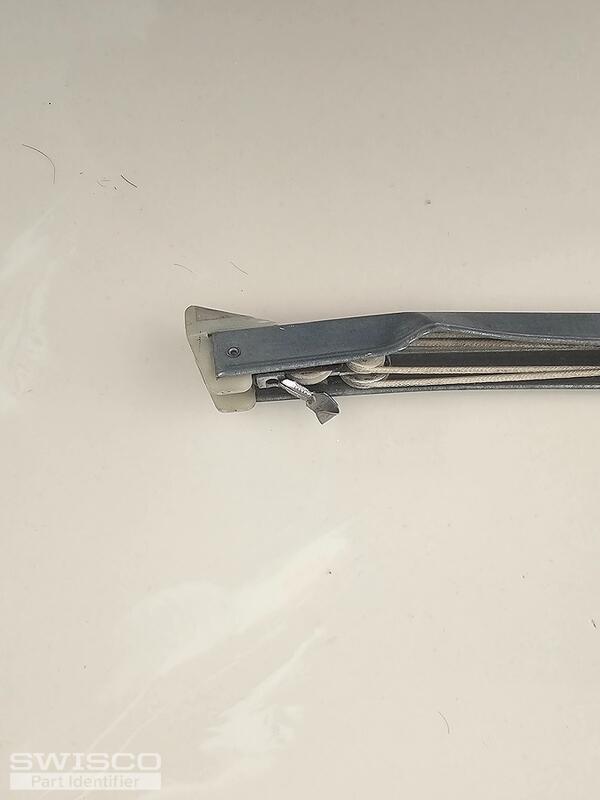

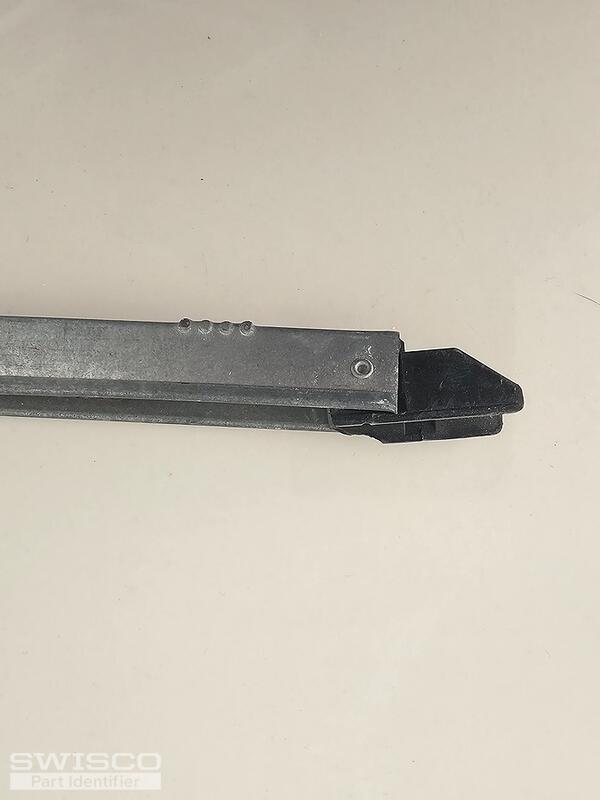

5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

If the metal channel measures 16" long, you could have either the S351-16, with a 15-002 bottom attachment, or S390-16, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
