Window channel balance replacement

Quick Learner from San Diego

Jan 11, 2021 2:04 pm

Hello, I'd like to replace the two window channel balances. The part number stamped (barely visible) is 25 2 JV CMC 7.
The top is non winged and the bottom is winged.
Which part from your inventory is comparable?
Thank you

2 user uploaded images

5 Replies

Bob from SWISCO

Jan 13, 2021 9:21 am

Thanks for posting. I am confident we can help, as this is a 26" long non-tilt channel balance with a stamp code of 2520 (which is equivalent to the 25-2 stamp on your old balance). I just need to see closer pictures of the attachments or nylon fittings on both ends of the metal channel. From there I should be able to fully identify the Series you need.

Quick Learner from San Diego

Jan 13, 2021 12:00 pm

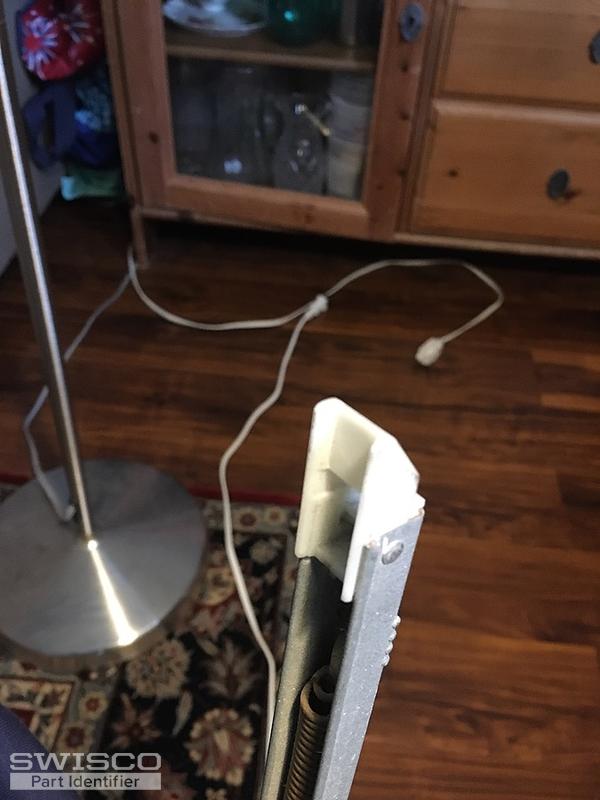

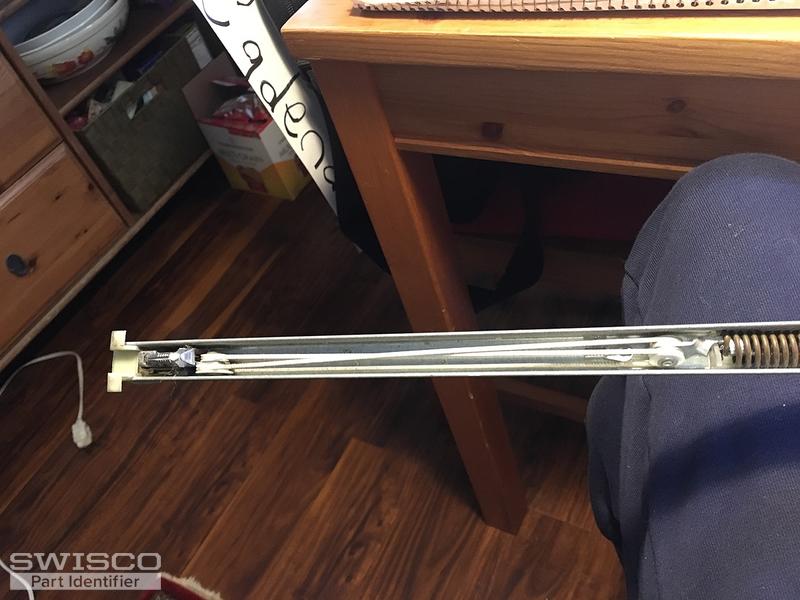

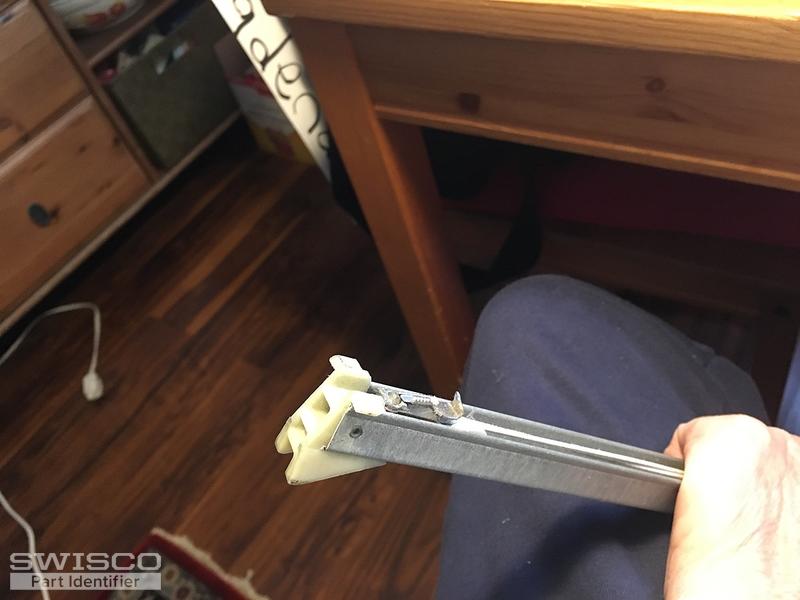

Thanks for helping me out. Here are a few more pictures. Let me know if you need more. The first picture is the top and the other 3 are bottom. Thx

4 user uploaded images

Bob from SWISCO

Jan 13, 2021 12:48 pm

Perfect, thanks. Looks like the top nylon fitting has no wings, or side tabs, as the bottom fitting does. In that case, this matches our S350-26 Channel Balance. Choose a stamp option of 2520.

Quick Learner from San Diego

Jan 13, 2021 1:25 pm

Thanks so much! Just placed my order!
