Window channel balance replacement 4ea

Start a new Discussion

Home Owner from San Bruno CA

Oct 11, 2024 1:20 am

Need 4ea channel balances.

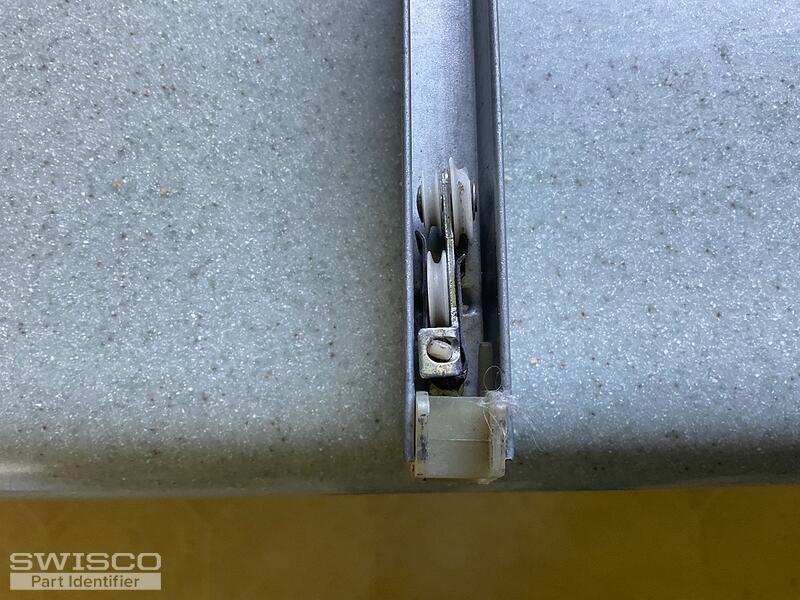

4 user uploaded images

6 Replies

Jasmine from SWISCO

Oct 15, 2024 10:21 am

Thanks for writing in! Your window balance reminds me of either the Series 351 Balance with a 1" shoe or the Series 390 with a 1-1/8" shoe. To determine which of these is the correct replacement, you'll need to confirm the length of the metal channel (not including the attachments) and the measurement for the depth of your shoe.

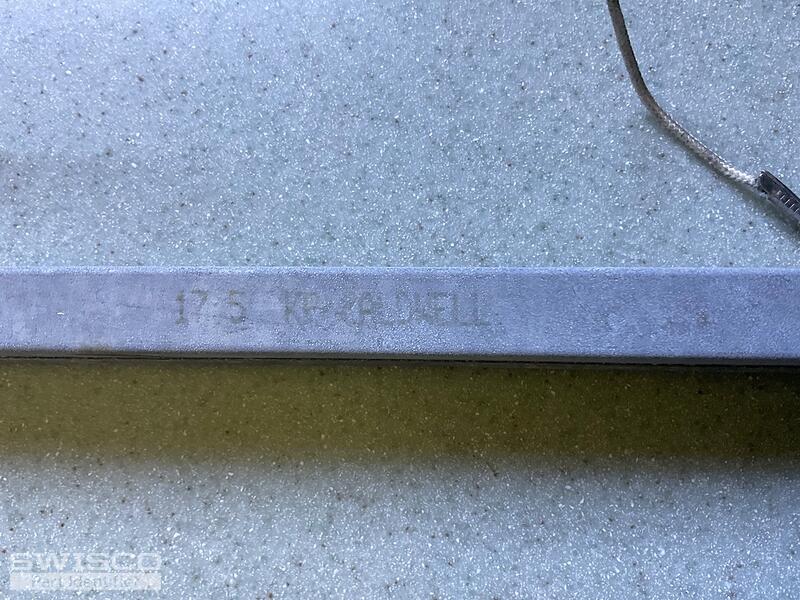

Regarding the stamp, this isn't one I've come across before, so I'm not able to cross-reference it with the stamps on our balances. That said, I will need to know the exact weight of your sash.

Comparison of the S351 and S390 balance shoes.

Home Owner from San Bruno CA

Oct 20, 2024 1:40 pm

The depth of the shoe is 1 1/8 inches; the metal channel is 18 inches long (not including attachments) and the sash weighs 14 lbs. There were two types of pulley arrangements, two different channel balances. The first four images that I sent to you show the style I want, this style was not broken. I have included, here, now, two images of the one that broke to make you aware that if at all possible I do not, repeat, do not want this style of pulley arrangement. The two types are completely interchangeable, in fact, I did interchange them to put, what I consider the best ones, in positions that got the most use.

2 user uploaded images

Jasmine from SWISCO

Oct 21, 2024 9:21 am

You'll need the S390-18. There are two stamp options that can support a 14lb sash; the 1730 (supports 12 to 14lbs) and the 1740 (supports 14 to 17lbs). It would be a good idea to double check and confirm the exact weight to confirm which of these is the stamp you need.

This is the only replacement recommendation we have for the balance you have here. The pulley system appears to match what you've shown in the first four photos.

Home Owner from San Bruno CA

Oct 21, 2024 9:19 pm

I would like to purchase 4 of the 1730.

Jasmine from SWISCO

Oct 22, 2024 8:37 am

You may complete your purchase online using either the link provided to you in my response above or the link of the balance tagged below this thread. If you need assistance with placing the order, our customer service team can be reached at (888) 991-1929, Monday - Friday 8:00am - 4:30pm EST.

Have a great day!
