Window channel balance replacement

A quick learner says:
February 24, 2020

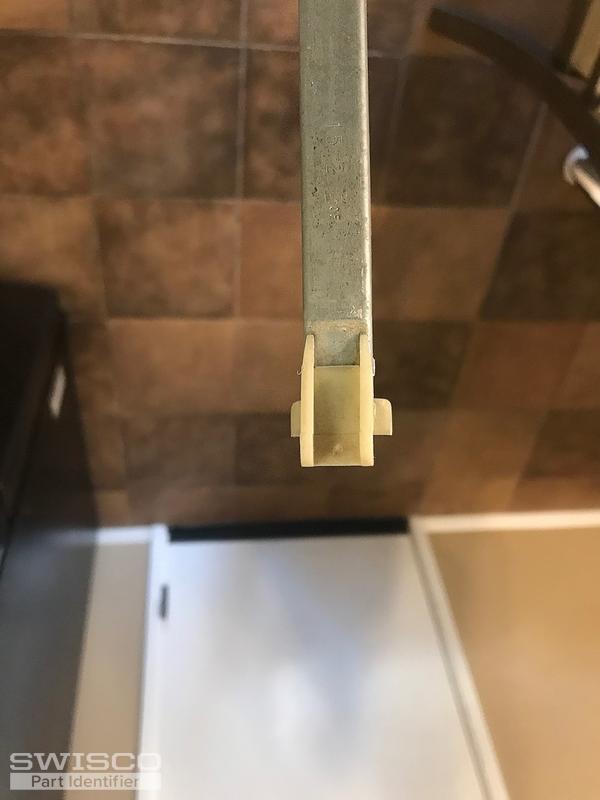

One is 22 inch long and the other is 16in long .
Thumbnail of the uploaded file named 63735D99-652C-4130-98CE-7CC1BE30508E.jpeg
Thumbnail of the uploaded file named 424D460B-2237-42AA-9DDC-F5549ECE949A.jpeg
Thumbnail of the uploaded file named BECD8BAE-331E-4875-A1FA-C4F1E498A7D2.jpeg
Thumbnail of the uploaded file named C9A3058E-B42B-46FB-8C6A-70D53065569F.jpeg
Thumbnail of the uploaded file named 99C57FB0-B879-43D5-B7DB-D59C50A4747C.jpeg
Profile picture of Casey
Casey from SWISCO responded:
February 25, 2020

Please have a close look at our Series 380 and Series 385 channel balances. Depending on the 'depth' measurement of your bottom balance shoe will determine which of the two balances would work. For the one that is 16", see our S380-16 and S385-16. Whichever one chosen will go with a 1520 option that supports a sash weight of 6-10 pounds. The balance that is 22" in length, see our S380-22 and S385-22. Whichever one chosen will go with the 2120 option that holds a sash weight of 8-12 pounds.

Alternate view of 15-004
Alternate view of 15-004
16" Series 380 Channel Balance
16" Series 380 Channel Balance
S380-16
$9.34
16" Series 385 Channel Balance
16" Series 385 Channel Balance
S385-16
$9.34
22" Series 380 Channel Balance
22" Series 380 Channel Balance
S380-22
$9.59
22" Series 385 Channel Balance
22" Series 385 Channel Balance
S385-22
$9.59
