Window channel balance and foot

Question

I am looking for 29" channel balance and foot for a double hung window.

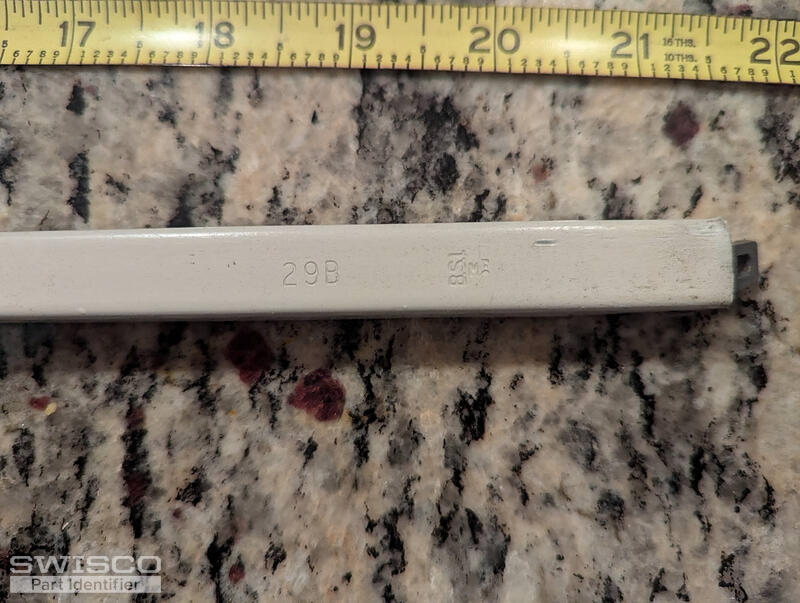

Stamping on channel is 29B BS1.

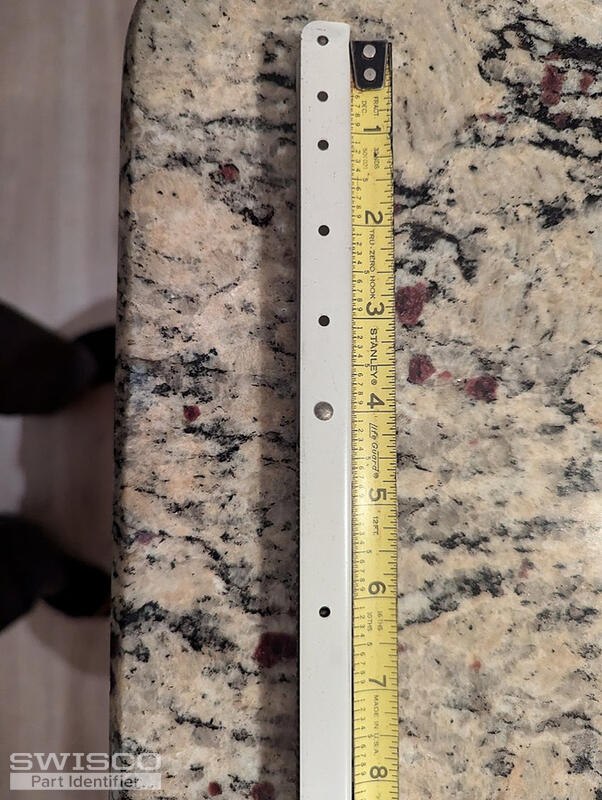

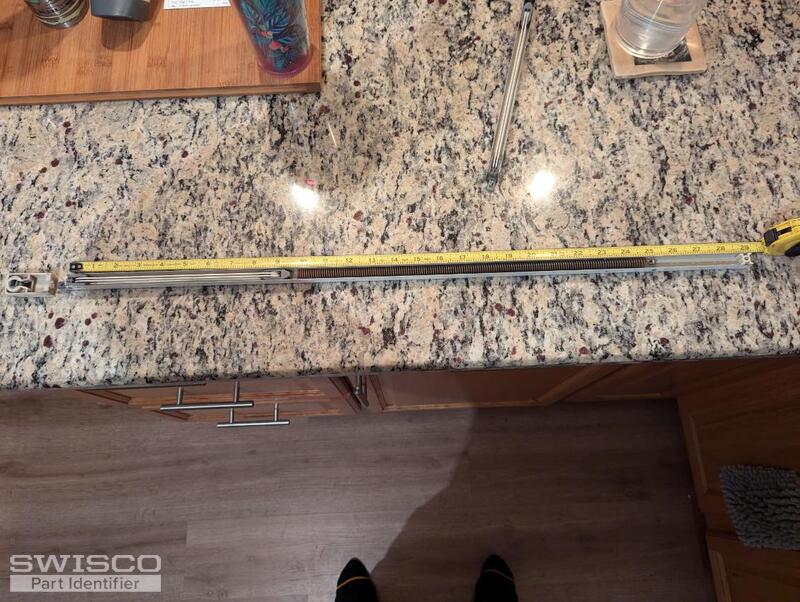

Channel measures 29" x 9/16" x 1/2"

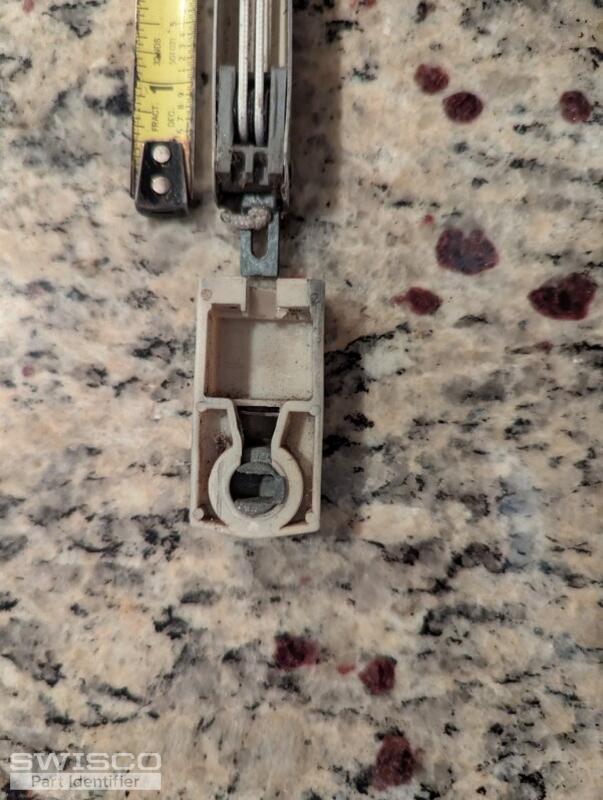

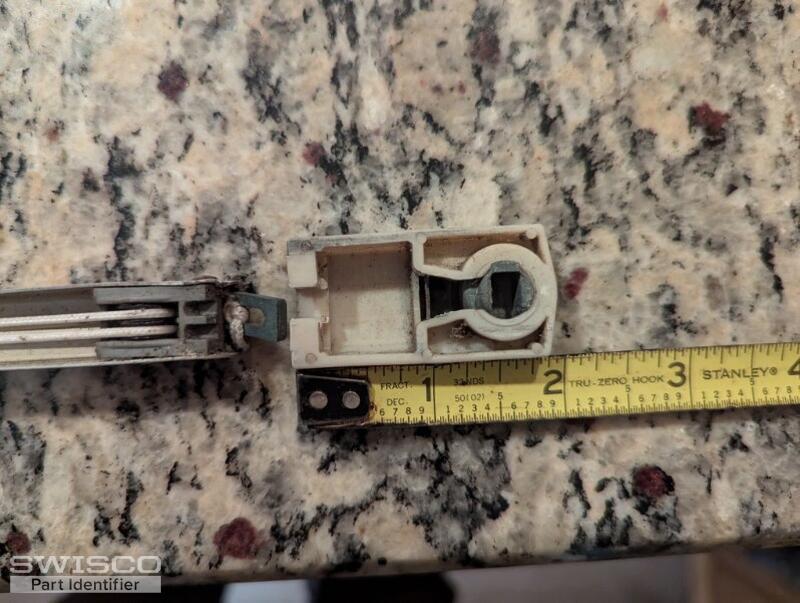

Foot measures 1 15/16" x 15/16" x 1/2"

Lauren · Accepted Answer

Hello, thank you for posting,

Please review the Series 770 channel balance as a suitable replacement option. See the S770-29 with a 29B stamp option that can support a 12 to 18 pound window sash.

The closest we carry to your original pivot shoe is the 15-179 or 15-167. Please double check the dimensions to confirm if one of these could fit in your window channel. The main dimensions to consider is the width and thickness of the shoe.

Let me know if you have any additional questions!

Alternate image for 15-179

Alternate image for 15-167
