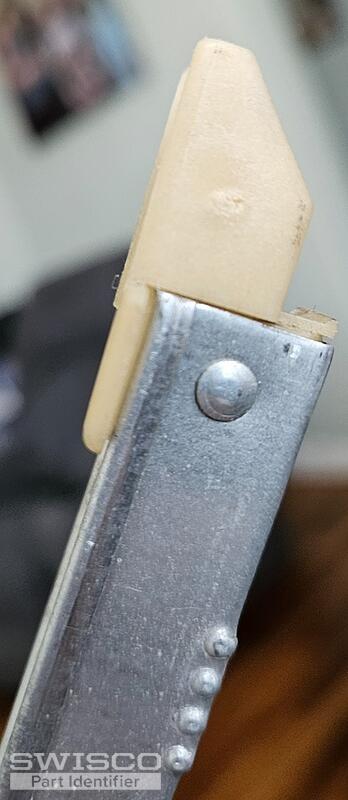

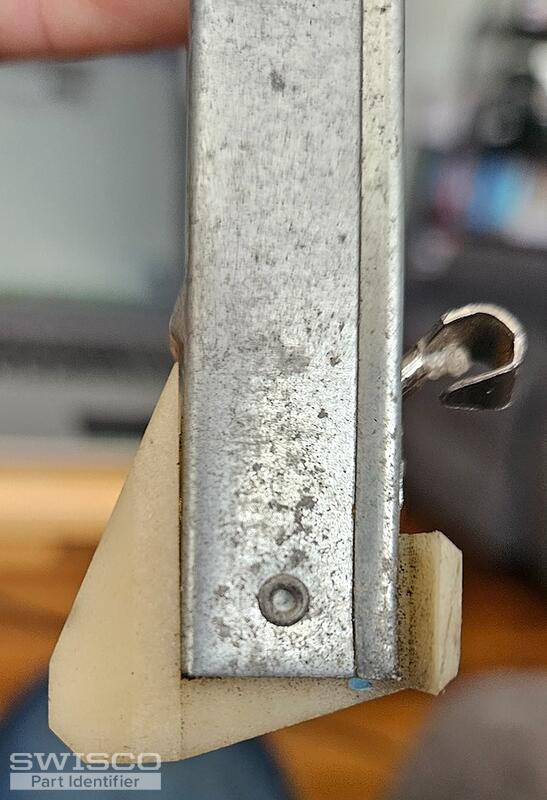

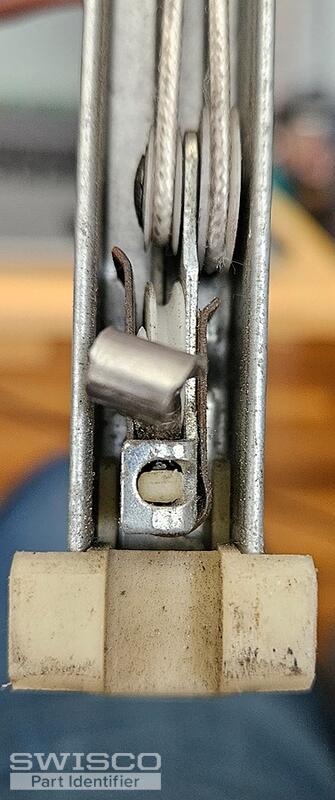

Window channel balancers 9/16 wide 9/16 deep, bottom and top guides have wings , bottom guide is 15/16 wide 1 1/16 deep Top guide is 15/16 wide 3/4 deep

Contractor from Grove City Ohio
Need to find 2 of these or equivalent please.
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

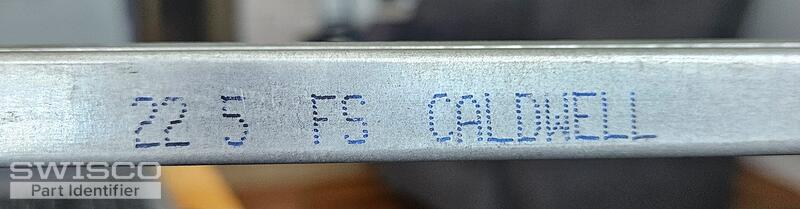

Thanks for posting! Since your balance shoe has a 15/16" depth, I believe it may just be slightly worn down due to wear and tear. That said, I believe your balance is the Series 380 with a 1" shoe depth. Since it is marked with a 22 5, you'll need the S380-23 with a 2250 stamp option.

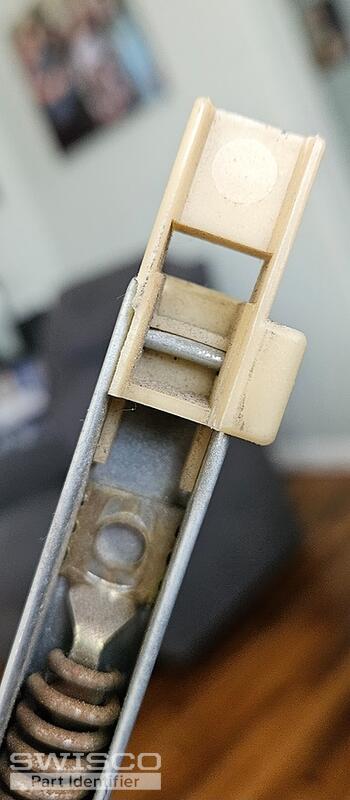

Close up view of the S380 balance shoe.
Close up view of the S380 balance shoe.
