Greetings:
working on lubing window balances and found several that need replacing. I attached 5 photos and will attach a couple more with my next post.
if you can determine the part, I'll need 3 or more.
Thanks!
Marc
Window channel balances
Quick Learner from Sacramento, Calif
Jun 16, 2018 2:37 pm
10 Replies
Tom from SWISCO
Jun 18, 2018 10:26 am
Hi, Marc. I'm seeing Series 390 balances, which are known for their signature 1-1/8" shoe, shown below. Is that what you have on your balance?
71
Quick Learner from Sacramento, Calif
Jul 2, 2018 11:42 pm

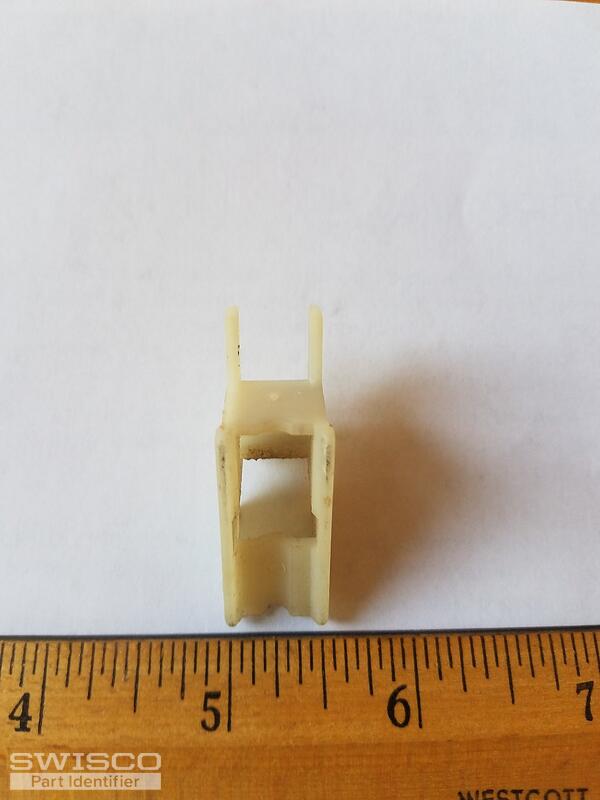

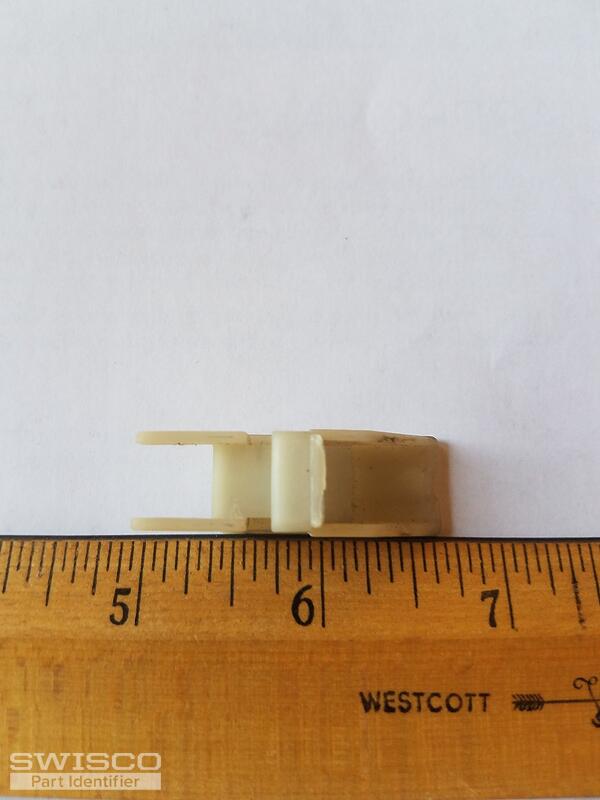

In a prior email, you asked for confirmation about one of the parts. I couldn't tell so I punched out the rivet and took more up close pictures. I apologize for the delay in getting back to you, but I've been on the road. I supplied the reference number above because the link in the email dated 06/16/2018 at 11:16 am didn't work.
Thanks.
Marc
5 user uploaded images
Tom from SWISCO
Jul 5, 2018 12:46 pm
Hi, Marc. Welcome back.
Unfortunately, there are two issues here. Firstly, this is the wrong attachment. You're showing me the top, but you need to the look at the bottom.
The second issue is that it's much better for you to take the measurement and write it out for me. Between you angling the photo and me trying to read it, it introduces two different ways for us to mess it up!
Take a look at the depth of your bottom attachment, and let me know what the measurement is, if you're having trouble.
Quick Learner from Sacramento, Calif
Jul 13, 2018 12:52 am
Ben:

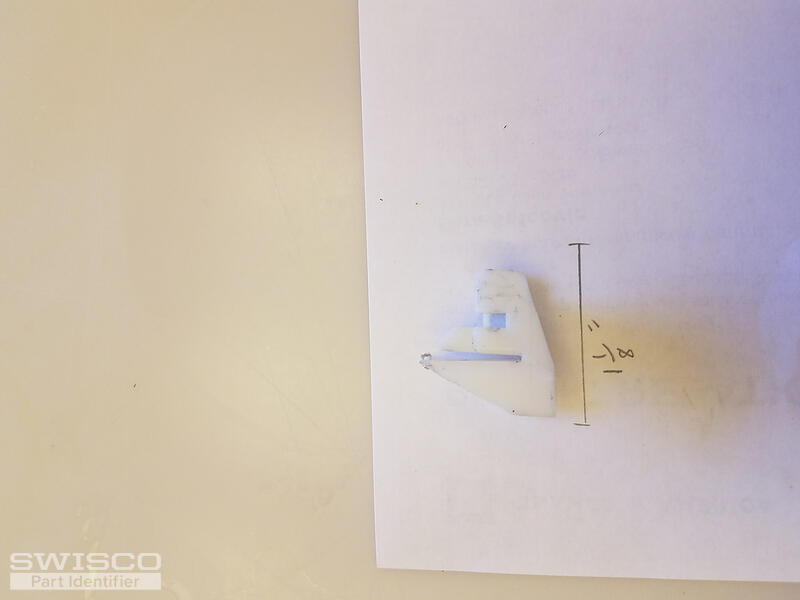

see attached photos. I think we have a match but want to confirm with you.
sorry for the delay.
Regards,
Marc
1 user uploaded image
Tom from SWISCO
Jul 13, 2018 8:14 am
Yes, we do have a match! Series 390, it is.
Quick Learner from Sacramento, Calif
Jul 16, 2018 8:13 pm
So, to confirm..I should order the 390? Thanks!
Tom from SWISCO
Jul 17, 2018 8:06 am
Yes, Series 390 is correct.
Quick Learner from Sacramento, Calif
Sep 6, 2018 11:37 pm
So Ben; I'm back after much time on the road. the only question I have left is how do I measure for the size? I see Swisco has a variety of sizes. How do I know which I need?
Tom from SWISCO
Sep 7, 2018 11:25 am
The size is determined by the length of the metal bar from end to end. No plastic.
