Window channel balances

A quick learner from Florida says:
18 1/2 inch long not counting the plastic Ends.
Roughly 5/8 wide
Thumbnail of the uploaded file named 15783394747465916874036031469376.jpg
Thumbnail of the uploaded file named 15783395509949178927076167259615.jpg
Thumbnail of the uploaded file named 15783395756547392096687663034511.jpg
Profile picture of Casey
Casey from SWISCO responded:

With your balance still installed, we can't make an accurate recommendation. We will need to see photos of the complete balance removed from the window. The balance in your photos appears to show some damage, so if we could have you send photos of an undamaged balance, it will greater our chances in finding the correct match. Thank you.

A quick learner from Florida says:
All ends in all windows are broken in some way.

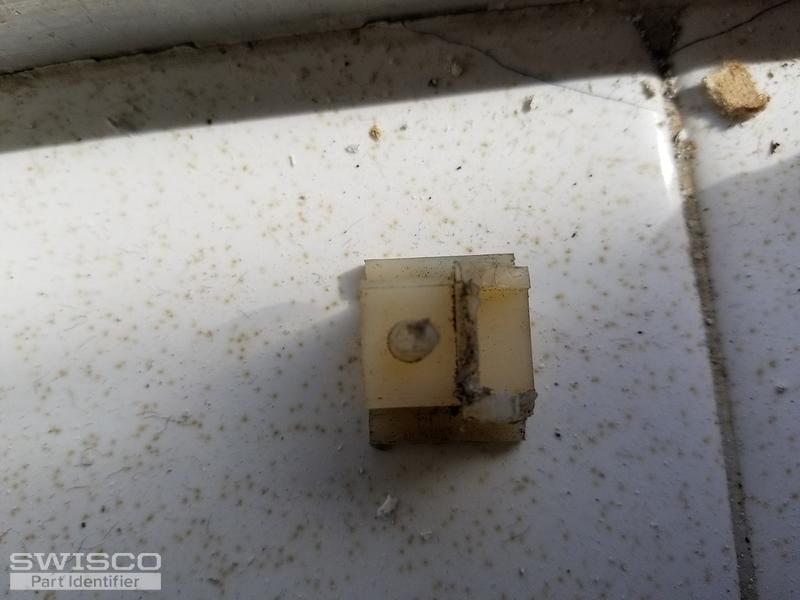

Thumbnail of the uploaded file named 20200109_115358.jpg

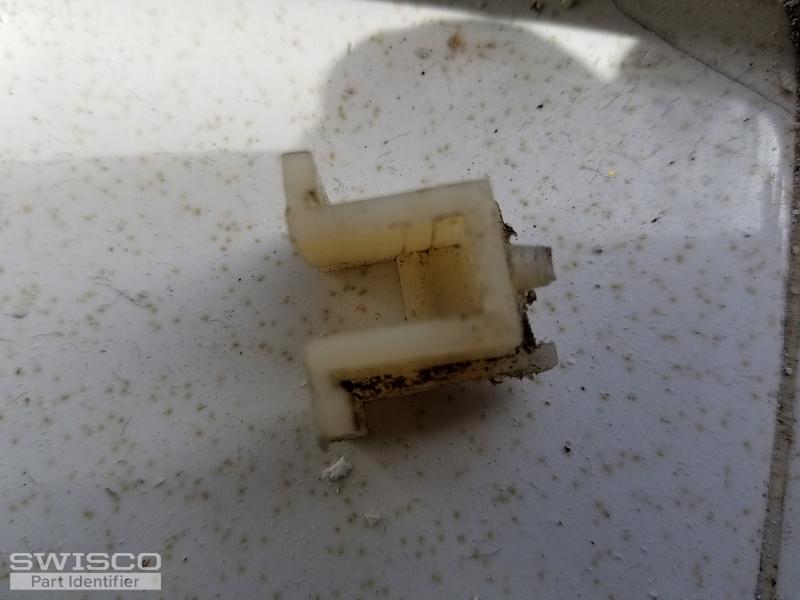

Thumbnail of the uploaded file named 20200109_115353.jpg

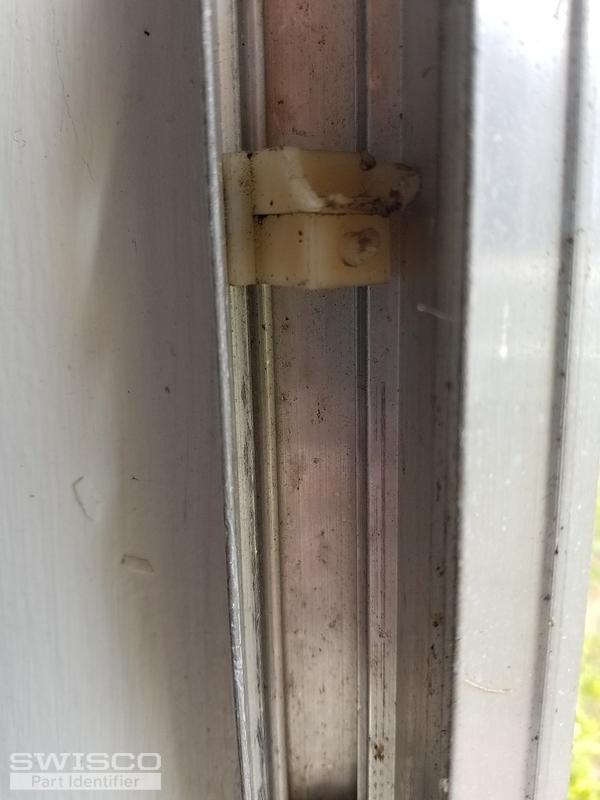

Thumbnail of the uploaded file named 20200109_115329.jpg

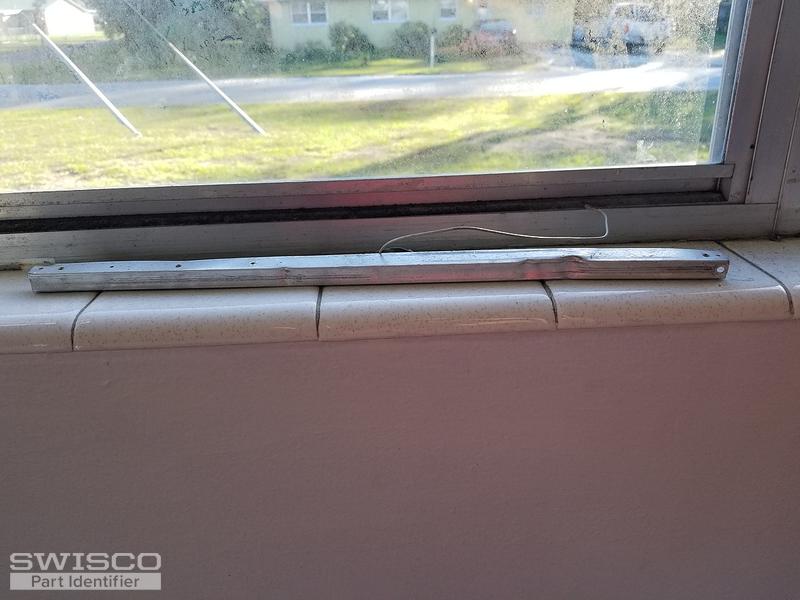

Thumbnail of the uploaded file named 20200109_091400.jpg

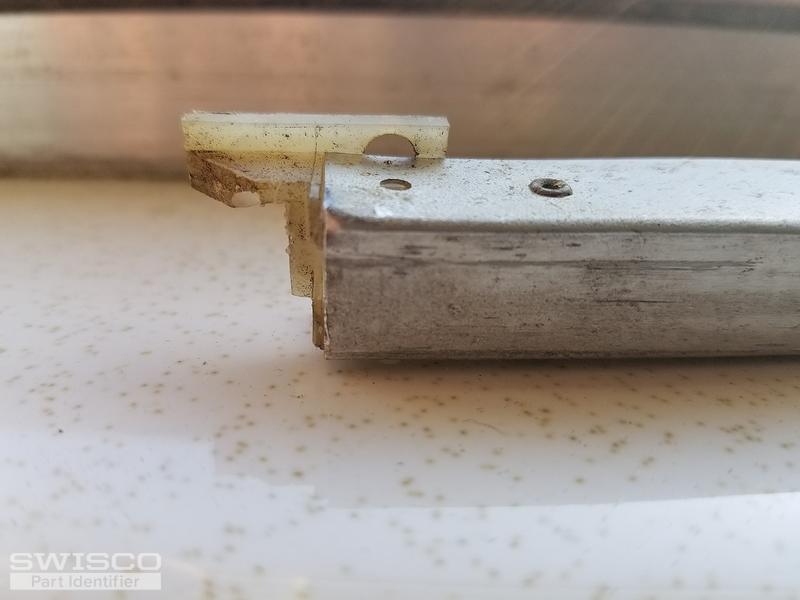

Thumbnail of the uploaded file named 20200109_091415.jpg
Profile picture of Paul
Paul from SWISCO responded:

Hey there, maybe I can help. It looks like You have a very old Pan Am window. We can still make the balance that works with it, but it will have to be a custom order. This configuration just isn't made much anymore.

Specifically, we'll be using a 19-035 top fitting and 15-007 screw-on bottom fitting. The #18 stamped on the metal balance channel represents a our more modern 1810 stamp option. This indicates that two of these balances can carry a sash weighing 5 through 8 pounds. I highly recommend weighing your sash on a scale to confirm that this is accurate. The length of the metal channel should also be 19". Please confirm that detail, as well.

If this all looks good to you, please let me know how many you need to order. I will email you a custom order link and price quote for that quantity.
