Window channel ballance # 2920X 30" aluminum tip to tip, no fittings.

Question

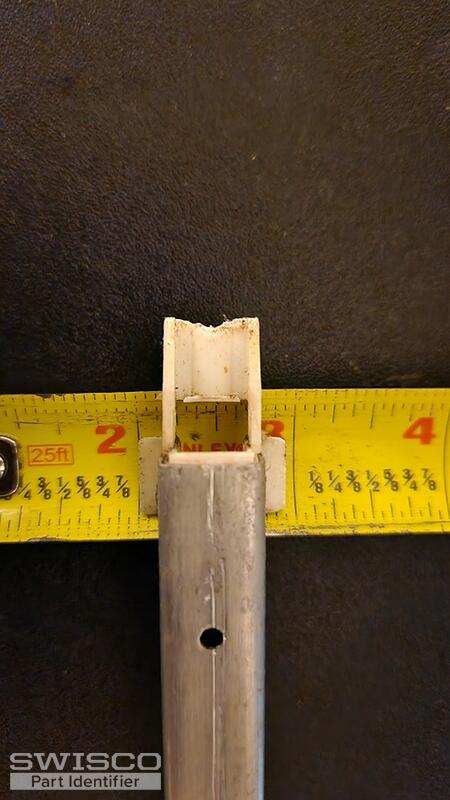

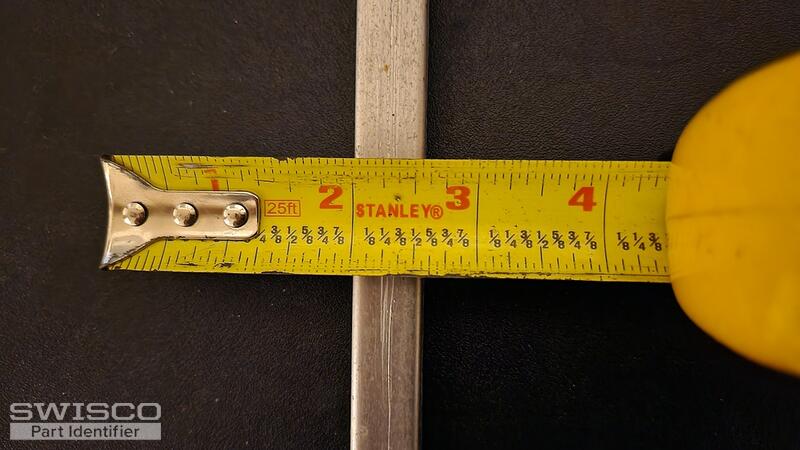

I need 4 block an tackle channel ballances I am hopeful you have what I am looking for. I have more pictures with measurements if you need them. Thank you. Anthony

Jasmine · Accepted Answer

Thanks for posting! Your balances appear to be either the S380-30 with a 1" shoe or our S385-30 with a 1-3/32" shoe. The metal channels of these balances are 30".

To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Although, there is a chance that it could measure 7/8". If so, please let me know as these will need to be a custom assembly.

You'll need to select the 2920 stamp option.

Comparison of the S378, S380 and S385 balance shoes.
