Window channel help

A quick learner from NV says:
April 7, 2023

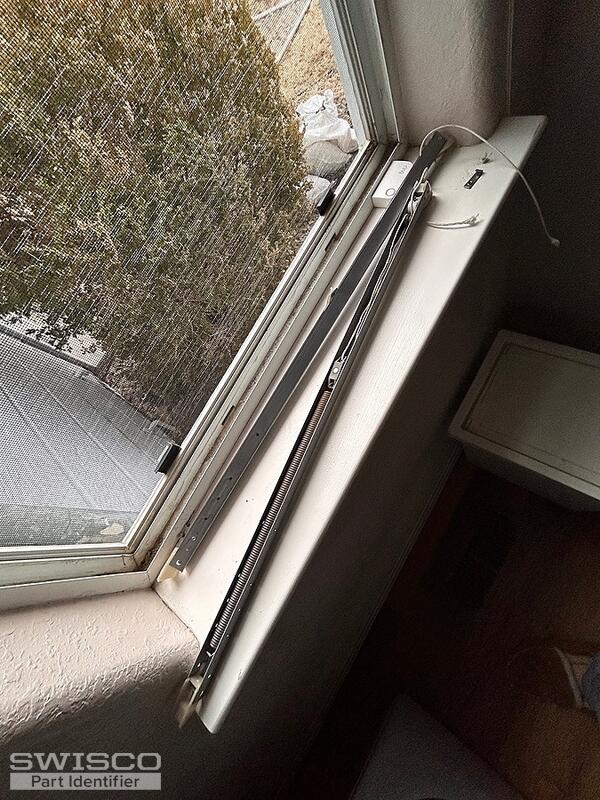

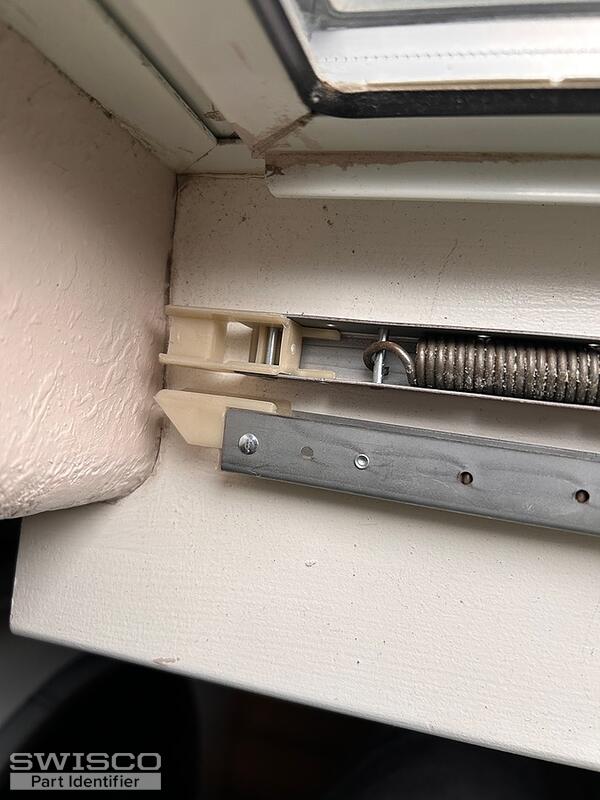

Overall length of 22 inches. Both retainer clips have come off but we only have 1 of them.
Thumbnail of the uploaded file named 681BFB09-04D8-490E-A8E6-981B4412A3E8.jpeg
Thumbnail of the uploaded file named 440184E7-BE98-465B-AC68-9369FC3DDDBB.jpeg
Thumbnail of the uploaded file named 62E6B4B7-CD2B-404B-A2C1-C12167231634.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
April 7, 2023

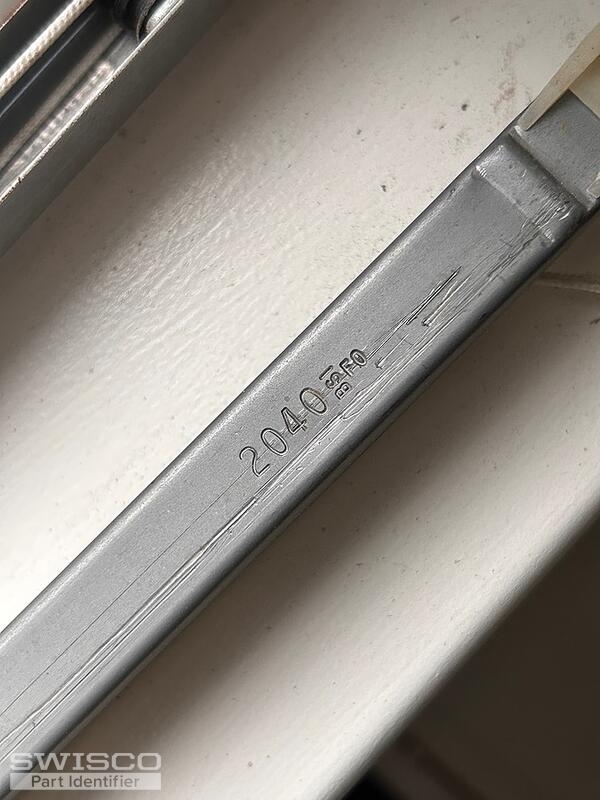

Thanks for reaching out. Based on your photos it appears you have either the S351-21 or the S390-21 with a 2040 stamp. To confirm the series need for your window, you'll need to confirm the measurement for the depth of your bottom shoe. I would also be sure to confirm that the length of your metal channel is 21" (not including the plastic attachments), given you have the 2040 stamp.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
21" Series 351 Channel Balance
21" Series 351 Channel Balance
S351-21
$9.59
21" Series 390 Channel Balance
21" Series 390 Channel Balance
S390-21
$9.38
