Window channel part

A handy person from Stephens City says:
December 5, 2017
It holds the lower double pane window panel from falling down when you are trying to open it by sliding it upward so it can stay open.
coil balance
Profile picture of Paul
Paul from SWISCO responded:
December 7, 2017

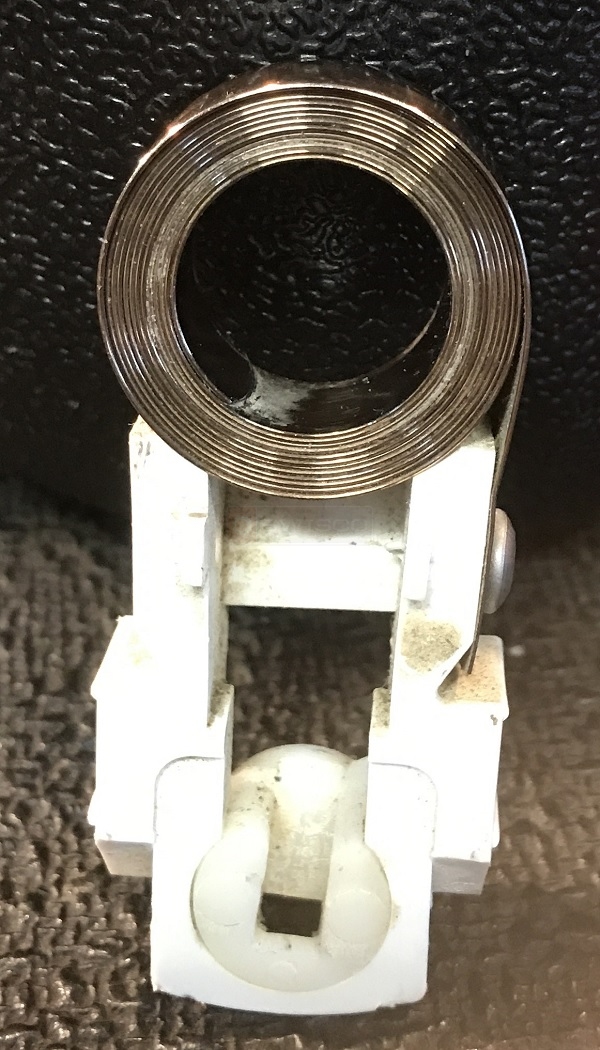

It seems you are showing us our 15-180 pivot shoe along with our Series 190 coil spring. When ordering the coil spring, you will need the spring weight number stamped on the old spring. The other two parts you may also need are our 15-186 balance spring clip and 15-182 bushing. Take a look and let us know if you agree.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Balance Bushing
Balance Bushing
15-182
$1.80
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
440 S190 Coil Balance Spring
440 S190 Coil Balance Spring
S190-440
$9.74
How to replace a window coil balance
How to replace a window coil balance
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
Removing a Triple Coil Window Balance
Removing a Triple Coil Window Balance
GUIDE
READ >
