Window channel replacement

Quick Learner from Eagle, Idaho

Jun 3, 2024 11:01 am

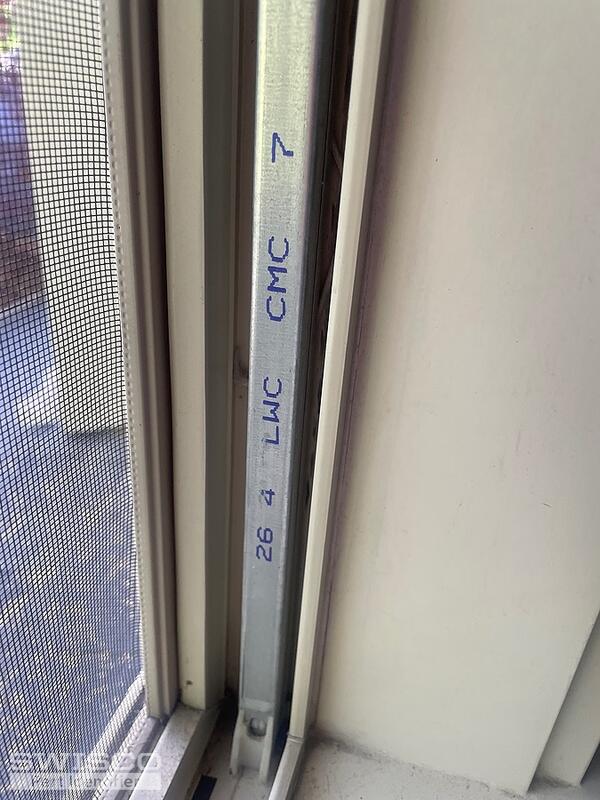

String broken on this window channel. See above photo for number on the channel. Need to know what is the replacement number on your site.

5 user uploaded images

4 Replies

Emily from SWISCO

Jun 5, 2024 11:00 am

Hello there!

We can help with this. However, I'll need one last detail to confirm if our stock replacements will work for you. Can you show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That will be located in the middle of the channel specifically.

Quick Learner from Eagle, Idaho

Jun 5, 2024 7:49 pm

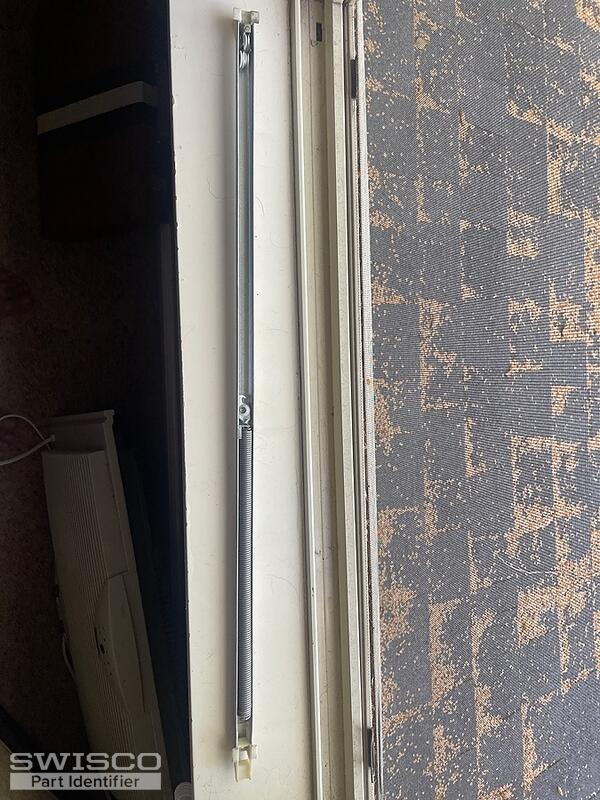

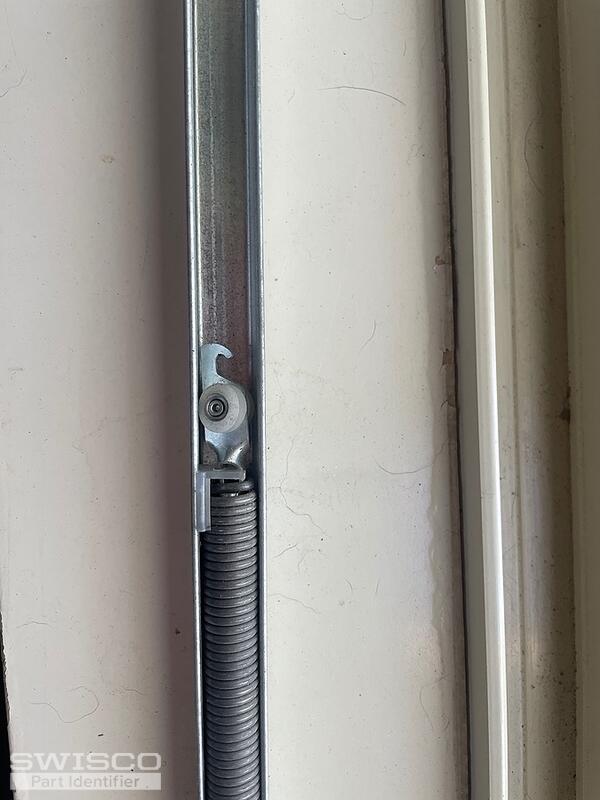

Here is the middle part you were asking for. Hopefully I took the correct picture.

2 user uploaded images

Emily from SWISCO

Jun 6, 2024 8:01 am

This is perfect, thank you! Based on the photos you've uploaded, I recommend the S380-27 or S385-27. The difference between these balances is the depth of the bottom shoe so you'll have to measure as shown below to determine the best fit. 2640 is the stamp option to select for your replacements.

Let me know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.
