Window channels

Start a new Discussion

Quick Learner from CA

Nov 30, 2021 7:56 pm

Which replacement Chanel would you recommend

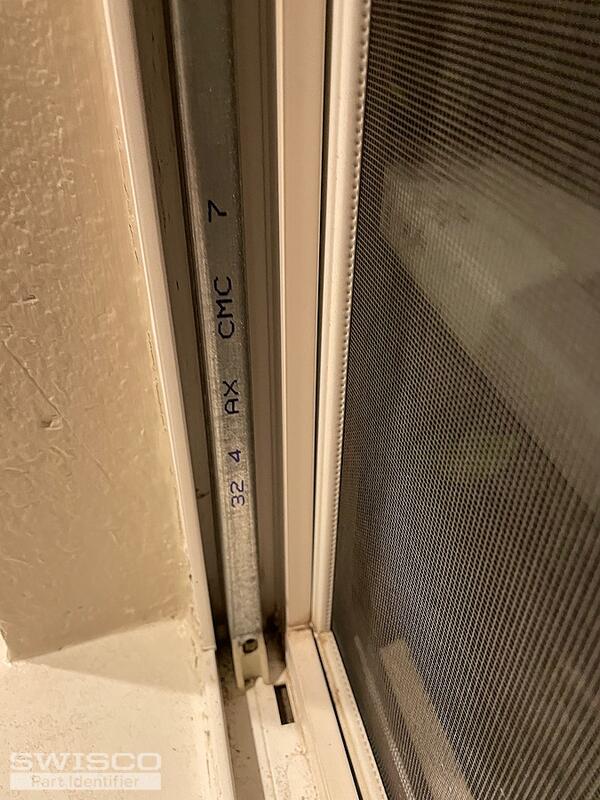

1 user uploaded image

4 Replies

Emily from SWISCO

Dec 3, 2021 11:15 am

Hello!

We'd be happy to help but we'll need you to remove an undamaged balance with the end fittings intact to compare to our inventory.

Thank you!

Quick Learner

Dec 11, 2021 5:50 pm

Pl suggest a replacement

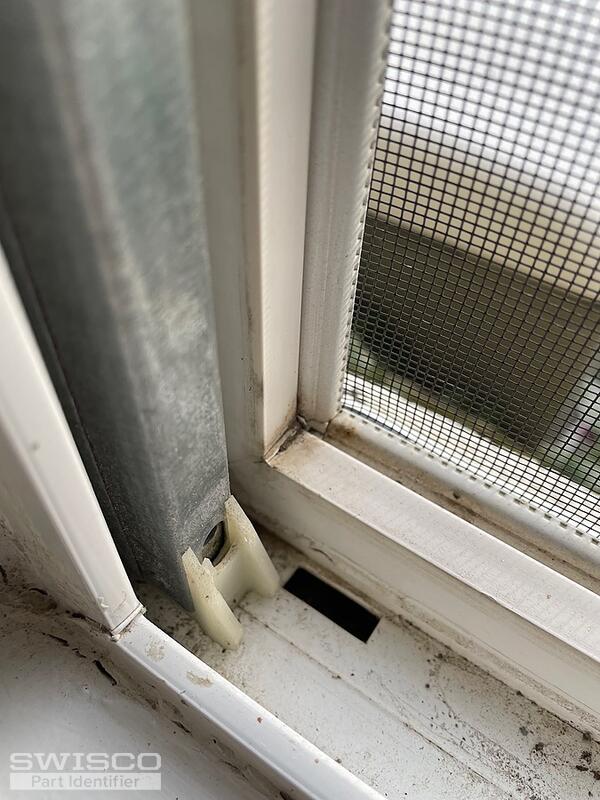

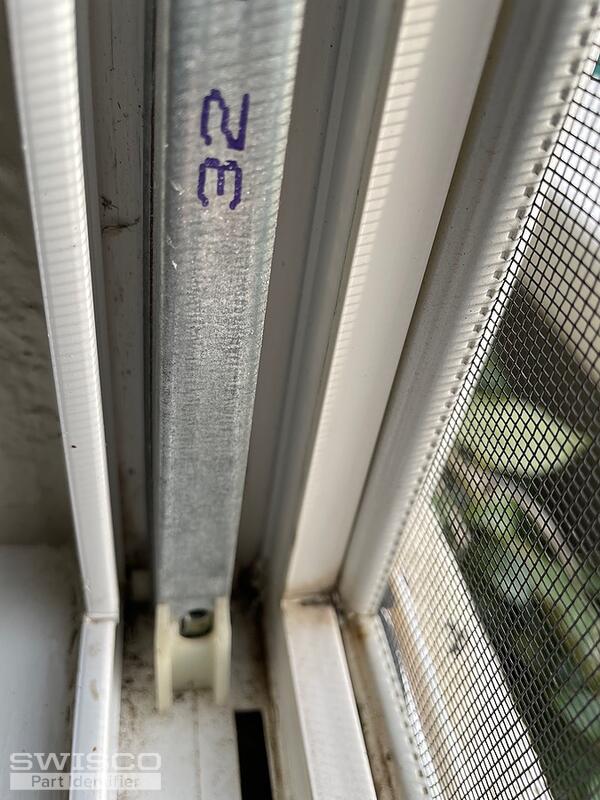

5 user uploaded images

Emily from SWISCO

Dec 13, 2021 9:39 am

It's hard to say while your balance is installed but it looks like your top and bottom fittings might have "wings". You'll need to confirm. If that's the case, you could have either the S380-33 or S385-33, depending on the depth of your bottom shoe. The S380 has a 1" deep shoe and the S385 has a 1-3/32" deep shoe. You’ll need to measure as shown below. You'll also need a 3240 stamp option.

If you have any questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
