Window channels - 18.5 inches long

Handy Person from Titusville Florida

Jun 15, 2024 11:47 am

These channels are half an inch wide and 18.5 inches long. I need help identifying the correct part to replace them with

5 user uploaded images

4 Replies

Emily from SWISCO

Jun 18, 2024 12:01 pm

Hello there!

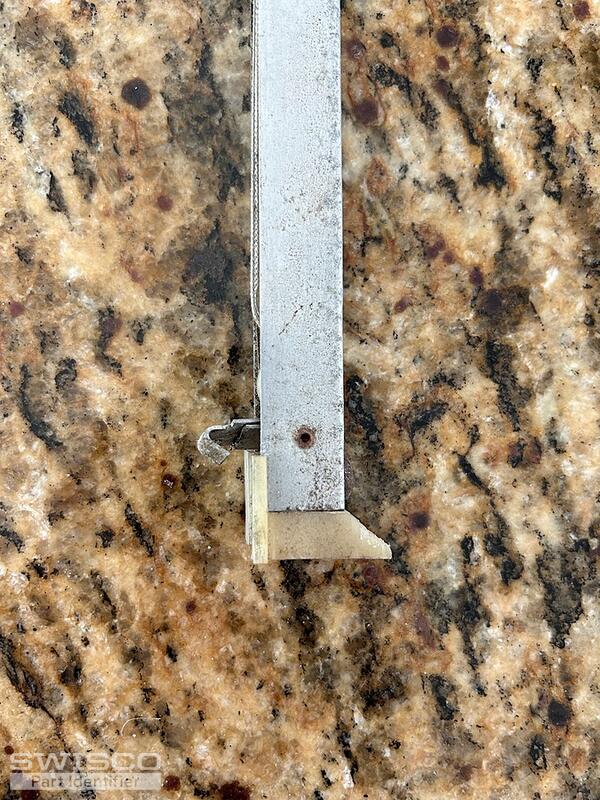

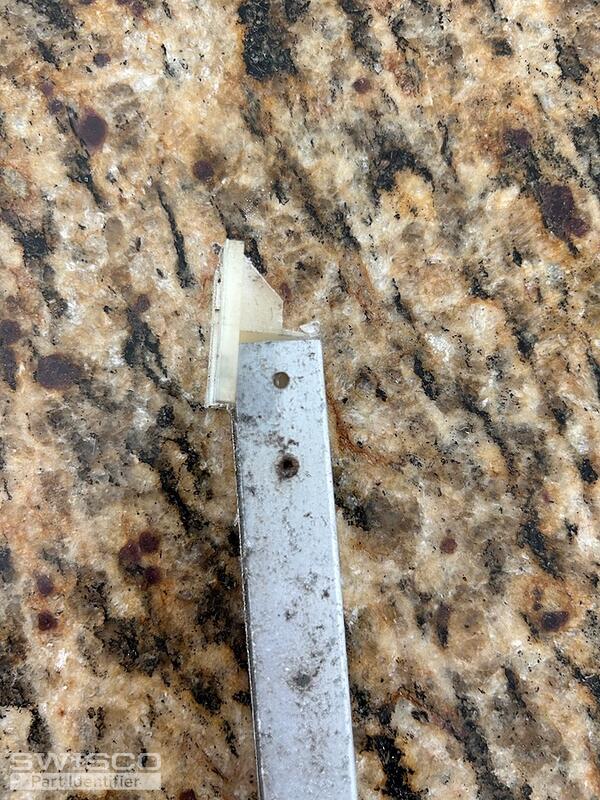

It looks like your balance uses the 19-035 top fitting and the 15-007 bottom shoe. We don't have a stock balance with this configuration but we can still help via custom order. Can you weigh the window sash on a scale and tell us the precise weight? Can you also confirm the number of balances you're looking to replace?

Handy Person from Titusville Florida

Jun 18, 2024 9:56 pm

Hi Emily,

Upon further inspection, it looks like I need a few different sizes for all the windows in my house. Below is a list of the balances with their lengths, weights, and quantities needed respectively. I believe they all have the same upper and lower fittings.

12.5" - 2.41oz - 2
18.5" - 3.17oz - 22
23" - 4.7oz - 6

Emily from SWISCO

Jun 20, 2024 7:58 am

Thank you kindly for getting back to me! The weights given are very low for a sash. I wonder if you're weighing the balance itself. What you want to weigh is the window sash. That's the glass panel that moves up and down.
