Window coil balance

A quick learner from Window jamb says:
Also, need information on a double coil 10
Thumbnail of the uploaded file named 20230410_100222.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to look into this for you but we would need to see photos of the coil springs and pivot shoe that they attach to removed from the window to compare to our selection of coil balances. In the meantime, see the videos related on this page to help you through the process. Thank you!

A quick learner from Window jamb says:
Thumbnail of the uploaded file named Michaelm8.jpg
Thumbnail of the uploaded file named Michaelm7.jpg
Thumbnail of the uploaded file named Michaelm6.jpg

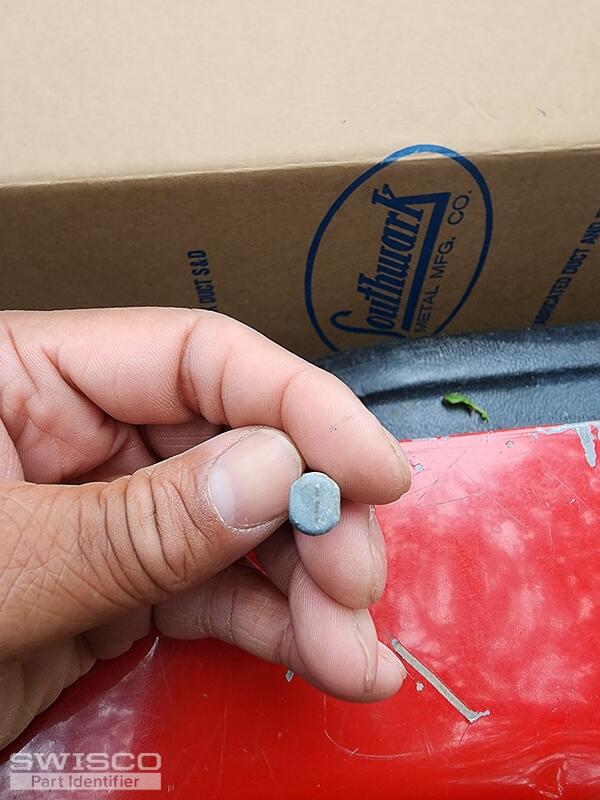

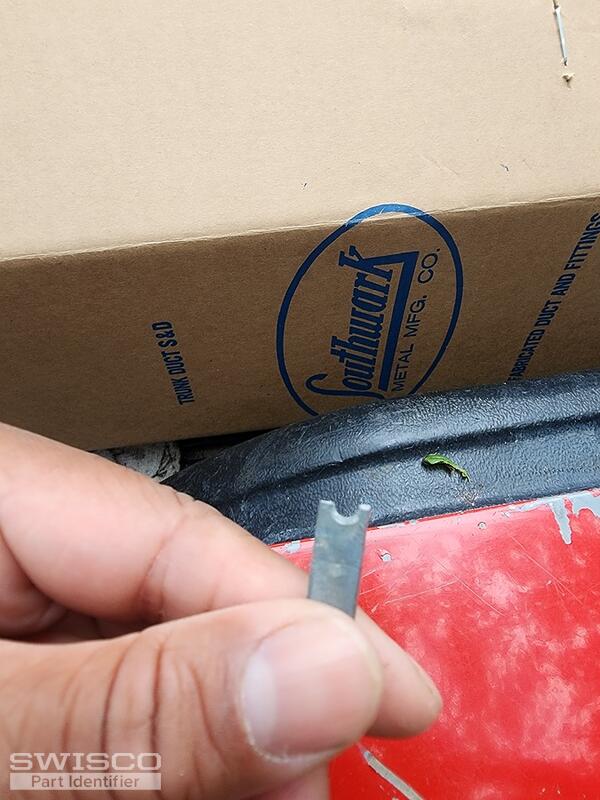

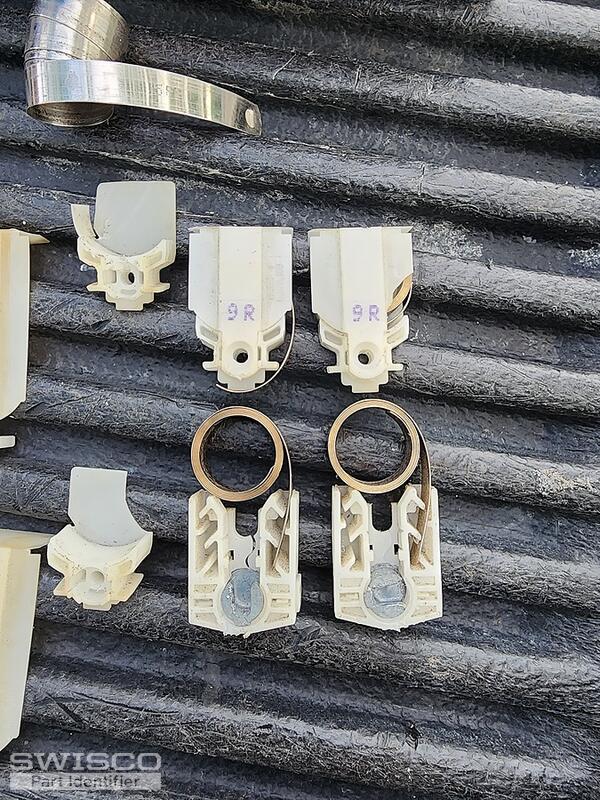

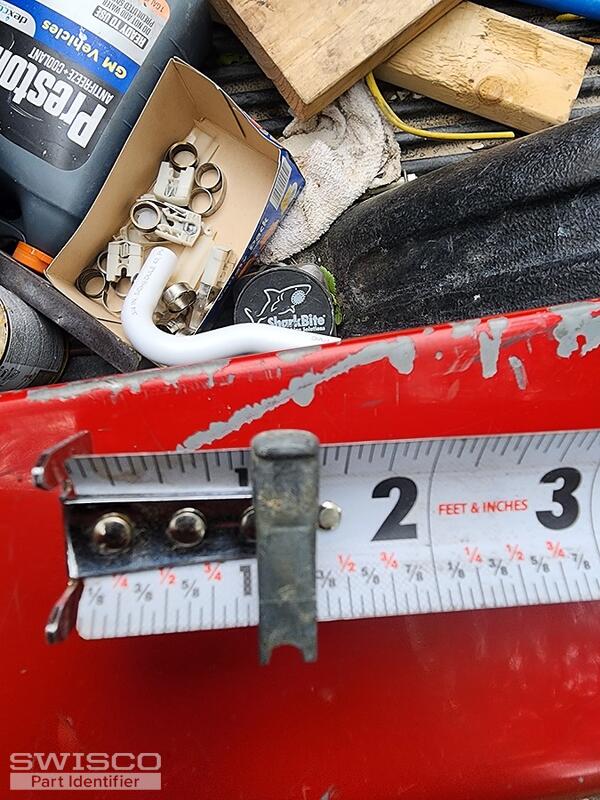

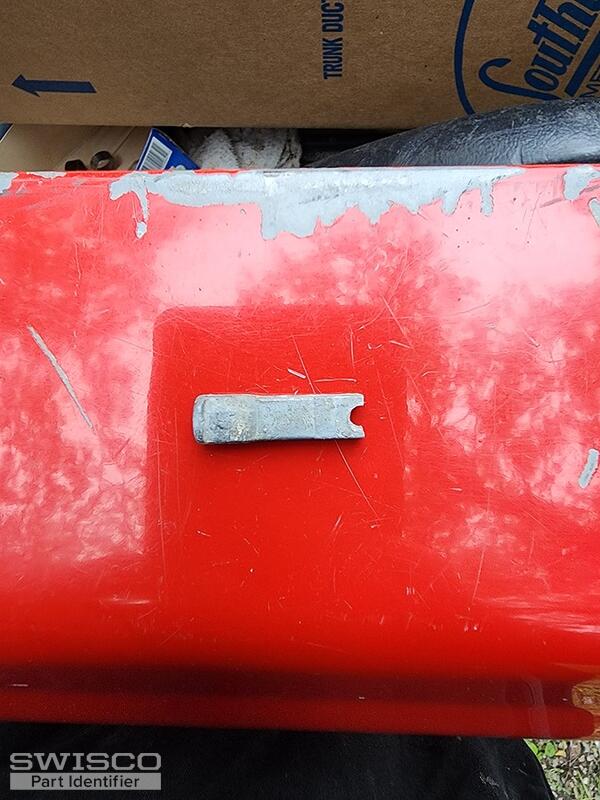

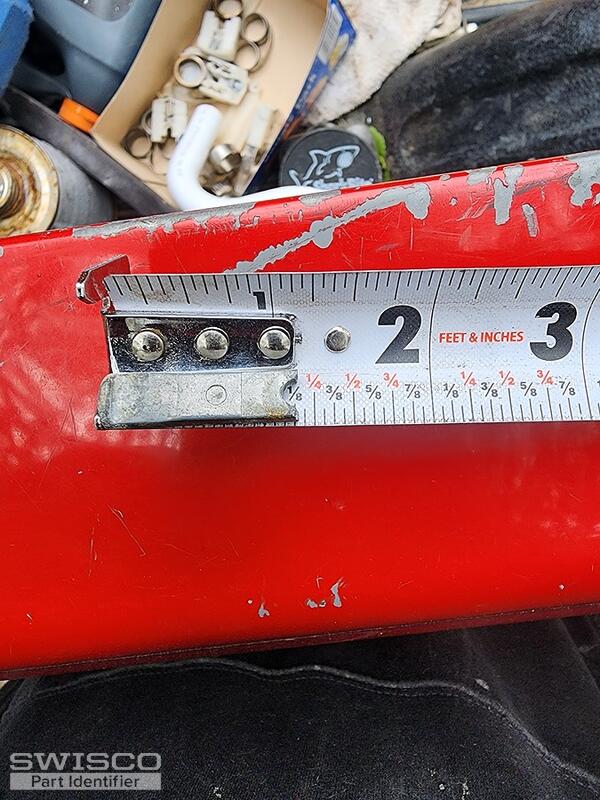

A quick learner from Window jamb says:
Thumbnail of the uploaded file named Michaelm4.jpg
Thumbnail of the uploaded file named Michaelm5.jpg
Thumbnail of the uploaded file named Michaelm.jpg
Thumbnail of the uploaded file named Michaelm3.jpg
Thumbnail of the uploaded file named Michaelm2.jpg
Profile picture of Casey
Casey from SWISCO responded:

Thanks for getting back to us. Take a look and compare the specifications of the S140-9 and S140-10 coil balance assemblies to yours. We'd be happy to research your replacement options for the pivot bar as well but we would need to see an undamaged version removed from one of the windows, as well as have you write out the dimensions, to compare to our inventory.
