Window coil balance

Handy Person from Reading, PA

Mar 30, 2024 6:41 pm

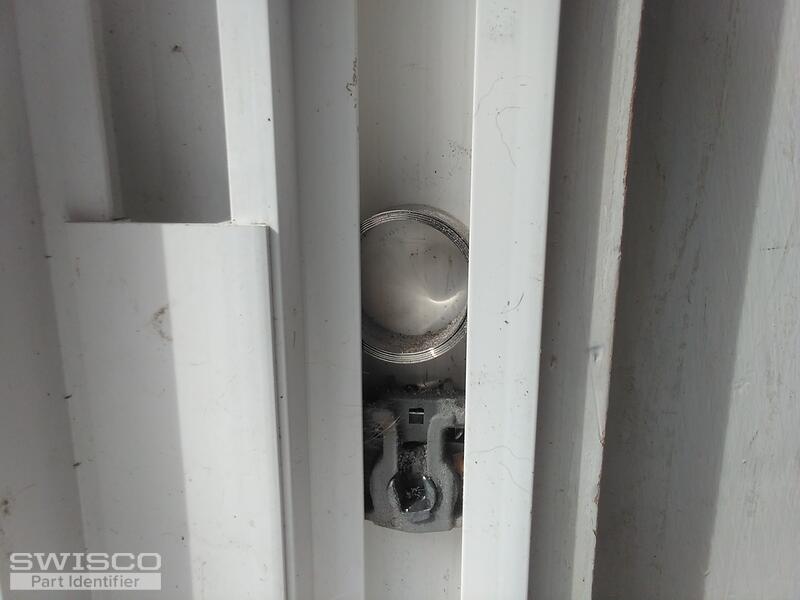

What should we reorder? Metal coil is 1/2" wide and has the numbers 246D Z with a 1 under the D and #6.5 354.The gray shoe is 1/2" deep, 1" in length and 1 1/4" wide and has Patent 4,610,108. The white coil housing is 1/2" deep, 1 11/16 in length at it's middle, and 1 1/4" wide and has the numbers Patent 0's 5,232,206; 5,365,638; 6,584,644 B2.

4 user uploaded images

1 Replies

+ Add a Comment

Bob from SWISCO

Mar 31, 2024 1:09 pm

EXPERT

Thanks for posting, and for the thorough information. The pivot shoe looks like the 15-191. For the coil balance, use the S160-6 1/2" thick 6.5 pound spring. For a new cover for a single coil, use the 15-150S. Let me know if you have any questions.
