Window coil balance

Home Owner from 04073
Jun 3, 2024 12:50 pm
My replacement double hung vinal windows broke the window coil balance. Besides the coil itself what parts do I need? There is a #8 on the side of the shoe (I think it is called).
2 Replies
Home Owner from 04073
Jun 3, 2024 1:39 pm

Hello, I need A window coil balance for my double hung window. There is a number eight on the shoe which you can see in the pictures above which part do I need. The white shoe is 1/2" thick and both the coil and shoe has a #8 on it

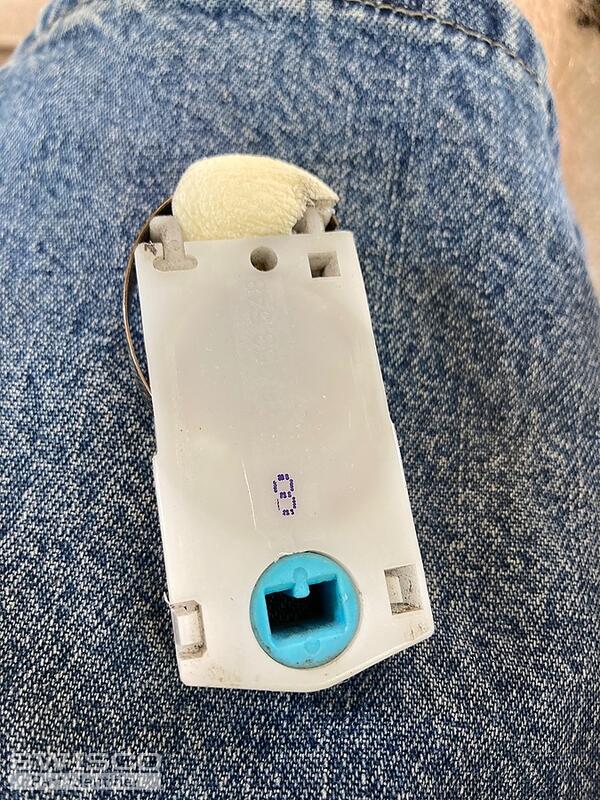

bracket and spring 8 stamped pivot shoe 8 stamped spring 8 stamped pivot shoe
4 user uploaded images
Emily
Emily from SWISCO
Jun 5, 2024 11:27 am
SWISCO
EXPERT

Hello there!

The pivot shoe shown here looks like the 15-087. Since your old spring is stamped with the number 8, I recommend the S180-08 8-pound spring. You can reuse the old mounting bracket if it isn't broken.

Detail of 15-087
Detail of 15-087
