Window coil balance

A handy person from Raleigh, NC says:
February 14, 2022

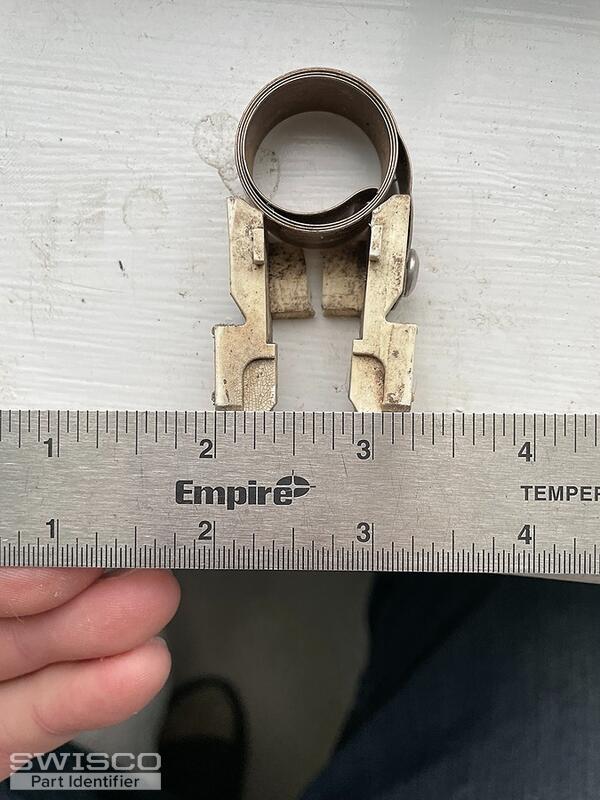

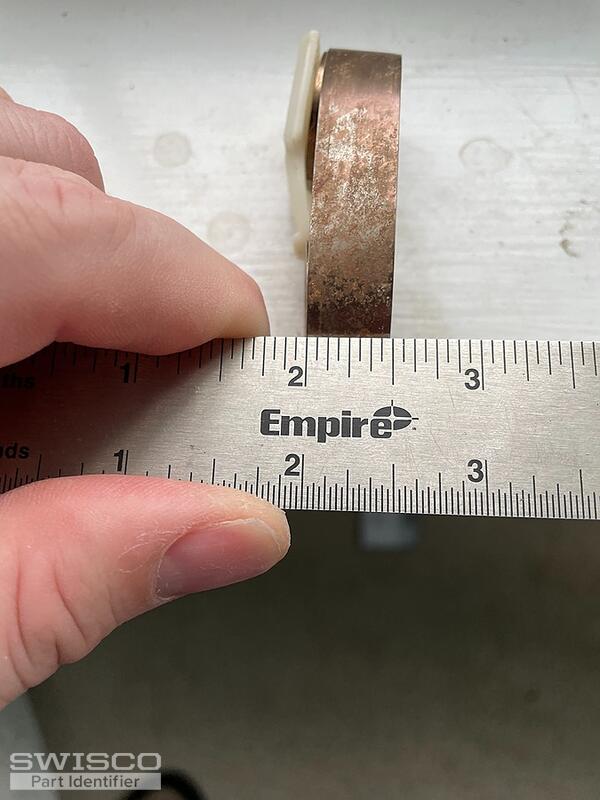

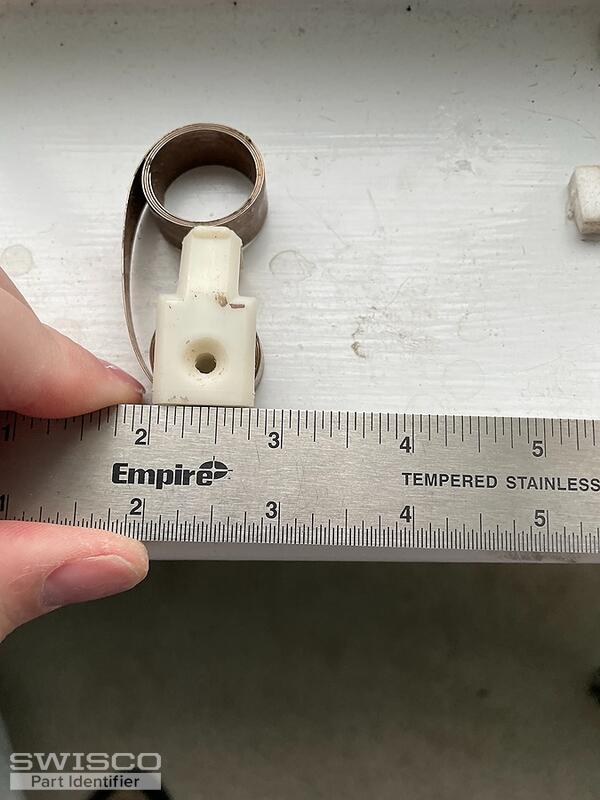

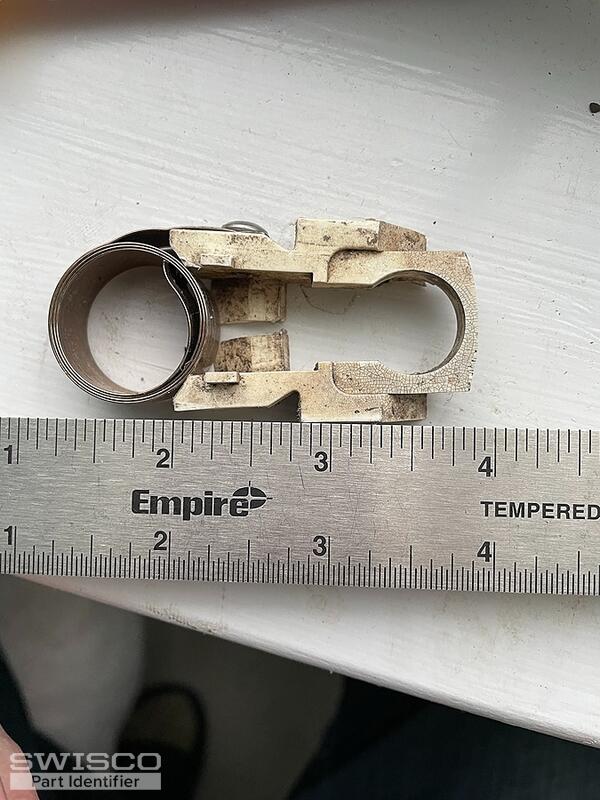

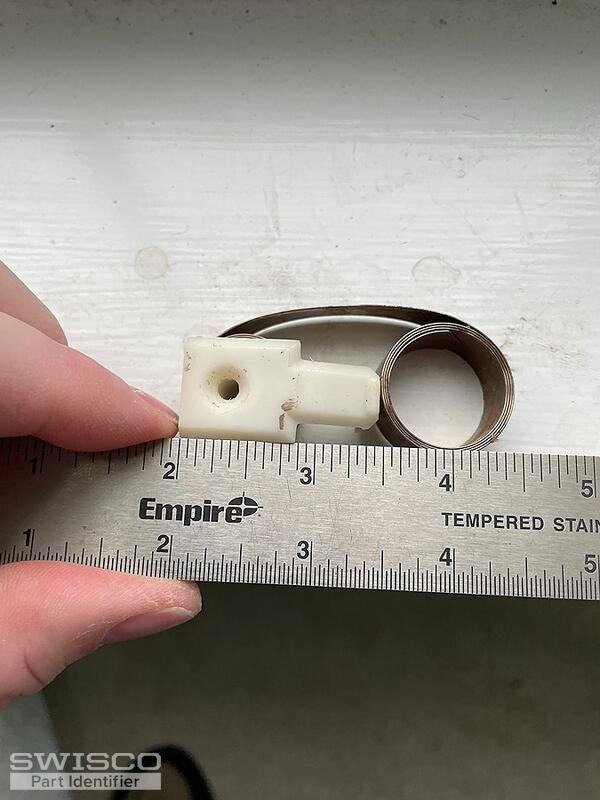

Hello, I am looking to order some replacement coil balances but am not sure which to select. Attached are pictures. Do you need any other identifying information?

Regards,

Adam

Thumbnail of the uploaded file named IMG_0710.JPEG
Thumbnail of the uploaded file named IMG_0711.JPEG
Thumbnail of the uploaded file named IMG_0712.JPEG
Thumbnail of the uploaded file named IMG_0713.JPEG
Thumbnail of the uploaded file named IMG_0714.JPEG
Profile picture of Lauren
Lauren from SWISCO responded:
February 15, 2022

Hi Adam, thank you for posting!

Your balance assembly resembles the 15-180 balance shoe that is compatible with the Series 190 coil springs. Please review and let me know if you have any questions.

Swisco.com
Coil Balance Clip
Coil Balance Clip
15-186
$5.05

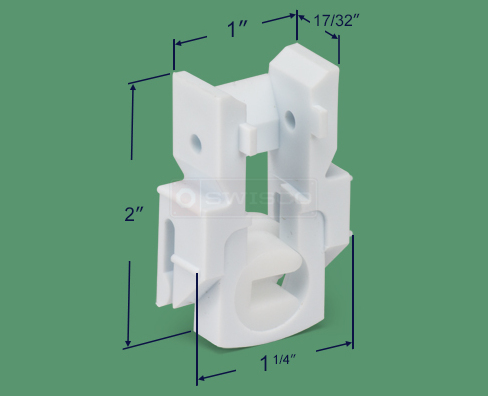

Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Balance Bushing
Balance Bushing
15-182
$1.80
