Window coil balance

Start a new Discussion

Home Owner from Pennsylvania

Apr 12, 2023 2:24 pm

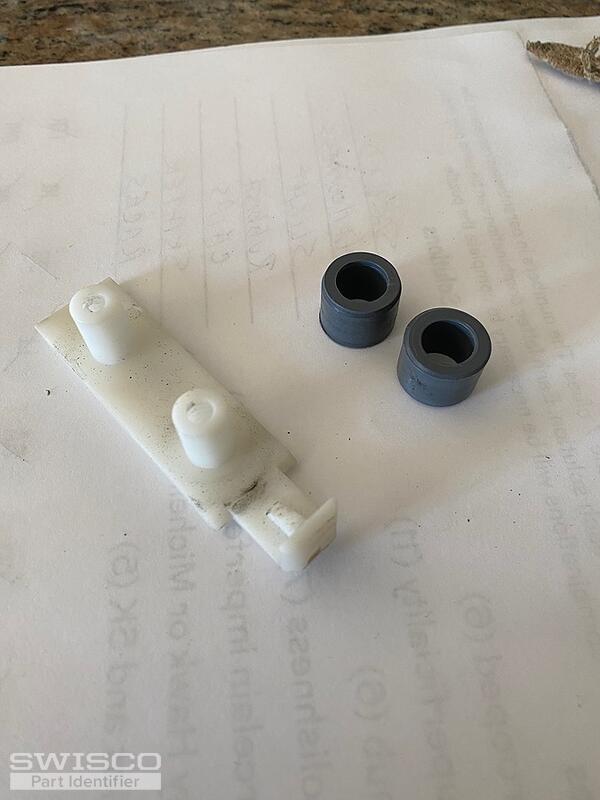

Window is from 2005/2006?springs have a #9 on them?

4 user uploaded images

2 Replies

Lauren from SWISCO

Apr 13, 2023 3:56 pm

Hello, thank you for posting,

Your balance assembly resembles the 15-180 pivot shoe that is compatible with the Series 190 coil springs. Please review the overall dimensions to confirm a good fit! If the springs are stamped with the #9, take a look at the S190-940.

For a new cover and bushings, review the 15-181 and 15-182.

Let us know if you have any additional questions!

Alternate image for 15-180
