Window coil replacement

A home owner from Michigan says:
June 30, 2021
Looking for replacement coils. Each window has two coils on each side. Only the coils are broken. Simonton windows. The sticker on the window says 705651/04. 35.5000 59.5000 DMSH. The coils say #5.5 37" PAT5232208. The coils are .5 inch wide. I have attached photos of the parts.
Thumbnail of the uploaded file named window.1.jpg
Thumbnail of the uploaded file named Window.2.jpg
Thumbnail of the uploaded file named Window.3.jpg

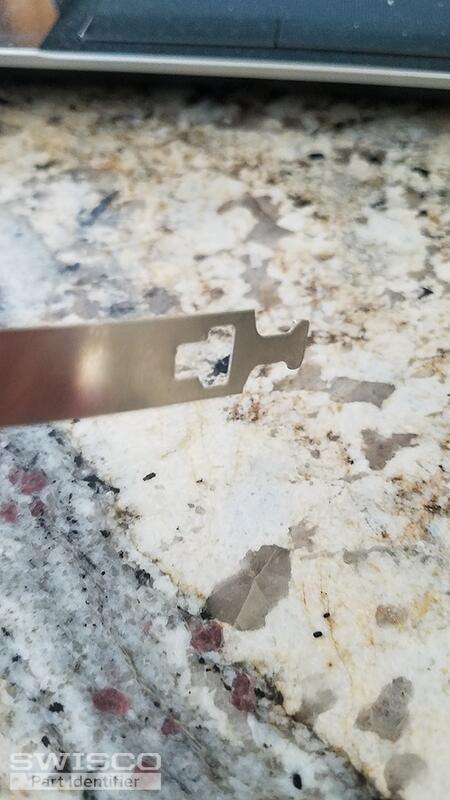

Thumbnail of the uploaded file named 20210630_123039 (1).jpg
Profile picture of Emily
Emily from SWISCO responded:
July 2, 2021

Hi there!

We'd be happy to help but we'll need to see an undamaged pivot shoe removed from your window, along with dimensions, to compare to our inventory. If we can identify the pivot shoe, that will tell us the coils and accessories that you'll need.

Thank you!
A home owner from Michigan says:
July 2, 2021

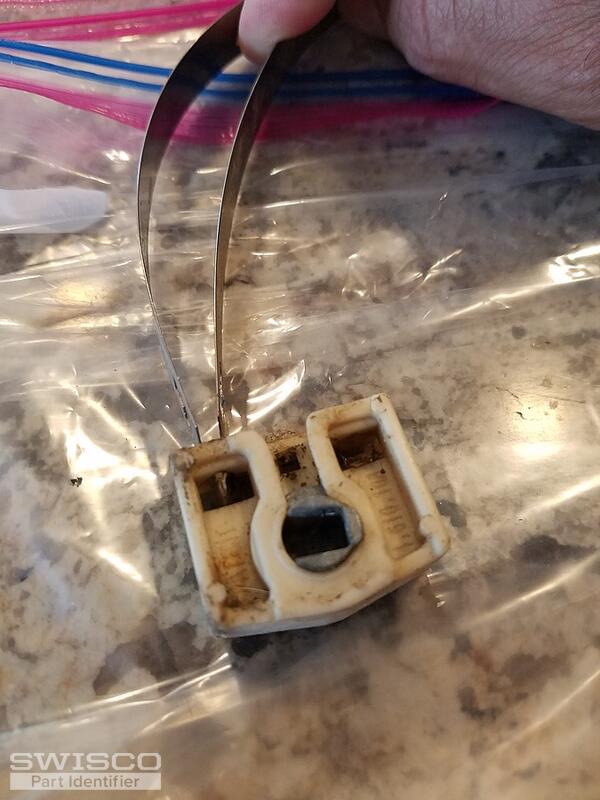

Thank you for your prompt response. The shoe is 1.25" wide and 1" high. This is a picture of the hardware from the undamaged side of the window as it was removed.
Thumbnail of the uploaded file named Shoe.jpg
Profile picture of Emily
Emily from SWISCO responded:
July 7, 2021

Thank you for the additional picture!

Take a look at our 15-111 pivot shoe which uses the Series 160 coil springs. Review our dimensions and compare them to your original hardware to see how they match up.

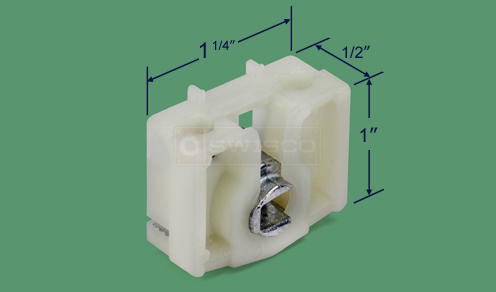

15-111 dimensions
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
