Window coil and tilt latch

Question

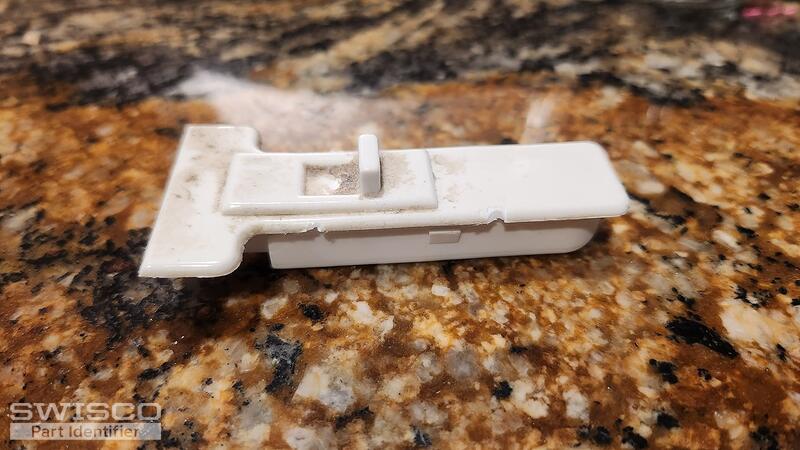

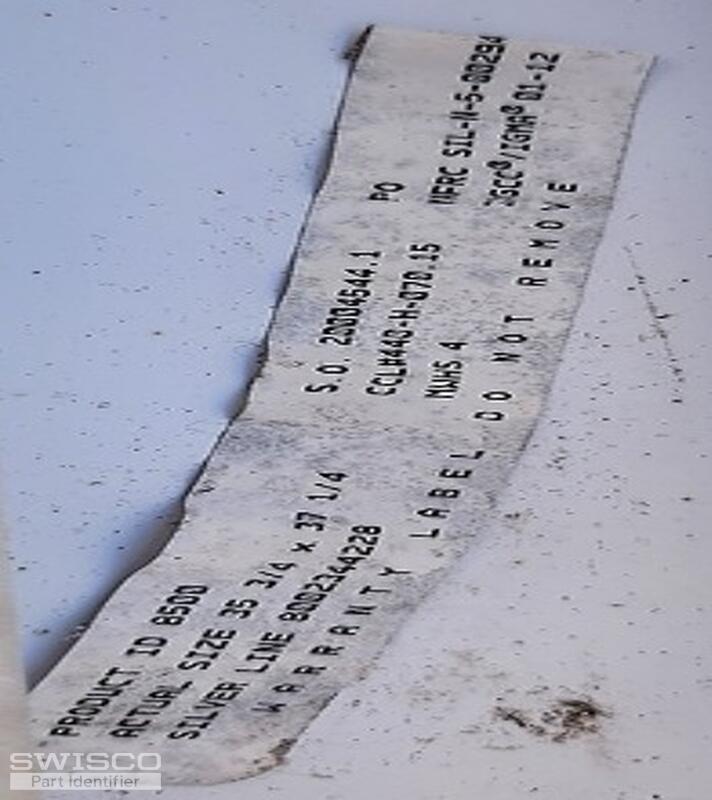

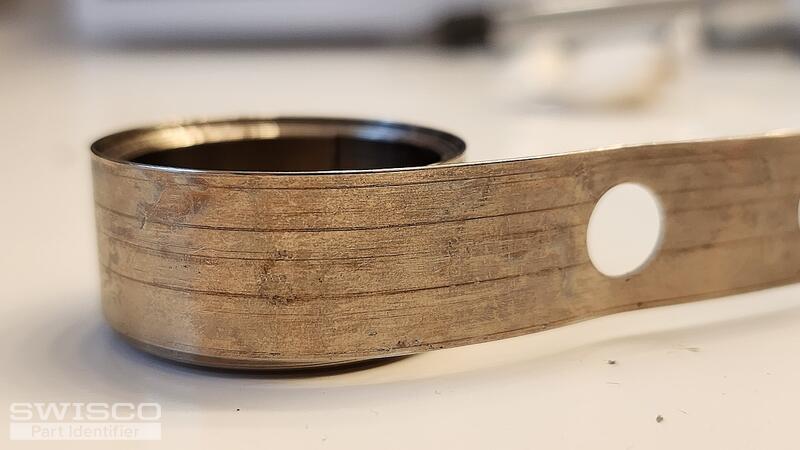

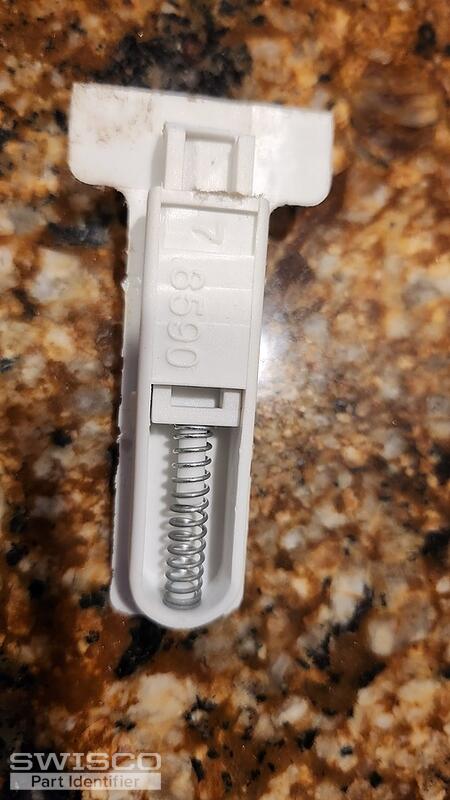

I need to replace the coil balance and tilt latch in my vinyl window. The coil snapped. The coil has 6kg imprinted on it and the coil housing has a 6. I probably should get the clear plastic mounting bracket too. Also the tilt latch broke. It looks like it's a corner latch, maybe? I'm sending photos to verify which products I need.

Lauren · Accepted Answer

Hello, thank you for posting,

Please start by reviewing the dimensions of the 15-087 pivot shoe that is compatible with the S180-6 coil spring along with the 16-031 mounting bracket.

Detail of 15-087

For the tilt latches, take a look and compare the dimensions of the 26-408 pair. Let me know what you think and if you have any additional questions!
