Window coils

Handy Person from Calgary

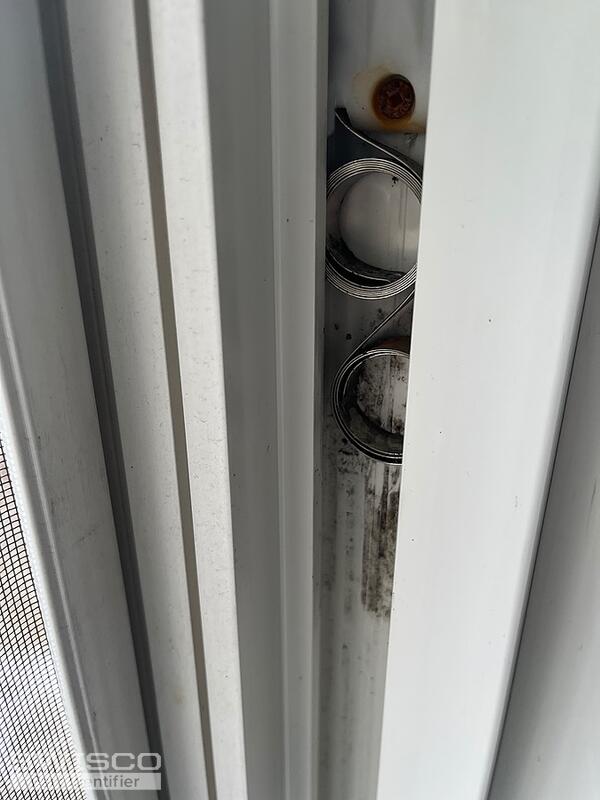

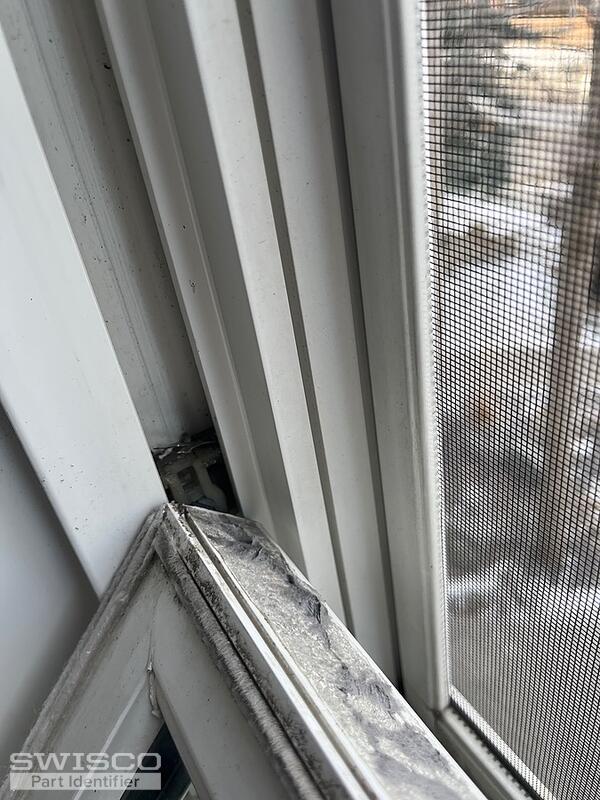

Hello. The coils on one side have snapped so I'm not sure which parts to order. Thanks.
5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

To further review, we will need to see the window sash removed where we can see a clearer image of the pivot shoe. Please also provide the thickness of the coil spring along if there are any numbers stamped into the metal. They should measure 1/2" or 3/8" thick.

From there we can determine the correct series for your window. I have related a few generic videos on the page for assistance.
